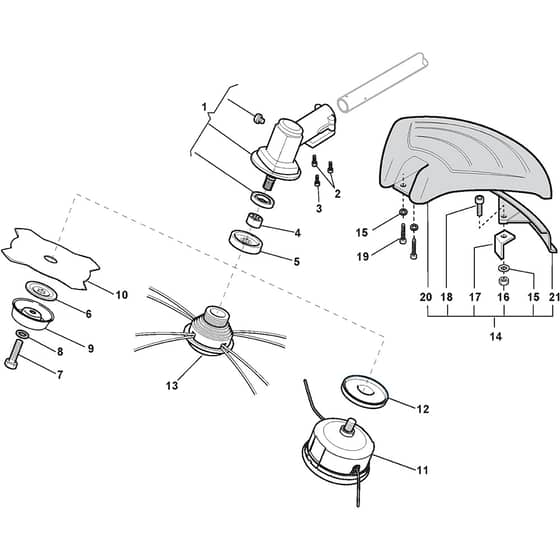

SBK 45 F - 2013 - 288322002/13 - Stiga Brushcutter Gear Case Diagram

Name: SBK 45 F - 2013 - 288322002/13 - Stiga Brushcutter Gear Case Diagram
SKU: sbk_45_f_288322002_13_gear_case-group
Price: 1.11 GBP
Availability: InStock

Part No. sbk_45_f_288322002_13_gear_case-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SBK 45 F - 2013 - 288322002/13 - Stiga Brushcutter Gear Case Diagram

Description

Stiga SBK 45 F Parts Diagram

Product Name - SBK 45 F

Model Year - 2013

Model Type - BKE 45 F

Art.N - 288322002/13

Engine Model -

	Part No.	Details
2	MO2135050 Available to backorder	Screw	£1.33 £1.11
3	MO2653090 Available to backorder	Screw	£1.39 £1.16
4	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.86 £7.38
5	MO3641640 Available to backorder	Upper Ring Nut	£10.06 £8.38
6	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
7	MO6810050 Available to backorder	Bolts M8 X 18	£1.39 £1.16
8	MO2321060 Available to backorder	Washer Not for 53 Flex	£1.33 £1.11
9	MO3615300 Available to backorder	Stabilizer Not for 53 Flex	£16.45 £13.71
10	MO1911-9262-01 In stock	3 Teeth Disc	£9.55 £7.96
11	MO1911-9229-01 Available to backorder	Nylon Head	£26.27 £21.89
12	MO3614950 Available to backorder	Plate	£1.36 £1.13
14	MO3L8563570/1 Available to backorder	Safety Cover Ass.Y	£26.32 £21.93
15	MO2312150 Available to backorder	Washer	£1.33 £1.11
16	MO2432040 Available to backorder	Nut	£1.33 £1.11
17	MO3615000 Available to backorder	Line Cutter Blade	£8.83 £7.36
18	MO2135030 Available to backorder	Screw	£1.40 £1.17
20	MO3L4563577/1 Available to backorder	Safety Cover Ass.Y	£26.32 £21.93
21	MO3L4563580/1 Available to backorder	Lower Guard Grey 7024	£26.32 £21.93
