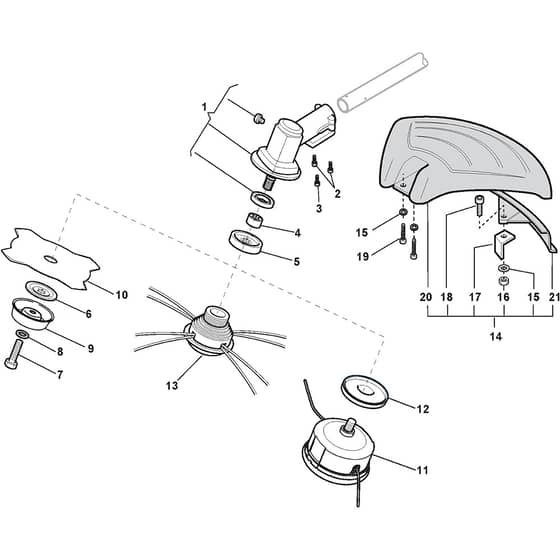

SBK 45 D - 2013 - 288321002/13 - Stiga Brushcutter Gear Case Diagram

Name: SBK 45 D - 2013 - 288321002/13 - Stiga Brushcutter Gear Case Diagram
SKU: sbk_45_d_288321002_13_gear_case-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SBK 45 D - 2013 - 288321002/13 - Stiga Brushcutter Gear Case Diagram

Description

Stiga SBK 45 D Parts Diagram

Product Name - SBK 45 D

Model Year - 2013

Model Type - BKE 45 D

Art.N - 288321002/13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO2135050 Available to backorder	Screw	£1.33 £1.11
3	MO2653090 Available to backorder	Screw	£1.40 £1.17
4	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.87 £7.39
5	MO3641640 Available to backorder	Upper Ring Nut	£10.07 £8.39
6	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
7	MO6810050 Available to backorder	Bolts M8 X 18	£1.40 £1.17
8	MO2321060 Available to backorder	Washer Not for 53 Flex	£1.33 £1.11
9	MO3615300 Available to backorder	Stabilizer Not for 53 Flex	£16.45 £13.71
10	MO1911-9262-01 Available to backorder	3 Teeth Disc	£9.30 £7.75
11	MO1911-9229-01 In stock	Nylon Head	£26.27 £21.89
12	MO3614950 Available to backorder	Plate	£1.34 £1.12
14	MO3L8563570/1 Available to backorder	Safety Cover Ass.Y	£26.32 £21.93
15	MO2312150 Available to backorder	Washer	£1.33 £1.11
16	MO2432040 Available to backorder	Nut	£1.33 £1.11
17	MO3615000 Available to backorder	Line Cutter Blade	£8.84 £7.37
18	MO2135030 Available to backorder	Screw	£1.40 £1.17
20	MO3L4563577/1 Available to backorder	Safety Cover Ass.Y	£14.76 £12.30
21	MO3L4563580/1 Available to backorder	Lower Guard Grey 7024	£6.64 £5.53
