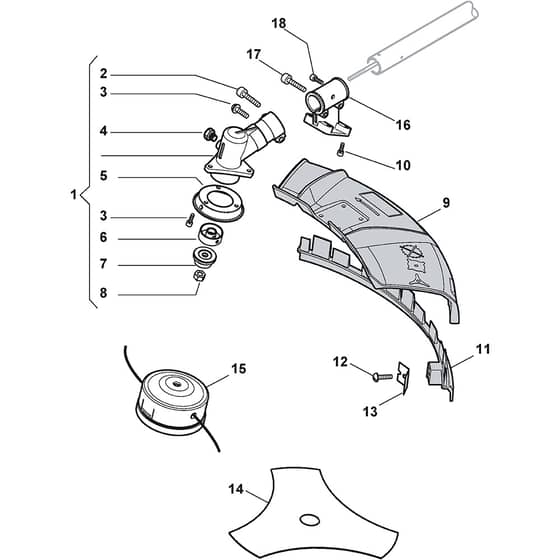

SBK 45 - 2013 - 288320002/13 - Stiga Brushcutter Gear Case Diagram

Name: SBK 45 - 2013 - 288320002/13 - Stiga Brushcutter Gear Case Diagram
SKU: sbk_45_288320002_13_gear_case-group
Price: 1.05 GBP
Availability: InStock

Part No. sbk_45_288320002_13_gear_case-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SBK 45 - 2013 - 288320002/13 - Stiga Brushcutter Gear Case Diagram

Description

Stiga SBK 45 Parts Diagram

Product Name - SBK 45

Model Year - 2013

Model Type - BKE 45

Art.N - 288320002/13

Engine Model -

	Part No.	Details
1	MO183820507/0 Available to backorder	Gear Case Assy	£88.69 £73.91
2	MO2135030 Available to backorder	Screw	£1.40 £1.17
4	MO112727794/0 Available to backorder	Screw	£1.39 £1.16
5	MO123670002/0 Available to backorder	Guard	£1.33 £1.11
6	MO123250002/0 Available to backorder	Upper Ring Nut	£5.65 £4.71
7	MO123250003/0 Available to backorder	Lower Ring Nut	£4.37 £3.64
8	MO123120015/0 Available to backorder	Nut	£1.63 £1.36
9	MO118801341/0 Available to backorder	Safety Cover. Black	£19.57 £16.31
10	MO9943-0516-16 In stock	Screw	£1.26 £1.05
12	MO112728099/1 Available to backorder	Screw	£1.63 £1.36
13	MO123311013/0 Available to backorder	Line Cutter Blade	£3.25 £2.71
14	MO1911-9262-01 In stock	3 Teeth Disc	£9.55 £7.96
15	MO383820507/1 Available to backorder	2 Hedges Nylon Head	£24.77 £20.64
16	MO123784012/0 Available to backorder	Support	£8.00 £6.67
17	MO2135050 Available to backorder	Screw	£1.33 £1.11
18	MO2135180 Available to backorder	Torx Screw M5 X 12	£1.40 £1.17
