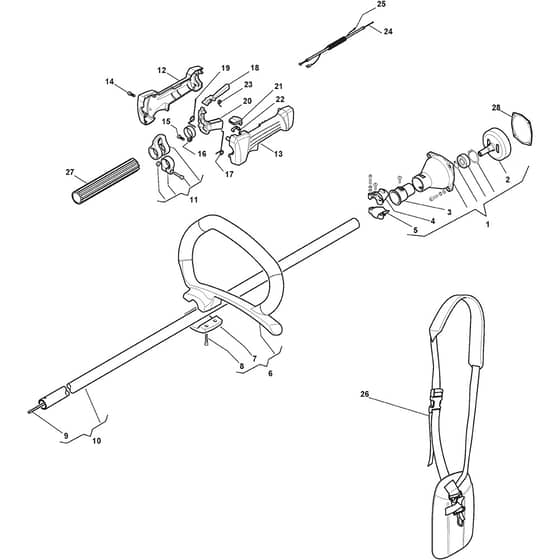

SBK 27 - 2013 - 288120002/13 - Stiga Brushcutter Handle Transmission Diagram

Name: SBK 27 - 2013 - 288120002/13 - Stiga Brushcutter Handle Transmission Diagram
SKU: sbk_27_288120002_13_handle_transmission-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SBK 27 - 2013 - 288120002/13 - Stiga Brushcutter Handle Transmission Diagram

Description

Stiga SBK 27 Parts Diagram

Product Name - SBK 27

Model Year - 2013

Model Type - BKE 27

Art.N - 288120002/13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO123050011/0 Available to backorder	Clutch Drum Assy	£15.34 £12.78
3	MO123275036/0 Available to backorder	Grommet	£2.68 £2.23
4	MO123720005/0 Available to backorder	Support	£4.78 £3.98
5	MO123720004/0 Available to backorder	Support	£4.69 £3.91
8	MO2135040 Available to backorder	Screw	£1.38 £1.15
9	MO123020038/0 Available to backorder	Transmission Shaft	£17.74 £14.78
10	MO183869073/0 Available to backorder	Assy Transm. Tube+Flex	£42.23 £35.19
11	MO183780002/0 Available to backorder	Harness Support	£3.52 £2.93
13	MO118801373/0 Available to backorder	Right Handgrip.Black	£14.59 £12.16
14	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
15	MO2135180 Available to backorder	Screw	£1.40 £1.17
16	MO118801337/0 Available to backorder	Clamp	£2.12 £1.77
17	MO118801338/0 Available to backorder	Spring	£1.69 £1.41
18	MO118801335/0 Available to backorder	Safety Lever. Red	£1.69 £1.41
19	MO118801334/0 Available to backorder	Spring	£1.61 £1.34
20	MO118801336/0 Available to backorder	Throttle Lever. Red	£2.12 £1.77
21	MO118801329/0 Available to backorder	Stop Knob.Red	£1.40 £1.17
22	MO118801330/0 Available to backorder	Stop Plate	£1.69 £1.41
23	MO118801333/0 Available to backorder	Spring	£1.33 £1.11
24	MO118801354/0 Available to backorder	Throttle Cable	£8.12 £6.77
25	MO118801328/0 Available to backorder	Stop Wire	£8.02 £6.68
26	MO118801327/0 Available to backorder	Harness	£12.67 £10.56
