SBC 80 AE - 2017-2019 - 272400088/S17 - Stiga Brushcutter Brushcutter Diagram

Description

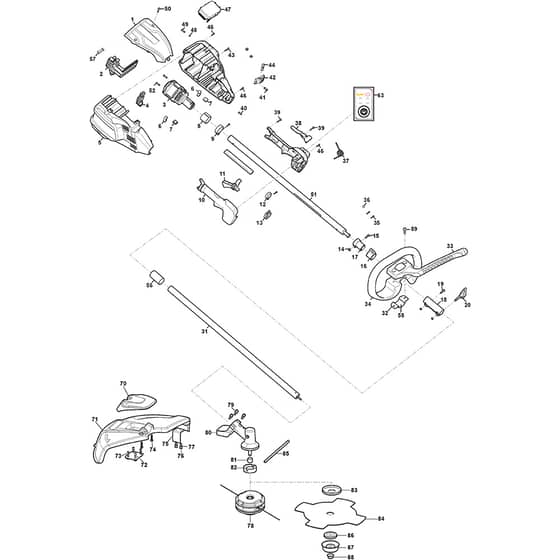

Stiga SBC 80 AE Parts Diagram

Product Name - SBC 80 AE

Model Year - 2017-2019

Model Type - BC 80 Li

Art.N - 272400088/S17

Engine Model -

	Part No.	Details
10	MO118810349/0 Available to backorder	Handle Components	£8.18 £6.82
11	MO118810379/0 Available to backorder	Switch The Trigger	£2.24 £1.87
14	MO112154330/0 In stock	Nut	£1.55 £1.29
18	MO118810309/0 Available to backorder	Tube Clamp	£11.41 £9.51
31	MO118810348/0 Available to backorder	Lower Tube Assy	£38.00 £31.67
32	MO118803270/0 Available to backorder	Clamp	£1.97 £1.64
33	MO118804128/0 Available to backorder	Front Handle Barrier	£2.62 £2.18
34	MO118803418/1 Available to backorder	Front Handle	£14.64 £12.20
35	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
38	MO118810377/0 Available to backorder	The Self-Locking	£1.84 £1.53
39	MO2132530 Available to backorder	Screw	£1.33 £1.11
41	MO118810281/0 Available to backorder	Spring	£1.14 £0.95
43	MO112728525/0 Available to backorder	Screw	£1.55 £1.29
46	MO6981116 Available to backorder	Outfit. Screws	£1.38 £1.15
47	MO118810394/0 Available to backorder	Pcb Components	£161.89 £134.91
48	MO112581200/0 Available to backorder	Grower	£1.97 £1.64
52	MO112726389/0 Available to backorder	Screw	£1.55 £1.29
70	MO118810706/0 Available to backorder	Upper Guard	£3.66 £3.05
72	MO118810314/0 Available to backorder	Protection	£1.70 £1.42
73	MO118810322/0 Available to backorder	Screw	£3.10 £2.58
74	MO118810711/0 Available to backorder	Screw	£1.20 £1.00
76	MO112728697/0 In stock	Screw	£1.55 £1.29
77	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
78	MO1911-9298-01 In stock	Trimmer Head	£24.18 £20.15
79	MO6981117 Available to backorder	Screw	£1.33 £1.11
81	MO118803326/0 Available to backorder	Washer	£1.57 £1.31
82	MO118804043/0 Available to backorder	Blade Fix Seat	£5.22 £4.35
88	MO118810426/0 Available to backorder	Blade Nut	£1.97 £1.64
