SBC 653 KF - 2018-2019 - 288422002/17 - Stiga Brushcutter Knap sack Diagram

Description

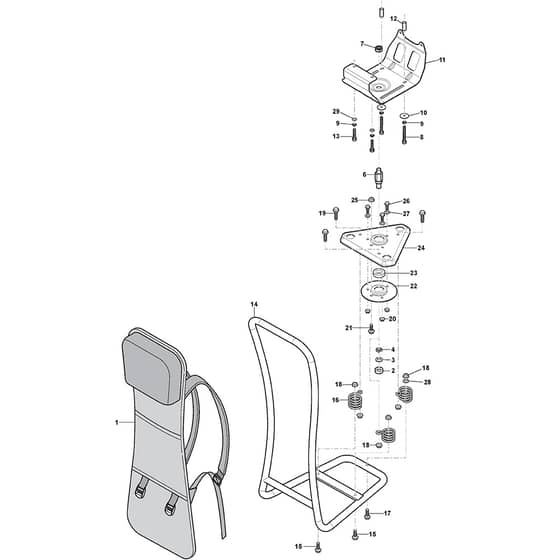

Stiga SBC 653 KF Parts Diagram

Product Name - SBC 653 KF

Model Year - 2018-2019

Model Type - SBC 653 KF

Art.N - 288422002/17

Engine Model -

	Part No.	Details
1	MO118802517/0 Available to backorder	Backpack	£63.34 £52.78
3	MO112521360/0 In stock	Washer	£1.55 £1.29
4	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
6	MO118804854/0 Available to backorder	Axis Of Rotation	£3.38 £2.82
7	MO112156602/0 In stock	Nut	£1.39 £1.16
9	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
10	MO112523020/0 In stock	Washer	£1.55 £1.29
11	MO118802727/0 Available to backorder	Black Base	£36.59 £30.49
14	MO118804823/0 Available to backorder	Knap Sack Frame Ass.Y	£33.79 £28.16
16	MO118804824/0 Available to backorder	Spring	£1.84 £1.53
17	MO112727801/0 Available to backorder	Screw	£1.63 £1.36
19	MO112735699/0 Available to backorder	Screw	£1.39 £1.16
20	MO9739-0531-22 Available to backorder	Nut	£2.22 £1.85
21	MO9959-0616-16 Available to backorder	Screw	£1.55 £1.29
22	MO118804825/0 Available to backorder	Bearing Flange	£5.34 £4.45
23	MO119216048/0 In stock	Bearing	£18.31 £15.26
24	MO118804826/0 Available to backorder	Plate	£14.48 £12.07
25	MO112292102/0 In stock	Nut	£1.70 £1.42
26	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
27	MO112521320/0 Available to backorder	Washer	£1.63 £1.36
28	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
