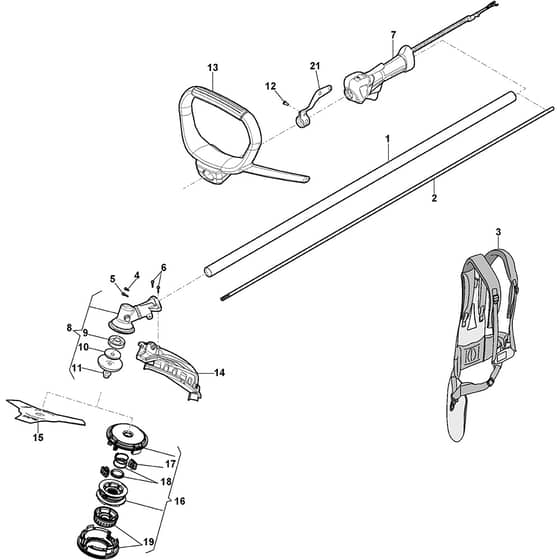

SBC 646 - 2019-2022 - 283420008/ST1 - Stiga Brushcutter Transmission Diagram

Name: SBC 646 - 2019-2022 - 283420008/ST1 - Stiga Brushcutter Transmission Diagram
SKU: sbc_646_283420008_st1_transmission-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SBC 646 - 2019-2022 - 283420008/ST1 - Stiga Brushcutter Transmission Diagram

Description

Stiga SBC 646 Parts Diagram

Product Name - SBC 646

Model Year - 2019-2022

Model Type - BC 646

Art.N - 283420008/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118805081/0 Available to backorder	Transmission Pipe	£60.54 £50.45
2	MO118805086/0 Available to backorder	Drive Shaft	£40.82 £34.02
3	MO1911-9259-01 Available to backorder	Double Harness	£58.54 £48.78
5	MO2132180 Available to backorder	Screw	£1.33 £1.11
6	MO112728721/0 Available to backorder	Screw	£1.82 £1.52
7	MO118805087/0 Available to backorder	Rear Handle Kit	£32.38 £26.98
8	MO118805089/0 Available to backorder	Gear Case Assy	£122.46 £102.05
9	MO118805093/0 Available to backorder	Upper Flange	£9.16 £7.63
10	MO118805094/0 Available to backorder	Lower Flange	£5.48 £4.57
11	MO2452090 In stock	Nut	£5.35 £4.46
12	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
13	MO118805088/0 Available to backorder	Front Handle Kit	£27.74 £23.12
14	MO118805346/0 Available to backorder	Safety Cover Assy	£17.04 £14.20
15	MO1911-9263-01 Available to backorder	3T Blade	£13.32 £11.10
16	MO1911-9227-01 In stock	Line Cutter Head	£19.63 £16.36
17	MO118804890/0 Available to backorder	Line Retainer	£5.35 £4.46
18	MO118805262/0 Available to backorder	Spring	£5.48 £4.57
19	MO118805264/0 Available to backorder	Cover + Knob	£11.12 £9.27
21	MO118805573/0 Available to backorder	Harness Connector	£2.68 £2.23
