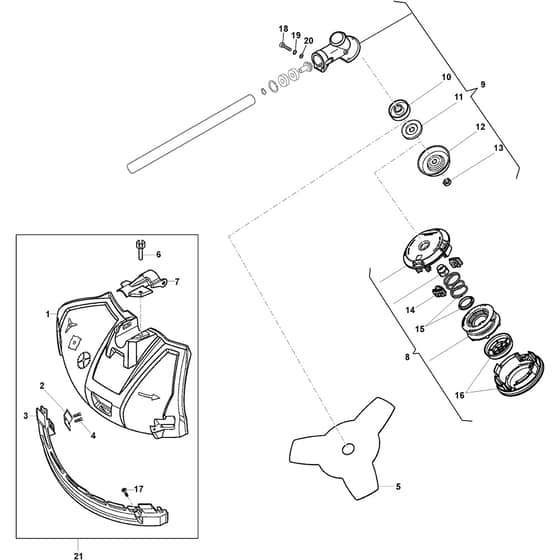

SBC 645 KF - 2018-2019 - 288322002/17 - Stiga Brushcutter Gear Case Diagram

Name: SBC 645 KF - 2018-2019 - 288322002/17 - Stiga Brushcutter Gear Case Diagram
SKU: sbc_645_kf_288322002_17_gear_case-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SBC 645 KF - 2018-2019 - 288322002/17 - Stiga Brushcutter Gear Case Diagram

Description

Stiga SBC 645 KF Parts Diagram

Product Name - SBC 645 KF

Model Year - 2018-2019

Model Type - SBC 645 KF

Art.N - 288322002/17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118802323/1 Available to backorder	Safety Cover	£24.49 £20.41
2	MO118802578/0 Available to backorder	Line Cutter Blade	£2.95 £2.46
3	MO118802580/1 Available to backorder	Guard	£7.88 £6.57
4	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
5	MO1911-9148-01 Available to backorder	3T Blade	£20.40 £17.00
6	MO118802579/0 Available to backorder	Screw	£4.37 £3.64
7	MO118803481/0 Available to backorder	Plate	£5.35 £4.46
8	MO1911-9227-02 Available to backorder	Line Cutter Head BUMP-N-Work	£20.87 £17.39
9	MO118803482/0 Available to backorder	Gear Case Assy	£65.18 £54.32
10	MO118803485/0 Available to backorder	Plate	£12.86 £10.72
11	MO118803484/0 Available to backorder	Plate	£6.20 £5.17
12	MO118803483/0 Available to backorder	Cover	£7.19 £5.99
13	MO2452090 In stock	Nut	£5.35 £4.46
14	MO118804890/0 Available to backorder	Line Retainer	£5.35 £4.46
15	MO118804889/0 Available to backorder	Spring	£4.22 £3.52
16	MO118804888/0 Available to backorder	Cover + Knob	£14.35 £11.96
17	MO118804822/0 Available to backorder	Screw	£1.69 £1.41
18	MO2132180 Available to backorder	Screw	£1.33 £1.11
19	MO112582100/0 Available to backorder	Grower	£1.55 £1.29
20	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
21	MO118805032/0 Available to backorder	Safety Guard Assembly	£50.68 £42.23
