SBC 645 KD - 2014-2019 - 288321002/14 - Stiga Brushcutter Engine 02 Diagram

Name: SBC 645 KD - 2014-2019 - 288321002/14 - Stiga Brushcutter Engine 02 Diagram
SKU: sbc_645_kd_288321002_14_engine_02-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SBC 645 KD - 2014-2019 - 288321002/14 - Stiga Brushcutter Engine 02 Diagram

Description

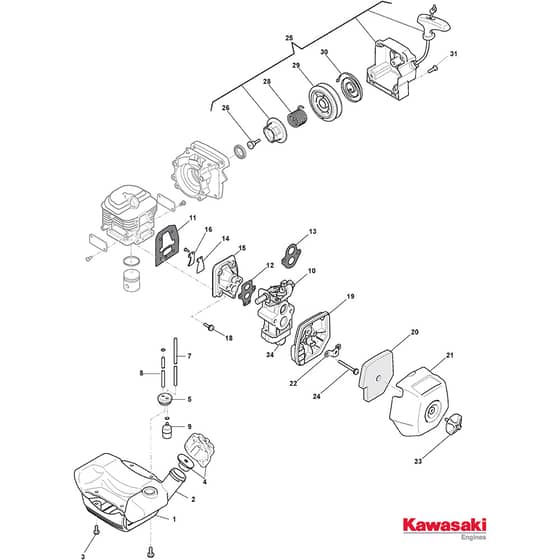

Stiga SBC 645 KD Parts Diagram

Product Name - SBC 645 KD

Model Year - 2014-2019

Model Type - SBC 645 KD

Art.N - 288321002/14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118801857/0 Available to backorder	Tank Support	£8.90 £7.42
2	MO118801892/0 Available to backorder	Fuel Tank	£62.23 £51.86
4	MO118801957/0 Available to backorder	Oil Cap	£37.85 £31.54
5	MO118801926/0 In stock	Grommet	£5.64 £4.70
7	MO118801949/0 Available to backorder	Fuel Line	£3.92 £3.27
8	MO118801954/0 Available to backorder	Tube	£10.60 £8.83
9	MO183520004/0 Available to backorder	Intake Filter	£18.74 £15.62
10	MO118801827/0 Available to backorder	Carburetor	£260.44 £217.03
11	MO118801973/0 Available to backorder	Cylinder Gasket	£9.38 £7.82
12	MO118801967/0 Available to backorder	Carburetor Gasket	£2.96 £2.47
13	MO118801971/0 Available to backorder	Gasket	£3.10 £2.58
14	MO118801791/0 Available to backorder	Breather Valve Ass.Y	£11.08 £9.23
15	MO118801832/0 Available to backorder	Insulator	£17.74 £14.78
16	MO118801854/0 Available to backorder	Stopper	£2.18 £1.82
19	MO118801765/0 Available to backorder	Air Cleaner Base	£16.55 £13.79
20	MO118801769/0 Available to backorder	Air Filter	£8.02 £6.68
21	MO118801785/0 Available to backorder	Black Filter Cover	£7.61 £6.34
22	MO118801835/0 Available to backorder	Baffle From 01-9-2017	£3.64 £3.03
23	MO118801939/0 Available to backorder	Screw	£7.88 £6.57
25	MO118801878/0 Available to backorder	Starter Assy Black	£91.25 £76.04
26	MO118801945/0 Available to backorder	Screw	£2.26 £1.88
28	MO118801998/0 Available to backorder	Spring	£5.00 £4.17
29	MO118801902/0 Available to backorder	Starter Pulley	£17.84 £14.87
30	MO118801937/0 Available to backorder	Spring	£21.92 £18.27
31	MO2135030 Available to backorder	Screw	£1.40 £1.17
34	MO118805313/0 Available to backorder	Primer Bulb [Kawasaki]	£8.45 £7.04
