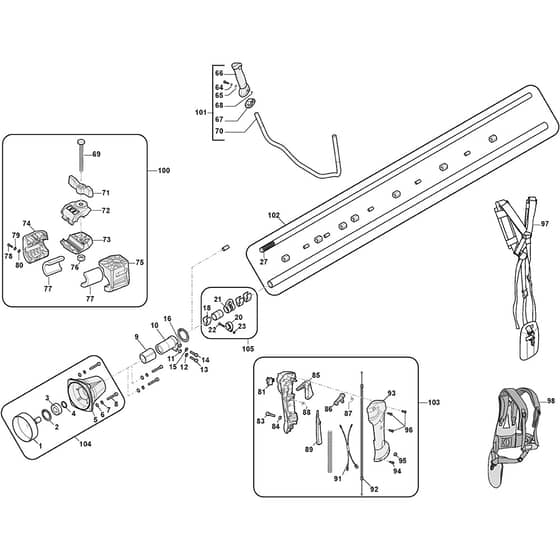

SBC 643 KD - 2014-2019 - 288321012/14 - Stiga Brushcutter Handle Transmission Diagram

Description

Stiga SBC 643 KD Parts Diagram

Product Name - SBC 643 KD

Model Year - 2014-2019

Model Type - SBC 643 KD

Art.N - 288321012/14

Engine Model -

	Part No.	Details
1	MO118802495/0 Available to backorder	Clutch Drum	£16.34 £13.62
2	MO112610800/0 In stock	Seeger	£1.70 £1.42
3	MO119216048/0 In stock	Bearing	£18.31 £15.26
4	MO112609200/0 Available to backorder	Seeger	£1.63 £1.36
5	MO118805143/0 Available to backorder	Output Block	£62.16 £51.80
7	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
8	MO2132180 Available to backorder	Screw	£1.33 £1.11
9	MO118803487/0 Available to backorder	Bumper	£3.10 £2.58
10	MO118803488/0 Available to backorder	Clamping Sleeves	£4.24 £3.53
11	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
105	MO118805144/0 Available to backorder	Ring Holder Assembly	£9.58 £7.98
