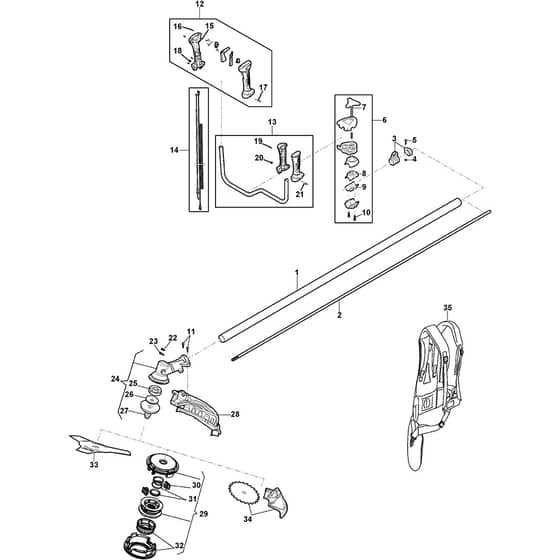

SBC 636 D - 2020-2022 - 283321008/ST1 - Stiga Brushcutter Transmission Diagram

Description

Stiga SBC 636 D Parts Diagram

Product Name - SBC 636 D

Model Year - 2020-2022

Model Type - BC 636 D

Art.N - 283321008/ST1

Engine Model -

	Part No.	Details
1	MO118805081/0 Available to backorder	Transmission Pipe	£60.54 £50.45
2	MO118805086/0 Available to backorder	Drive Shaft	£40.82 £34.02
3	MO118804065/0 Available to backorder	Harness Support	£1.39 £1.16
5	MO112760475/0 Available to backorder	Screw	£1.97 £1.64
6	MO118803987/1 In stock	Handle Support	£19.66 £16.38
8	MO118804072/0 Available to backorder	Upper Handgrip Support	£1.39 £1.16
9	MO118804075/0 Available to backorder	Lower Handgrip Support	£1.39 £1.16
10	MO2132180 Available to backorder	Screw	£1.33 £1.11
11	MO112728721/0 Available to backorder	Screw	£1.84 £1.53
12	MO118805117/0 Available to backorder	Right Handle Kit	£17.60 £14.67
13	MO118805118/0 Available to backorder	Left Handle Kit	£32.38 £26.98
14	MO118805119/0 Available to backorder	Cables Kit	£11.26 £9.38
16	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
17	MO2135120 Available to backorder	Screw	£1.39 £1.16
18	MO112154330/0 In stock	Nut	£1.55 £1.29
19	MO112727356/0 Available to backorder	Screw	£1.87 £1.56
22	MO112727796/0 Available to backorder	Screw	£1.63 £1.36
24	MO118805089/0 Available to backorder	Gear Case Assy	£122.46 £102.05
25	MO118805093/0 Available to backorder	Upper Flange	£9.16 £7.63
26	MO118805094/0 Available to backorder	Lower Flange	£5.48 £4.57
35	MO1911-9259-01 Available to backorder	Double Harness Elite	£58.54 £48.78
