SBC 635 KD - 2014-2019 - 288221002/14 - Stiga Brushcutter Engine 02 Diagram

Description

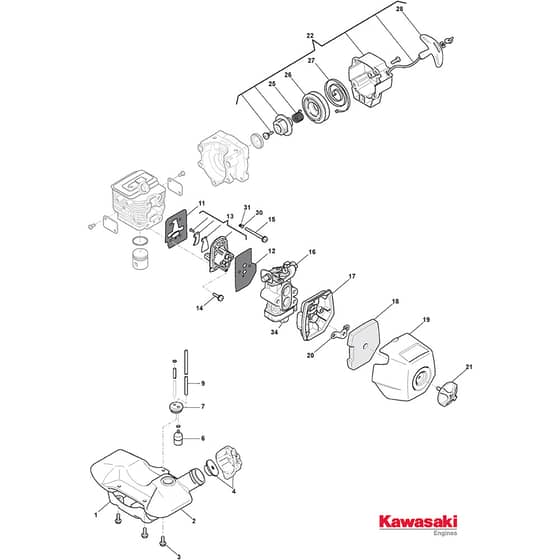

Stiga SBC 635 KD Parts Diagram

Product Name - SBC 635 KD

Model Year - 2014-2019

Model Type - SBC 635 KD

Art.N - 288221002/14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO118801891/0 Available to backorder	Fuel Tank	£49.26 £41.05
4	MO118801957/0 Available to backorder	Oil Cap	£37.85 £31.54
6	MO183520004/0 Available to backorder	Intake Filter	£18.74 £15.62
7	MO118801926/0 In stock	Grommet	£5.64 £4.70
9	MO118801950/0 Available to backorder	Fuel Line	£3.64 £3.03
11	MO118801970/0 Available to backorder	Cylinder Gasket	£4.22 £3.52
12	MO118801966/0 Available to backorder	Carburetor Gasket	£3.55 £2.96
13	MO118801789/0 Available to backorder	Breather Valve Ass.Y	£77.09 £64.24
14	MO2135030 Available to backorder	Screw	£1.40 £1.17
15	MO9950-0570-12 Available to backorder	Screw	£2.96 £2.47
16	MO118801826/0 Available to backorder	Carburetor	£247.48 £206.23
17	MO118801764/0 Available to backorder	Air Cleaner Base	£16.30 £13.58
18	MO118801768/0 Available to backorder	Air Filter	£6.41 £5.34
19	MO118801784/0 Available to backorder	Yellow Filter Cover	£14.15 £11.79
20	MO118801835/0 Available to backorder	Baffle From 01-9-2017	£3.64 £3.03
21	MO118801939/0 Available to backorder	Screw	£7.88 £6.57
22	MO118801877/0 Available to backorder	Starter Assy Black	£71.42 £59.52
25	MO118801936/0 Available to backorder	Spring	£3.95 £3.29
26	MO118801901/0 Available to backorder	Starter Pulley	£16.90 £14.08
27	MO118801931/0 Available to backorder	Spring	£24.64 £20.53
28	MO118801859/0 Available to backorder	Starter Handle	£11.69 £9.74
30	MO2312020 Available to backorder	Washer	£1.33 £1.11
31	MO2330020 Available to backorder	Washer	£1.40 £1.17
34	MO118805313/0 Available to backorder	Primer Bulb [Kawasaki]	£8.45 £7.04
