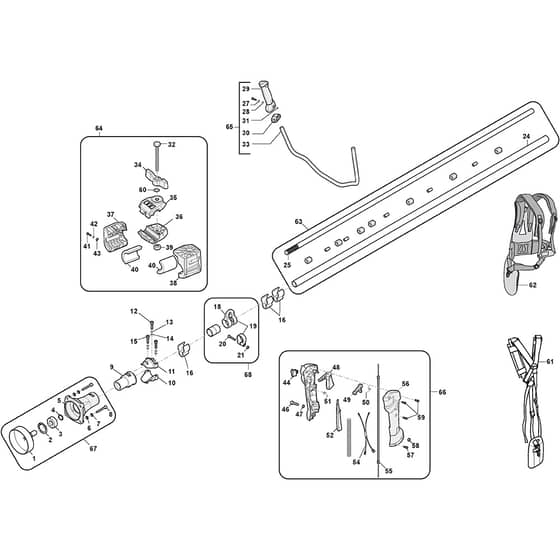

Stiga SBC 627 KD Parts Diagram

Product Name - SBC 627 KD

Model Year - 2014-2019

Model Type - SBC 627 KD

Art.N - 288121002/14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118802459/0 Available to backorder	Clutch Drum	£14.33 £11.94
2	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
3	MO119216048/0 In stock	Bearing	£18.31 £15.26
4	MO112609200/0 Available to backorder	Seeger	£1.55 £1.29

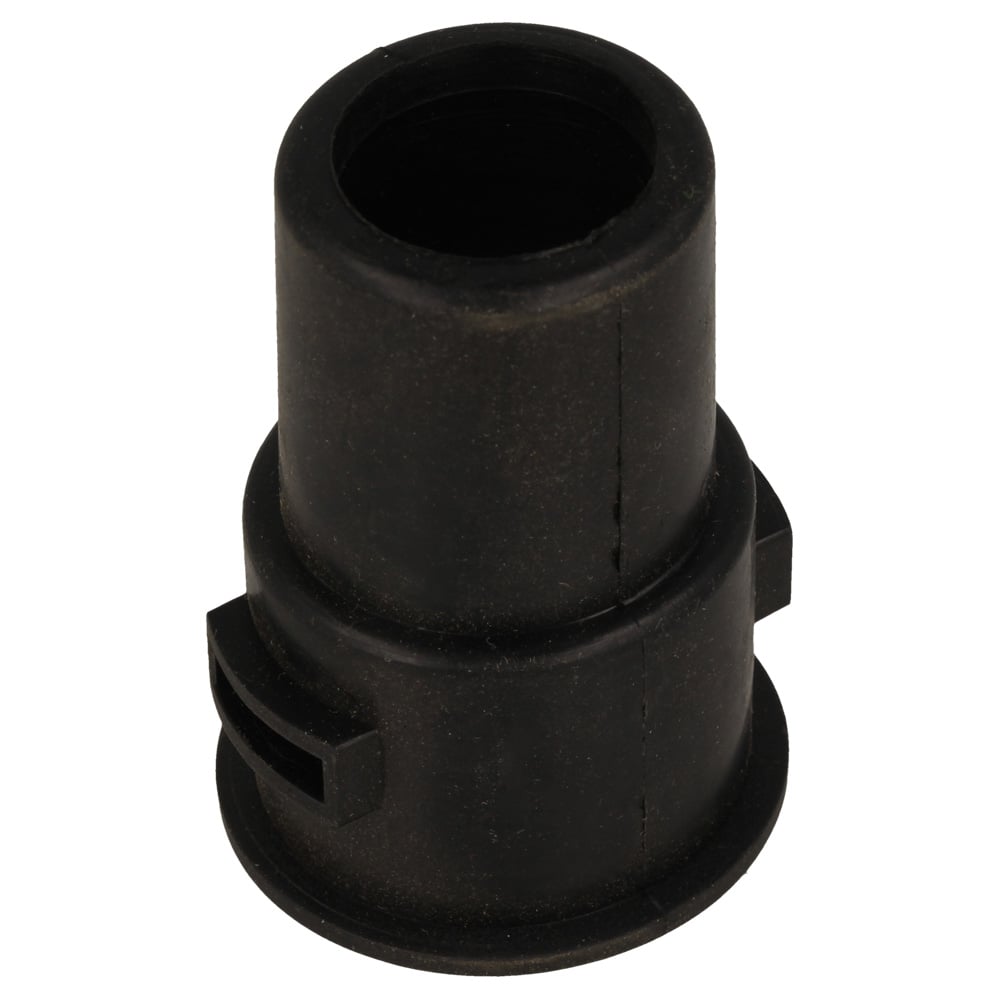

9	MO118802582/0 Available to backorder	Reduction	£3.79 £3.16

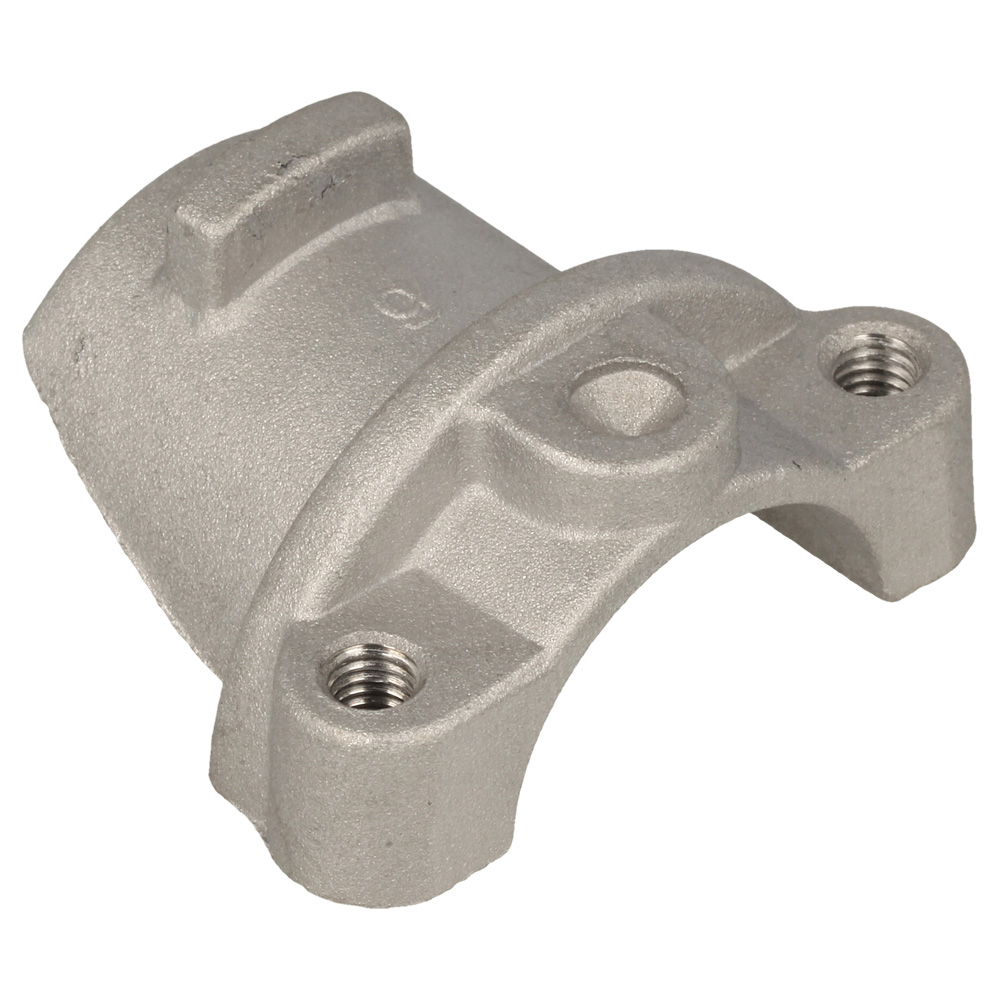

10	MO118802584/0 Available to backorder	Lower Support	£3.10 £2.58

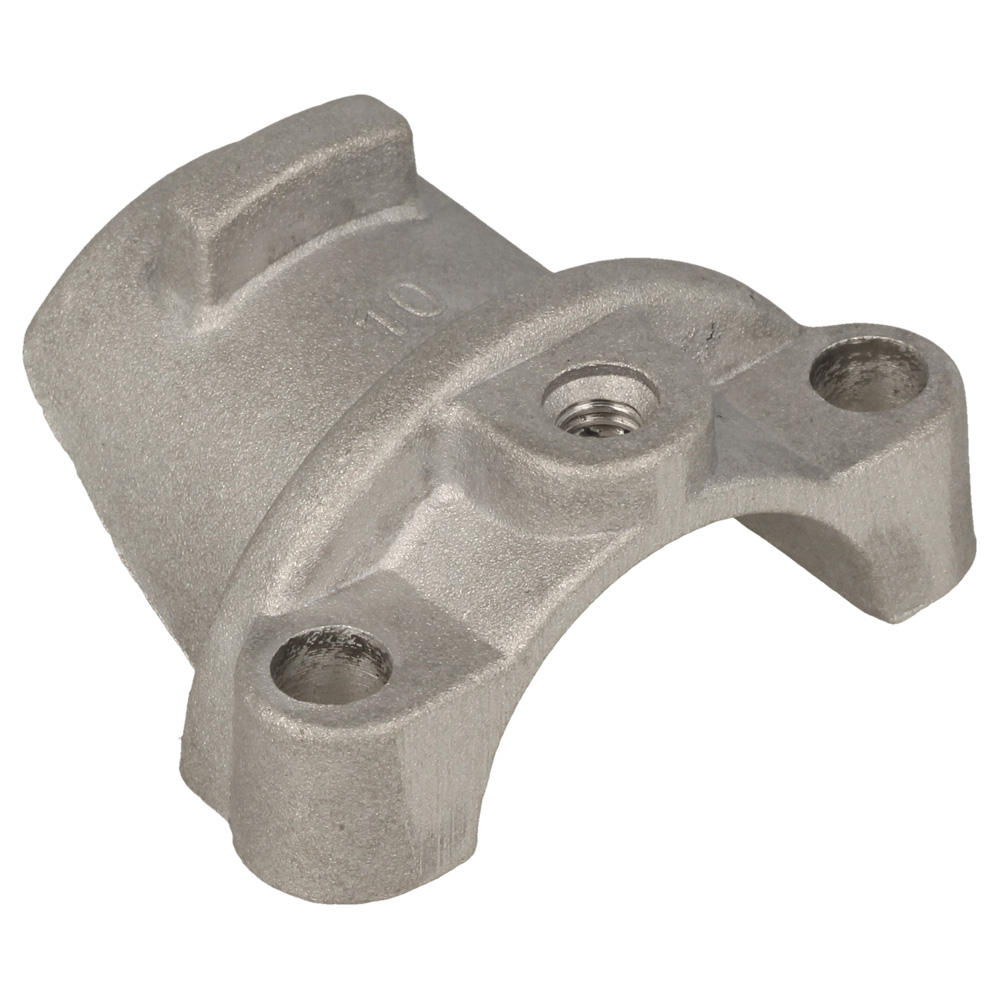

11	MO118802583/0 Available to backorder	Upper Support	£3.10 £2.58
12	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
16	MO118802596/0 Available to backorder	Wire Buckle	£1.69 £1.41
18	MO118802585/0 Available to backorder	Harness Support	£3.38 £2.82
19	MO118802587/0 Available to backorder	Harness Support	£3.79 £3.16
20	MO112727791/0 Available to backorder	Screw	£1.55 £1.29
25	MO118802457/0 Available to backorder	Transmission Shaft	£13.58 £11.32
29	MO118802563/0 Available to backorder	Left Handgrip	£16.46 £13.72
30	MO118802564/0 Available to backorder	Handgrip Support	£3.10 £2.58
32	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
34	MO118802489/0 Available to backorder	Knob	£3.10 £2.58
35	MO118802485/0 Available to backorder	Handle Cover	£6.20 £5.17
36	MO118802486/0 Available to backorder	Lower Handle Cover	£6.20 £5.17
37	MO118802488/0 Available to backorder	Handlebar Holder. Right	£18.16 £15.13
38	MO118802487/0 Available to backorder	Handlebar Holder. Light	£10.56 £8.80
39	MO112293200/0 In stock	Nut	£1.55 £1.29
40	MO118802490/0 Available to backorder	Rubber Pad	£3.67 £3.06
41	MO2132550 Available to backorder	Screw	£1.40 £1.17
44	MO118800202/0 Available to backorder	Switch	£1.82 £1.52
46	MO2122270 Available to backorder	Screw	£1.33 £1.11
47	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
48	MO118802558/0 Available to backorder	Trigger	£1.55 £1.29

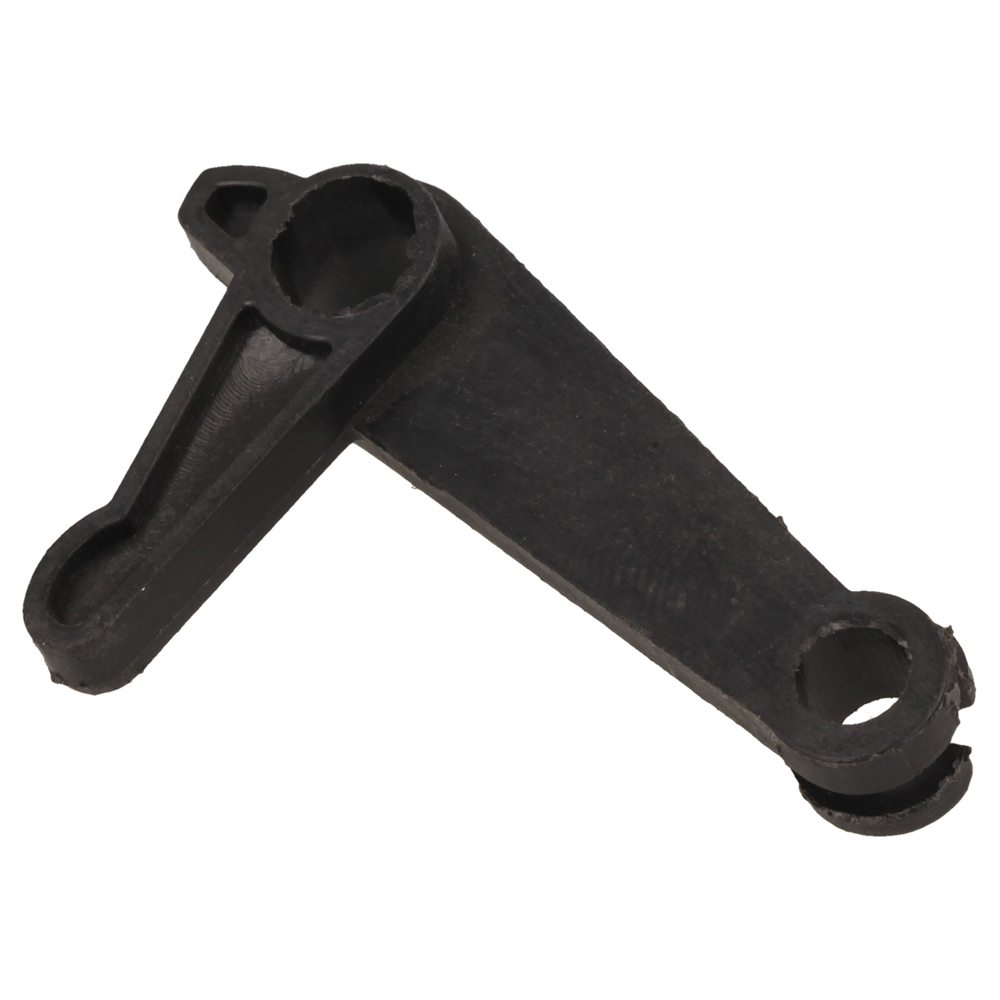

49	MO118802559/0 Available to backorder	Adjustment Lever	£1.55 £1.29

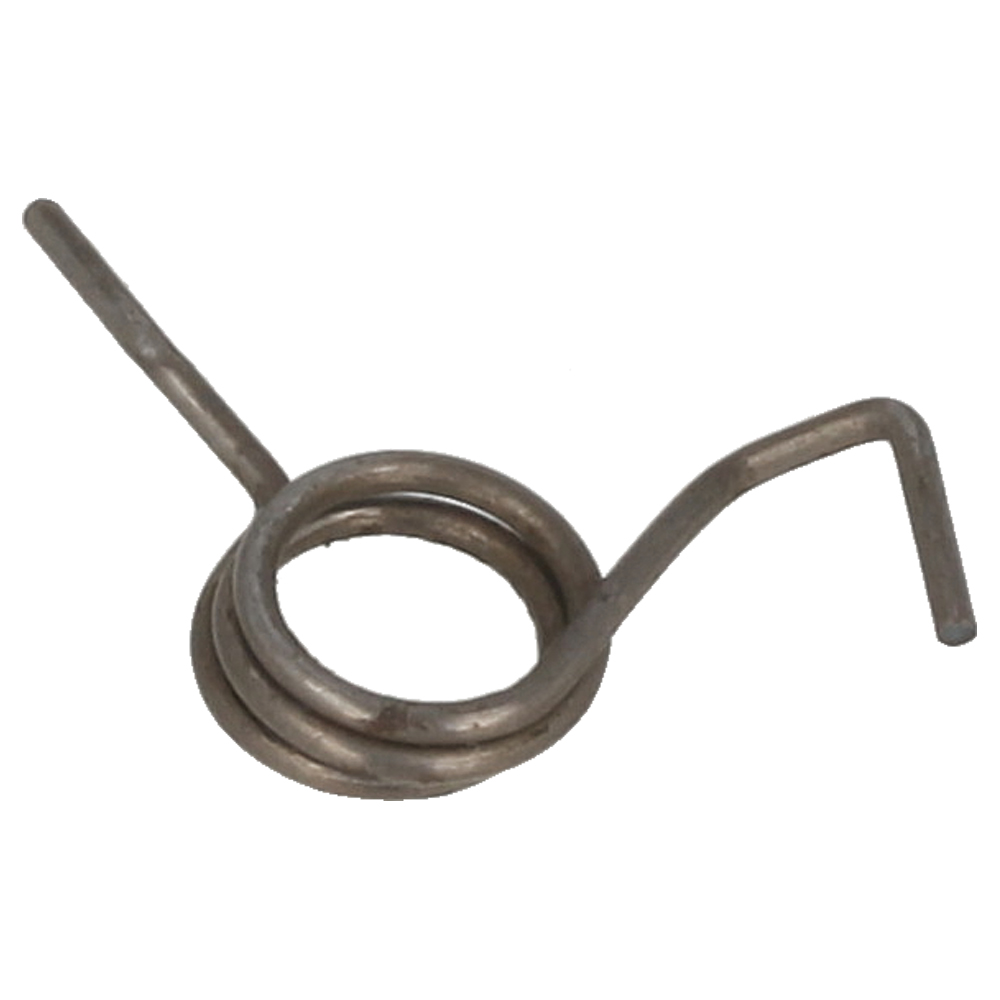

50	MO118802560/0 Available to backorder	Torsion Spring	£1.82 £1.52
51	MO118802562/0 Available to backorder	Torsion Spring	£1.69 £1.41
52	MO118802561/0 Available to backorder	Safety Lever	£1.69 £1.41
54	MO118802598/0 Available to backorder	Earth Cable	£5.48 £4.57

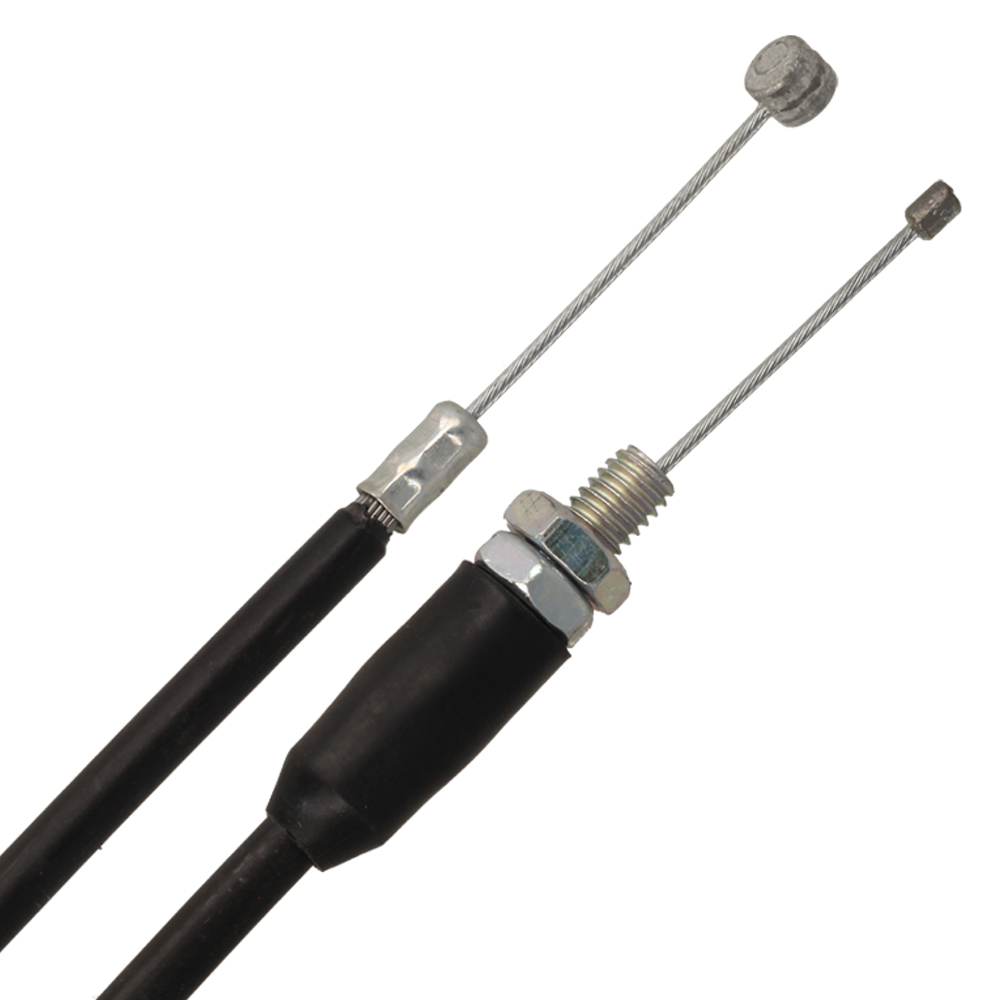

55	MO118802483/0 Available to backorder	Throttle Cable	£6.76 £5.63

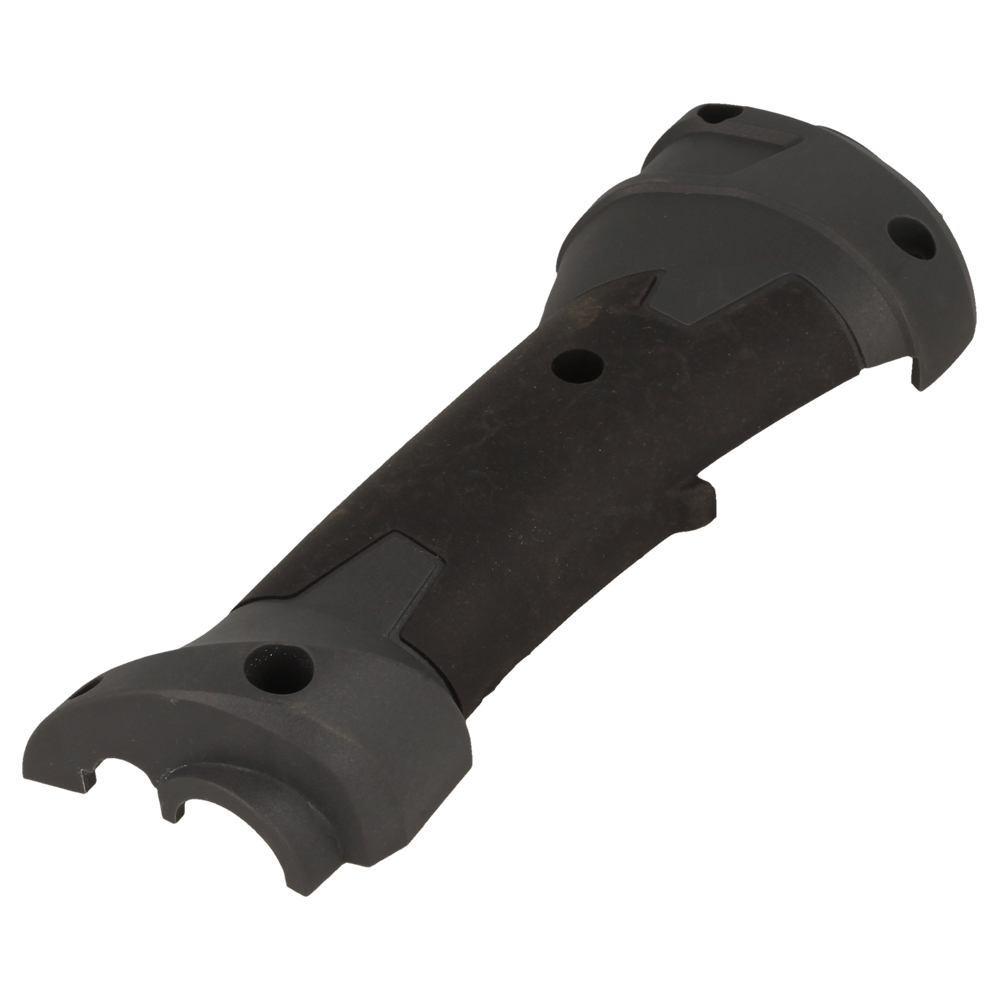

56	MO118802556/0 Available to backorder	Handle Cover. Right Part	£20.69 £17.24
57	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
58	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
59	MO123878020/0 Available to backorder	Screw	£1.33 £1.11
60	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
62	MO1911-9259-01 Available to backorder	Harness	£58.54 £48.78
63	MO118806450/0 Available to backorder	Trasmission Pipe Assy Ø26	£29.98 £24.98

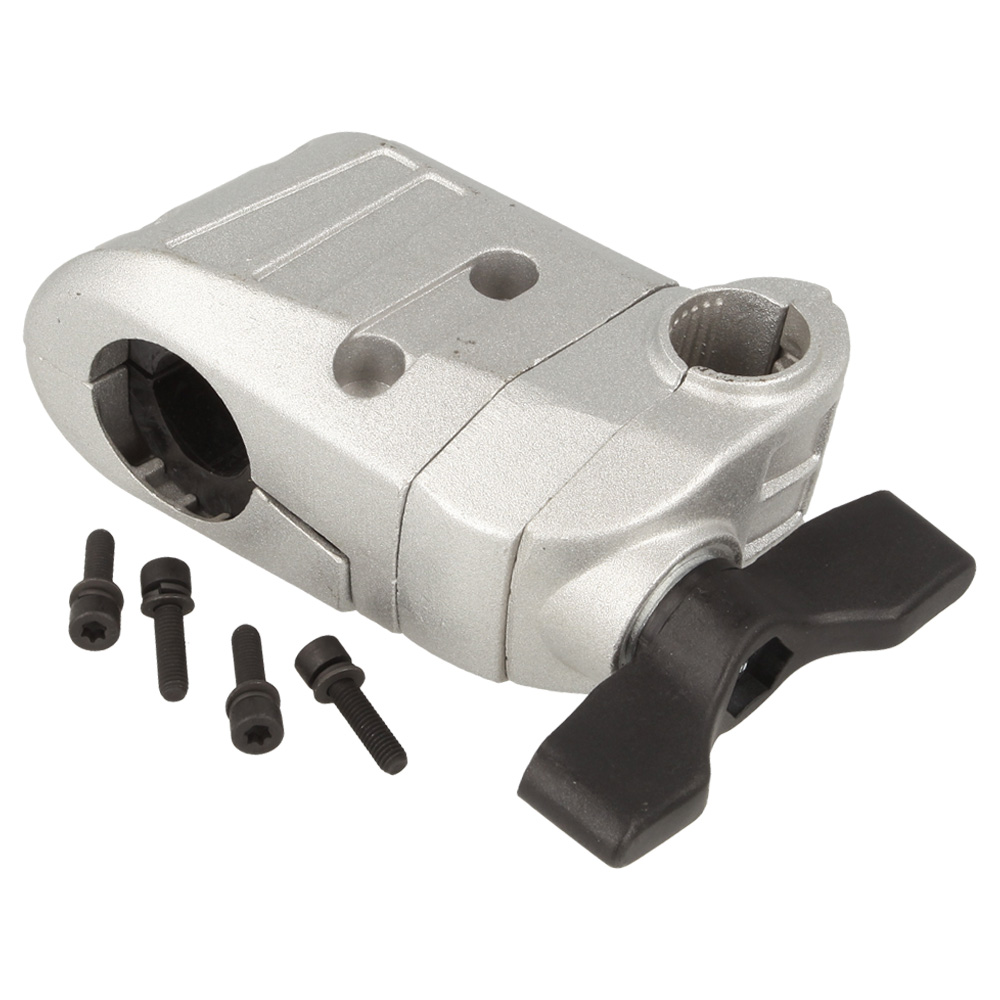

64	MO118805019/0 Available to backorder	Handgrip Support Ass.Y	£54.90 £45.75
65	MO118805014/0 Available to backorder	Handgrip Support Ass.Y	£45.04 £37.53
66	MO118805022/0 Available to backorder	Bike Handle Assy	£56.32 £46.93
67	MO118805126/0 Available to backorder	Clutch Drum Assy	£48.62 £40.52
68	MO118805127/0 Available to backorder	Ring Holder Assembly	£5.76 £4.80
