SBC 500 AE - 2021-2022 - 278200008/ST2 - Stiga Brushcutter Brushcutter Diagram

Description

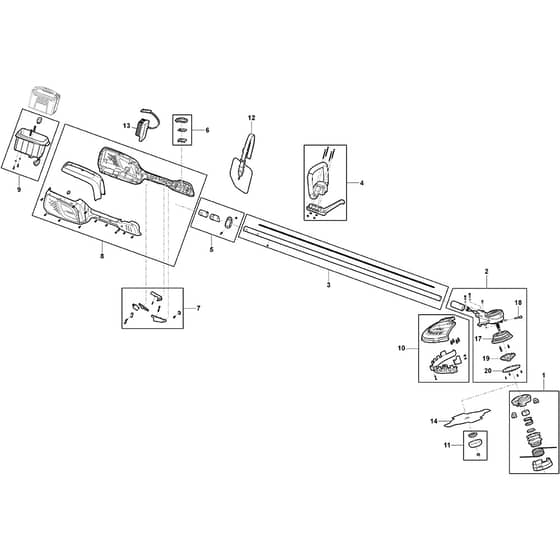

Stiga SBC 500 AE Parts Diagram

Product Name - SBC 500 AE

Model Year - 2021-2022

Model Type - BC 500 LI 48

Art.N - 278200008/ST2

Engine Model -

	Part No.	Details
1	MO1911-9299-01 Available to backorder	Trimmer Head Assy Ø102 - M8 Rh	£24.11 £20.09
2	MO118810786/0 Available to backorder	Electric Motor Kit	£140.59 £117.16
3	MO118810783/1 Available to backorder	Transmission Tube Assy	£40.82 £34.02
4	MO118810784/0 Available to backorder	Auxiliary Handle Kit	£23.65 £19.71
5	MO118810782/0 Available to backorder	Handle Fixing Kit	£3.10 £2.58
6	MO118810781/0 Available to backorder	Switch Cover Kit	£2.11 £1.76
7	MO118810780/0 Available to backorder	Commands-Levers Kit	£11.70 £9.75
8	MO118810779/0 Available to backorder	Housing Kit. Grey-Yellow	£40.82 £34.02
9	MO118810778/0 Available to backorder	Battery Housing Kit	£16.21 £13.51
10	MO118810787/0 Available to backorder	Stoneguard Kit	£19.42 £16.18
11	MO118810788/0 Available to backorder	Blade Fixing Kit	£11.70 £9.75
12	MO1911-9260-01 Available to backorder	Harness	£30.66 £25.55
13	MO118810808/0 Available to backorder	Pcb Board	£117.54 £97.95
14	MO1911-9264-01 Available to backorder	4-Teeth Blade	£8.69 £7.24
17	MO118811510/0 Available to backorder	Air Conveyor	£6.64 £5.53
18	MO118811614/0 Available to backorder	Lock Shaft Button	£6.70 £5.58
19	MO118811617/0 Available to backorder	Fan	£4.96 £4.13
20	MO118811616/0 Available to backorder		£1.60 £1.33
