SBC 242 D - 2016 - 287321002/16 - Stiga Brushcutter Engine Diagram

Name: SBC 242 D - 2016 - 287321002/16 - Stiga Brushcutter Engine Diagram
SKU: sbc_242_d_287321002_16_engine-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SBC 242 D - 2016 - 287321002/16 - Stiga Brushcutter Engine Diagram

Description

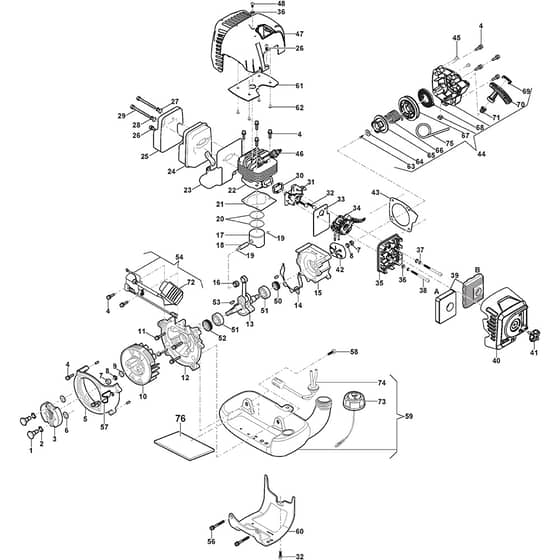

Stiga SBC 242 D Parts Diagram

Product Name - SBC 242 D

Model Year - 2016

Model Type - B 42 D

Art.N - 287321002/16

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118804038/0 Available to backorder	Screw	£1.40 £1.17
2	MO118804045/0 Available to backorder	Washer	£1.20 £1.00
3	MO118804000/0 Available to backorder	Clutch	£11.34 £9.45
4	MO112789008/0 Available to backorder	Screw	£1.82 £1.52
5	MO118804033/0 Available to backorder	Flywheel Cover	£12.67 £10.56
6	MO118804046/0 Available to backorder	Washer	£1.20 £1.00
7	MO112293200/0 In stock	Nut	£1.55 £1.29
8	MO112369500/0 In stock	Elastic Washer	£1.40 £1.17
9	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
10	MO118804013/1 In stock	Flywheel	Was £23.64 £19.70 Special Price £14.89 £12.41
11	MO2135130 Available to backorder	Screw	£1.40 £1.17
12	MO118804025/0 Available to backorder	Crank Case	£16.88 £14.07
13	MO118803989/0 Available to backorder	Crankshaft	£42.23 £35.19
14	MO118804079/0 Available to backorder	Crankcase Gasket	£1.55 £1.29
15	MO118804027/0 Available to backorder	Crank Case	£15.42 £12.85

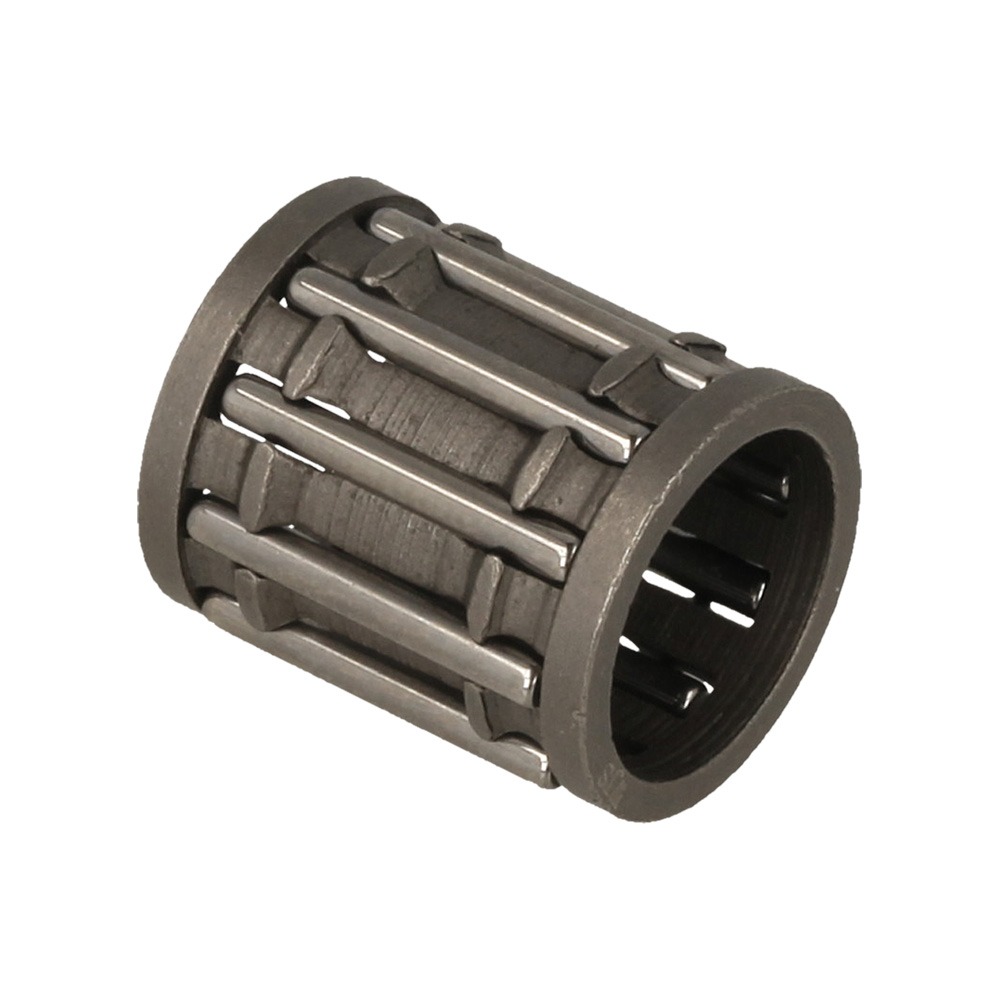

16	MO118804018/0 Available to backorder	Needle Bearing	£4.08 £3.40
17	MO118804028/0 Available to backorder	Piston	£10.00 £8.33
18	MO118804039/0 Available to backorder	Piston Pin	£1.69 £1.41
19	MO118804049/0 Available to backorder	Circlip	£1.20 £1.00

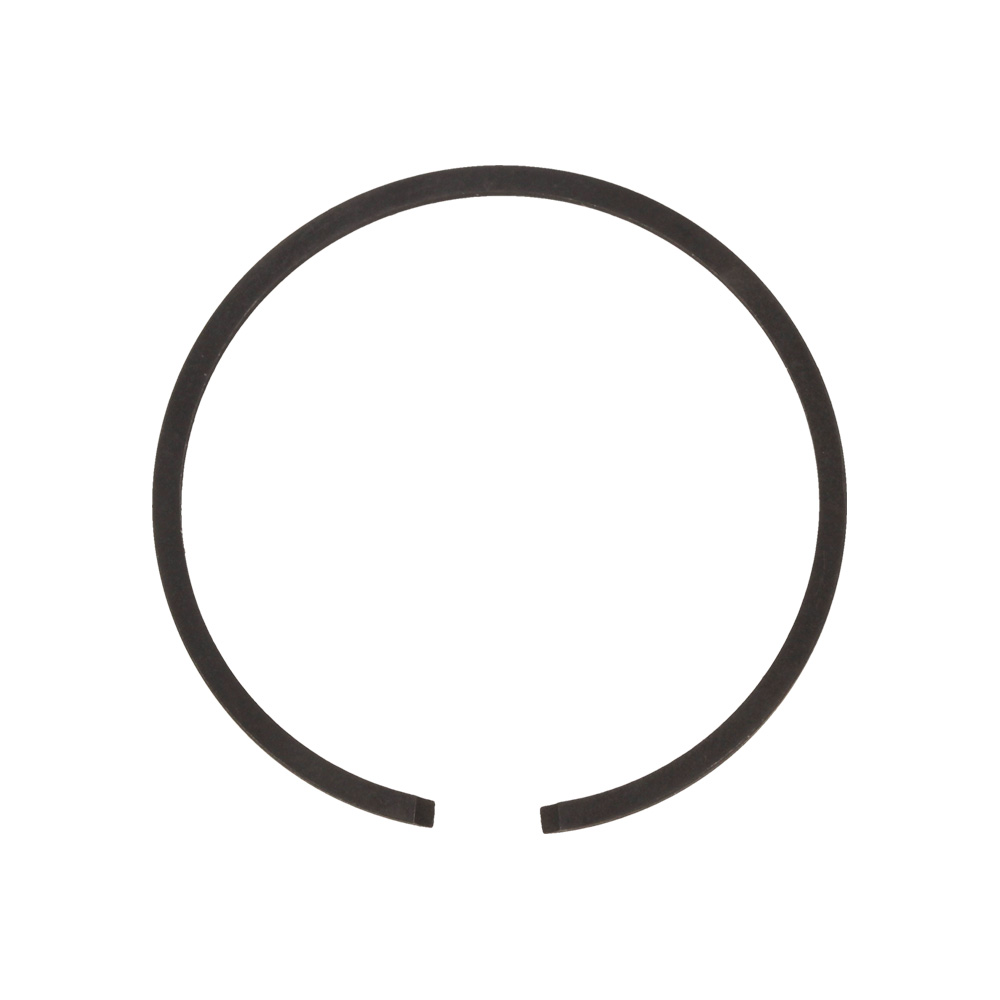

20	MO118804022/0 Available to backorder	Piston Ring	£2.81 £2.34
21	MO118804080/0 Available to backorder	Cylinder Gasket	£1.82 £1.52
22	MO118804034/0 Available to backorder	Cylinder	£46.46 £38.72
23	MO118804085/0 Available to backorder	Muffler Gasket	£6.47 £5.39
24	MO118803992/0 Available to backorder	Muffler	£36.59 £30.49
25	MO118804048/0 Available to backorder	Muffler Guard	£5.35 £4.46
26	MO2135180 Available to backorder	Screw	£1.40 £1.17
27	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
28	MO112582100/0 Available to backorder	Grower	£1.55 £1.29
29	MO118801180/0 Available to backorder	Screw	£1.69 £1.41
30	MO118804081/0 Available to backorder	Gasket	£1.69 £1.41
31	MO118804064/0 Available to backorder	Intake Manifold	£3.38 £2.82
33	MO118804083/0 Available to backorder	Carburetor Gasket	£1.55 £1.29
34	MO118804008/0 Available to backorder	Carburetor	£49.26 £41.05
35	MO118804063/0 Available to backorder	Air Cleaner Base	£1.55 £1.29
36	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
37	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
39	MO118804074/0 Available to backorder	Air Filter A	£1.82 £1.52
39	MO118804547/0 Available to backorder	Paper Filter B	£7.74 £6.45
40	MO118803968/0 Available to backorder	Filter Cover Yellow	£5.35 £4.46
41	MO118803174/0 Available to backorder	Knob. Grey	£2.68 £2.23
42	MO118803996/0 Available to backorder	Starter Cup	£4.37 £3.64
43	MO118804051/0 Available to backorder	Gasket	£1.82 £1.52
44	MO118803994/0 Available to backorder	Starter Assy	£23.36 £19.47
45	MO112727356/0 Available to backorder	Screw	£1.87 £1.56
46	9494 In stock	Spark Plug	£3.72 £3.10
47	MO118803970/1 Available to backorder	Yellow Cylinder Cover	£14.75 £12.29
48	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
50	MO118801188/0 Available to backorder	Seal Ring	£1.33 £1.11
51	MO3112040 Available to backorder	Ball Bearing	£14.64 £12.20
52	MO118804020/0 Available to backorder	Seal Ring	£1.82 £1.52
53	MO123072002/0 Available to backorder	Flywheel Key	£1.33 £1.11
54	MO118804010/0 Available to backorder	Ignition Assy	£32.32 £26.93
56	MO2135110 Available to backorder	Screw	£1.40 £1.17
57	MO118804055/0 Available to backorder	Wire Clamp	£1.55 £1.29
58	MO112760475/0 Available to backorder	Screw	£1.97 £1.64
59	MO118804004/0 Available to backorder	Fuel Tank Assy	£18.02 £15.02
60	MO118803962/0 Available to backorder	Support	£9.00 £7.50
61	MO118804087/0 Available to backorder	Air Guide	£5.92 £4.93
62	MO112727815/0 Available to backorder	Screw	£1.40 £1.17
63	MO112727790/0 Available to backorder	Screw	£1.66 £1.38
64	MO112523020/0 In stock	Washer	£1.55 £1.29
65	MO118803975/0 Available to backorder	Starter Cam	£3.24 £2.70
66	MO118804061/0 Available to backorder	Starter Spring	£2.40 £2.00
67	MO118803976/0 Available to backorder	Starter Pulley	£6.76 £5.63
68	MO118804060/0 Available to backorder	Spring	£6.05 £5.04
69	MO118804069/0 Available to backorder	Yellow Starter Plate	£1.33 £1.11
70	MO118803984/0 Available to backorder	Starter Handle	£1.97 £1.64
72	MO118803163/0 Available to backorder	Spark Plug Cap	£6.20 £5.17
73	MO322735152/1 In stock	Oil Cap	£3.52 £2.93
74	MO118804005/0 In stock	Fuel Hose	£3.10 £2.58
75	MO118803181/0 Available to backorder	Starter Cord	£2.68 £2.23
76	MO118805308/0 Available to backorder	Fuel Tank Heat Insulation Decal	£1.33 £1.11
