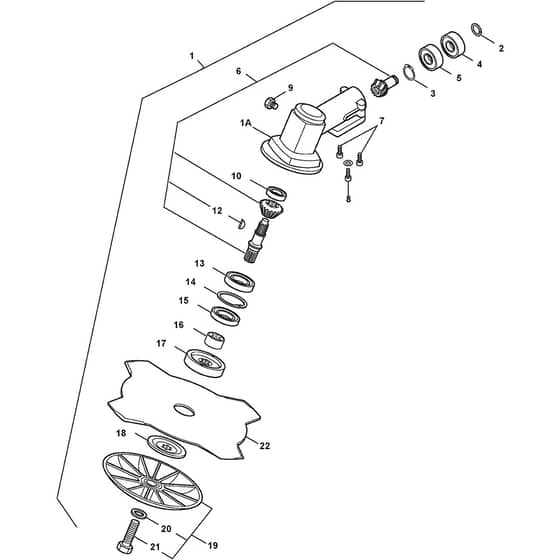

SB 52 PRO - 2001-2005 - 19-4630-13 - Stiga Brushcutter Gear Case Diagram

Description

Stiga SB 52 PRO Parts Diagram

Product Name - SB 52 PRO

Model Year - 2001-2005

Model Type -

Art.N - 19-4630-13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO112608500/0 Available to backorder	Seeger	£1.69 £1.41
4	MO3112200 Available to backorder	Ball Bearing	£8.59 £7.16
5	MO3112190 Available to backorder	Ball Bearing	£23.65 £19.71
7	MO2135050 Available to backorder	Screw	£1.33 £1.11
8	MO2653090 Available to backorder	Screw	£1.40 £1.17
10	MO3112210 Available to backorder	Ball Bearing	£13.31 £11.09
12	MO3151050 Available to backorder	Flywheel Key	£6.76 £5.63
14	MO3353080 Available to backorder	Seeger Ring	£1.40 £1.17
15	MO3121170 Available to backorder	Oil Seal	£13.85 £11.54
16	MO1L3641700/1 Available to backorder	Collar	£8.87 £7.39
17	MO3641640 Available to backorder	Upper Ring Nut	£10.07 £8.39
18	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
20	MO2321230 Available to backorder	Washer	£1.40 £1.17
21	MO2653170 Available to backorder	Screw	£4.60 £3.83
22	MO4611880 In stock	Blade 4 Teeth 255mm	£11.90 £9.92
