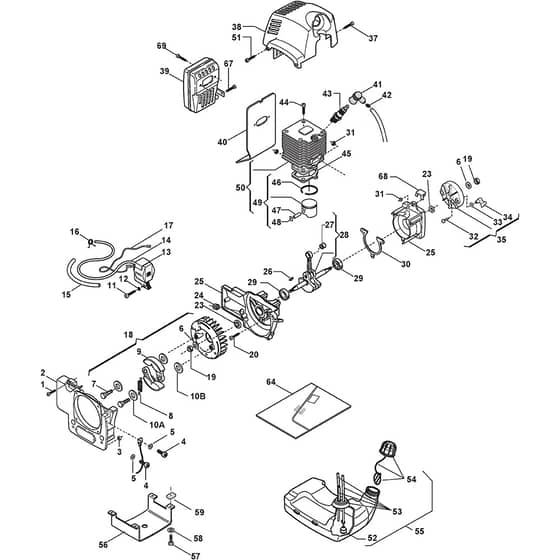

SB 44 P - 2006-2009 - 19-6115-12 - Stiga Brushcutter Engine Diagram

Description

Stiga SB 44 P Parts Diagram

Product Name - SB 44 P

Model Year - 2006-2009

Model Type - STAR 55 D

Art.N - 19-6115-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO2135040 Available to backorder	Screw	£1.38 £1.15
2	MO323208409/0 Available to backorder	Transmission Support Case	£26.50 £22.08
3	MO2461030 Available to backorder	Nut	£1.33 £1.11
5	MO2312120 Available to backorder	Flat Washer	£1.40 £1.17
6	MO2350040 Available to backorder	Washer	£1.33 £1.11
7	MO2653213 Available to backorder	Screw	£4.20 £3.50
8	MO3654040 Available to backorder	Clutch Spring	£3.66 £3.05
9	MO3L3660430/1 Available to backorder	Clutch Unit	£13.66 £11.38
10	MO3615030 Available to backorder	Inner Clutch-Mass Guide Plate	£4.37 £3.64
10	MO3615020 Available to backorder	Outher Clutch-Mass Guide Plate	£5.99 £4.99
13	MO123044001/0 Available to backorder	Electronic Coil replaced by 123044001.0	£94.36 £78.63
15	MO3782470 Available to backorder	Wire Sheath	£10.36 £8.63
18	MO3L8252500/1 Available to backorder	Flywheel	£78.78 £65.65
20	MO2135130 Available to backorder	Screw	£1.40 £1.17
23	MO3121120 Available to backorder	Seal Ring	£19.12 £15.93
24	MO3745130 Available to backorder	Grommet	£1.40 £1.17
26	MO3151050 Available to backorder	Flywheel Key	£6.76 £5.63
27	MO3114190 Available to backorder	Needle Bearing	£7.67 £6.39
28	MO8251440 Available to backorder	Crankshaft	£315.88 £263.23
29	MO3112040 Available to backorder	Ball Bearing	£14.64 £12.20
30	MO3724120 Available to backorder	Crankcase Gasket	£4.78 £3.98
31	MO2432040 Available to backorder	Nut	£1.33 £1.11
32	MO2123100 Available to backorder	Screw	£1.28 £1.07
33	MO3654050 Available to backorder	Spring	£1.40 £1.17
34	MO3749570 Available to backorder	Starter Hook	£1.33 £1.11
35	MO8540950 Available to backorder	Starter Cup Assy	£28.44 £23.70
37	MO2135030 Available to backorder	Screw	£1.40 £1.17
38	MO4563885 Available to backorder	Yellow Cylinder Cover	£25.34 £21.12
39	MO3L4122170/1 Available to backorder	Muffler	£77.20 £64.33
40	MO3724380 Available to backorder	Muffler Gasket	£11.12 £9.27
41	MO3744850 Available to backorder	Spark Plug Cap	£2.15 £1.79
42	MO3657530 Available to backorder	Spark Plug Spring	£1.34 £1.12
43	9494 In stock	Spark Plug	£3.72 £3.10
45	MO3724130 Available to backorder	Cylinder Gasket	£3.38 £2.82
46	MO3123200 Available to backorder	Piston Ring Ø 42	£6.36 £5.30
47	MO3158010 Available to backorder	Piston Pin	£4.22 £3.52
48	MO3356020 Available to backorder	Circlip	£6.92 £5.77
49	MO8540860 Available to backorder	Piston Assy Ø 42	£71.29 £59.41
52	MO4253290 Available to backorder	Intake Filter	£13.42 £11.18
53	MO8745542 Available to backorder	Grommet Assy	£11.08 £9.23
54	MO8741370 Available to backorder	Fuel Cap Assy	£5.83 £4.86
55	MO3L4252620/1 Available to backorder	Fuel Tank Assy	£71.29 £59.41
56	MO4612237 Available to backorder	Engine Support Flange	£7.46 £6.22
64	MO3L8724380/1 Available to backorder	Gasket Set	£21.50 £17.92
67	MO2135180 Available to backorder	Screw	£1.40 £1.17
