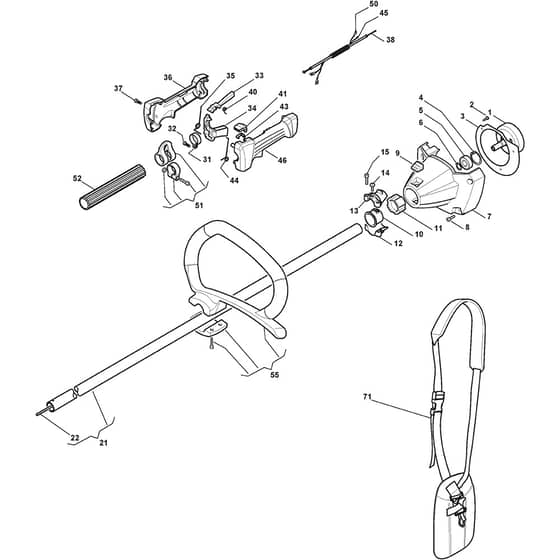

SB 44 - 2014-2015 - 280320002/13 - Stiga Brushcutter Handle Transmission Diagram

Description

Stiga SB 44 Parts Diagram

Product Name - SB 44

Model Year - 2014-2015

Model Type - B 44

Art.N - 280320002/13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO123050012/0 Available to backorder	Clutch Drum Assy	£16.06 £13.38
3	MO118801261/0 Available to backorder	Guard	£3.38 £2.82
4	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
5	MO119216048/0 In stock	Bearing	£18.31 £15.26
6	MO112609200/0 Available to backorder	Seeger	£1.55 £1.29
7	MO118801259/1 Available to backorder	Clutch Case	£41.89 £34.91
8	MO112760475/0 Available to backorder	Screw	£1.97 £1.64
9	MO118801260/0 Available to backorder	Button	£1.69 £1.41
10	MO118801316/0 Available to backorder	Reduction	£4.22 £3.52
11	MO118801311/0 Available to backorder	Reduction	£6.20 £5.17
12	MO118801310/0 Available to backorder	Support	£10.42 £8.68
13	MO118801309/0 Available to backorder	Support	£10.56 £8.80
14	MO2135020 Available to backorder	Screw	£1.40 £1.17
15	MO2135030 Available to backorder	Screw	£1.40 £1.17
21	MO183869073/0 Available to backorder	Assy Transm. Tube+Flex	£42.23 £35.19
22	MO123020038/0 Available to backorder	Transmission Shaft	£17.74 £14.78
31	MO118801337/0 Available to backorder	Clamp	£2.12 £1.77
32	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
33	MO118801335/0 Available to backorder	Safety Lever. Red	£1.69 £1.41
34	MO118801336/0 Available to backorder	Throttle Lever. Red	£2.12 £1.77
35	MO118801334/0 Available to backorder	Spring	£1.61 £1.34
37	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
38	MO118801354/0 Available to backorder	Throttle Cable	£8.12 £6.77
40	MO118801333/0 Available to backorder	Spring	£1.33 £1.11
41	MO118801329/0 Available to backorder	Stop Knob.Red	£1.40 £1.17
43	MO118801330/0 Available to backorder	Stop Plate	£1.69 £1.41
44	MO118801338/0 Available to backorder	Spring	£1.69 £1.41
45	MO118801328/0 Available to backorder	Stop Wire	£8.02 £6.68
50	MO118801322/0 Available to backorder	Stop Wire Adapter	£1.66 £1.38
51	MO183780002/0 Available to backorder	Harness Support	£3.52 £2.93
55	MO118801381/0 Available to backorder	Front Handle Assy. Yellow	£57.71 £48.09
71	MO118801327/0 Available to backorder	Harness	£12.67 £10.56
