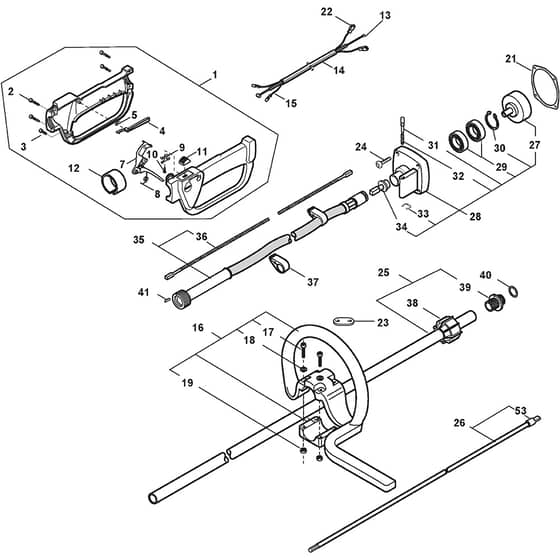

SB 43 FS - 2009-2010 - 281622002/09 - Stiga Brushcutter Handle Transmission Diagram

Description

Stiga SB 43 FS Parts Diagram

Product Name - SB 43 FS

Model Year - 2009-2010

Model Type - BC 43 FS

Art.N - 281622002/09

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO3L8562620/1 Available to backorder	Handle Assy	£31.54 £26.28
2	MO2123030 Available to backorder	Screw	£1.33 £1.11
3	MO2123100 Available to backorder	Screw	£1.28 £1.07
4	MO3743475 Available to backorder	Safety Lever	£2.81 £2.34
5	MO3654300 Available to backorder	Spring	£1.40 £1.17
7	MO3743460 Available to backorder	Throttle Lever	£10.00 £8.33
8	MO1L3654270/1 Available to backorder	Spring	£1.40 £1.17
10	MO2123070 Available to backorder	Screw	£1.33 £1.11
11	MO3749270 Available to backorder	Knob	£1.33 £1.11
13	MO123066018/0 Available to backorder	Throttle Cable	£6.76 £5.63
14	MO3782680 Available to backorder	Wire Sheath	£15.90 £13.25
17	MO2135050 Available to backorder	Screw	£1.33 £1.11
18	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
19	MO2412030 Available to backorder	Nut	£1.38 £1.15
21	MO323208406/0 Available to backorder	Flange	£2.40 £2.00
24	MO2135160 Available to backorder	Screw	£1.40 £1.17
27	MO3L4121861/1 Available to backorder	Clutch Drum Assy	£20.32 £16.93
29	MO119216038/0 Available to backorder	Ball Bearing	£5.92 £4.93
30	MO3353080 Available to backorder	Seeger Ring	£1.40 £1.17
31	MO3642420 Available to backorder	Pin	£8.17 £6.81
32	MO3654170 Available to backorder	Spring	£1.40 £1.17
33	MO3351050 Available to backorder	Circlip	£1.40 £1.17
35	MO3L4122110/2 Available to backorder	Flexible Shaft	£246.35 £205.29
36	MO1L4253990/1 Available to backorder	Flexible Shaft J	£52.06 £43.38
37	MO3749310 Available to backorder	Clip	£15.41 £12.84
38	MO3750270 Available to backorder	Plate For Handle Fixing	£2.12 £1.77
40	MO3721540 Available to backorder	Or Ring	£1.33 £1.11
