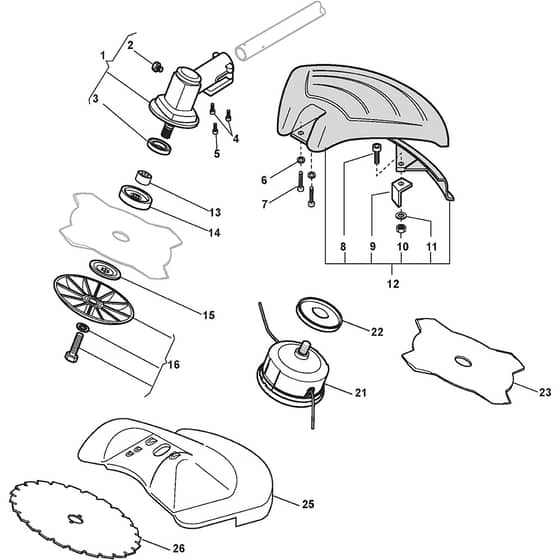

SB 43 DS - 2009-2013 - 281621002/09 - Stiga Brushcutter Gear Case Diagram

Name: SB 43 DS - 2009-2013 - 281621002/09 - Stiga Brushcutter Gear Case Diagram
SKU: sb_43_ds_281621002_09_gear_case-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SB 43 DS - 2009-2013 - 281621002/09 - Stiga Brushcutter Gear Case Diagram

Description

Stiga SB 43 DS Parts Diagram

Product Name - SB 43 DS

Model Year - 2009-2013

Model Type - BC 43 DS

Art.N - 281621002/09

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO3121170 Available to backorder	Oil Seal	£13.85 £11.54
4	MO2135050 Available to backorder	Screw	£1.33 £1.11
5	MO2653090 Available to backorder	Screw	£1.40 £1.17
8	MO2135030 Available to backorder	Screw	£1.40 £1.17
9	MO3615000 Available to backorder	Line Cutter Blade	£8.84 £7.37
10	MO112154330/0 In stock	Nut	£1.55 £1.29
11	MO2312150 Available to backorder	Washer	£1.33 £1.11
12	MO3L8563570/1 Available to backorder	Safety Cover Assy	£26.32 £21.93
13	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.87 £7.39
14	MO3641640 Available to backorder	Upper Ring Nut	£10.07 £8.39
15	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
21	MO1911-9228-01 Available to backorder	2 Hedges Nylon Head	£21.08 £17.57
22	MO3614950 Available to backorder	Plate	£1.34 £1.12
23	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
25	MO4562847 Available to backorder	Guard For Disk	£12.32 £10.27
26	MO6031185 Available to backorder	Profi 24 Theet 225 mm	£23.23 £19.36
