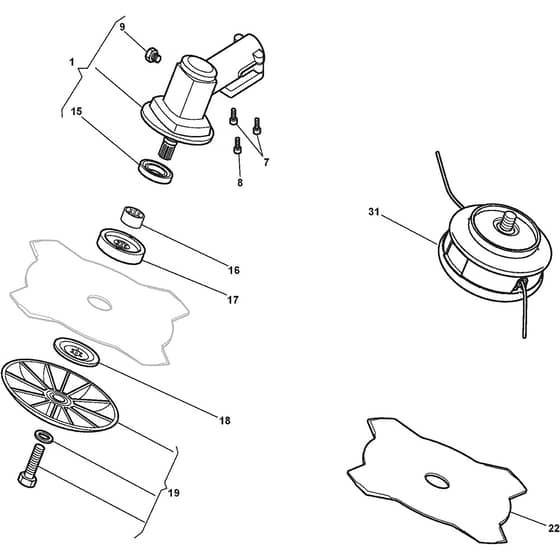

SB 39 - 2005-2007 - 284120002/04 - Stiga Brushcutter Gear Case Diagram

Description

Stiga SB 39 Parts Diagram

Product Name - SB 39

Model Year - 2005-2007

Model Type - STAR 41 D

Art.N - 284120002/04

Engine Model -

	Part No.	Details
7	MO2135050 Available to backorder	Screw	£1.33 £1.11
8	MO2653090 Available to backorder	Screw	£1.39 £1.16
15	MO3121170 Available to backorder	Oil Seal	£13.86 £11.55
16	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.86 £7.38
17	MO3641640 Available to backorder	Upper Ring Nut	£10.06 £8.38
18	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
22	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
31	MO1911-9228-01 In stock	Profi Tap & Go Brushcutter Ggp03	£24.77 £20.64
