SB 35 - 2009 - 283820002/08 - Stiga Brushcutter Handle Transmission Diagram

Name: SB 35 - 2009 - 283820002/08 - Stiga Brushcutter Handle Transmission Diagram
SKU: sb_35_283820002_08_handle_transmission-group
Price: 1.11 GBP
Availability: InStock

Part No. sb_35_283820002_08_handle_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SB 35 - 2009 - 283820002/08 - Stiga Brushcutter Handle Transmission Diagram

Description

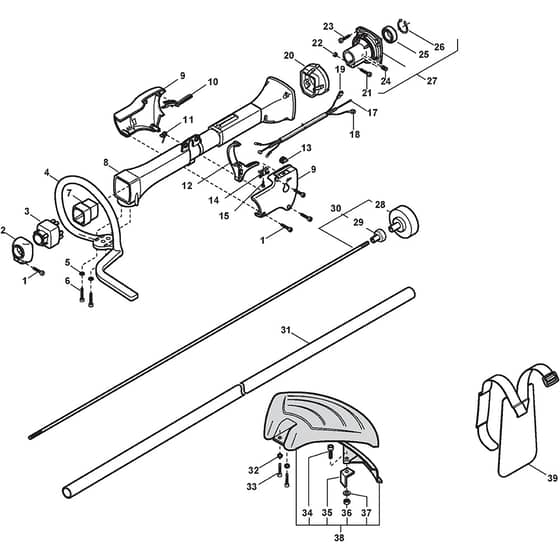

Stiga SB 35 Parts Diagram

Product Name - SB 35

Model Year - 2009

Model Type - BC 35

Art.N - 283820002/08

Engine Model -

	Part No.	Details
1	MO2123030 Available to backorder	Screw	£1.33 £1.11
4	MO4563560 Available to backorder	Front Handle	£10.19 £8.49
8	MO4563531 Available to backorder	Transmission Housing	£13.44 £11.20
13	MO3749270 Available to backorder	Knob	£1.33 £1.11
15	MO2123070 Available to backorder	Screw	£1.33 £1.11
21	MO2135150 Available to backorder	Screw	£1.39 £1.16
22	MO2432030 Available to backorder	Nut	£1.33 £1.11
23	MO2135160 Available to backorder	Screw	£1.46 £1.22
25	MO119216038/0 Available to backorder	Ball Bearing	£5.92 £4.93
26	MO3353080 Available to backorder	Seeger Ring	£1.39 £1.16
29	MO3642191 Available to backorder	Bearing Hub	£3.65 £3.04
31	MO4251204 Available to backorder	Transmission Pipe Assy Ø26	£68.99 £57.49
34	MO2135030 Available to backorder	Screw	£1.40 £1.17
35	MO3615000 Available to backorder	Line Cutter Blade	£8.83 £7.36
36	MO2432040 Available to backorder	Nut	£1.33 £1.11
37	MO2312150 Available to backorder	Washer	£1.33 £1.11
38	MO3L8563570/1 Available to backorder	Safety Cover Ass.Y	£26.32 £21.93
39	MO1911-9259-01 Available to backorder	Single Harness	£58.54 £48.78
