SB 320 D - 2013-2016 - 286221002/13 - Stiga Brushcutter Handle Transmission Diagram

Name: SB 320 D - 2013-2016 - 286221002/13 - Stiga Brushcutter Handle Transmission Diagram
SKU: sb_320_d_286221002_13_handle_transmission-group
Price: 1.05 GBP
Availability: InStock

Part No. sb_320_d_286221002_13_handle_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SB 320 D - 2013-2016 - 286221002/13 - Stiga Brushcutter Handle Transmission Diagram

Description

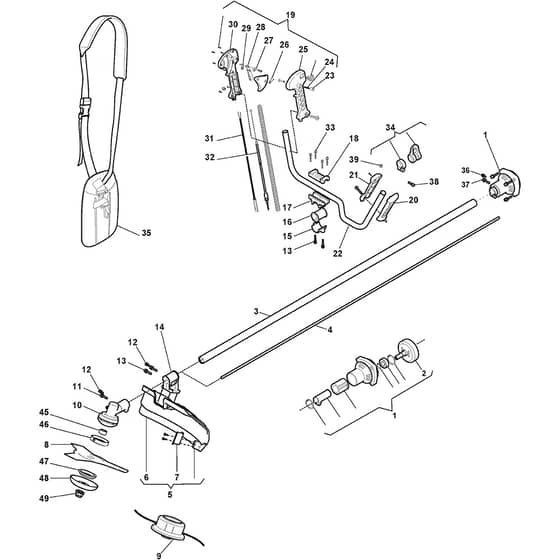

Stiga SB 320 D Parts Diagram

Product Name - SB 320 D

Model Year - 2013-2016

Model Type - TB 320 D

Art.N - 286221002/13

Engine Model -

	Part No.	Details
2	MO118801398/0 Available to backorder	Drum Ass'Y. Clutch	£14.08 £11.73
3	MO118803960/0 Available to backorder	Transmission Pipe Assy	£24.22 £20.18
4	MO118801190/0 Available to backorder	Transmission Shaft Assy	£12.40 £10.33
5	MO118802063/0 In stock	Safety Cover Ass.Y	£27.31 £22.76
6	MO118802064/0 Available to backorder	Guard	£16.98 £14.15
7	MO118802065/0 Available to backorder	Line Cutter Blade	£1.74 £1.45
8	MO118801125/0 In stock	3 Teeth Disc	£9.55 £7.96
9	MO118801124/0 In stock	2 Hedges Nylon Head	£12.50 £10.42
10	MO118801184/0 In stock	Gear Case Assy	£64.75 £53.96
13	MO2135130 Available to backorder	Screw	£1.39 £1.16
14	MO118801205/0 Available to backorder	Support	£2.69 £2.24
15	MO118801412/0 Available to backorder	Lower Support	£1.55 £1.29
16	MO118801413/0 Available to backorder	Reduction	£1.33 £1.11
17	MO118801414/0 Available to backorder	Handgrip Support	£1.33 £1.11
19	MO118802167/0 Available to backorder	Right Handgrip	£13.44 £11.20
20	MO118801405/0 Available to backorder	Left Handgrip	£2.11 £1.76
21	MO118801406/0 Available to backorder	Right Handgrip	£2.11 £1.76
22	MO118801409/0 Available to backorder	Handle	£10.00 £8.33
23	MO118801410/0 Available to backorder	Button	£1.33 £1.11
24	MO118801411/0 Available to backorder	Spring	£1.33 £1.11
25	MO118801407/0 Available to backorder	Left Handgrip	£2.24 £1.87
26	MO118801404/0 Available to backorder	Spring	£1.26 £1.05
27	MO118801403/0 Available to backorder	Trigger Lock Block	£1.26 £1.05
28	MO118801402/0 Available to backorder	Lock Rod	£2.24 £1.87
29	MO118801401/0 Available to backorder	Spring	£1.70 £1.42
30	MO118801408/0 Available to backorder	Right Handgrip	£2.24 £1.87
31	MO118801399/0 Available to backorder	Coil-Switch Cable	£1.84 £1.53
32	MO118801400/0 Available to backorder	Throttle Cable	£6.64 £5.53
34	MO118801182/0 Available to backorder	Harness Support	£1.55 £1.29
35	MO1911-9259-01 Available to backorder	Harness	£58.54 £48.78
36	MO2135180 Available to backorder	Screw	£1.40 £1.17
37	MO2132180 Available to backorder	Screw	£1.33 £1.11
39	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
46	MO118804043/0 Available to backorder	Upper Ring Nut	£5.22 £4.35
47	MO118804044/0 In stock	Lower Ring Nut	£3.79 £3.16
48	MO118803206/0 In stock	Case Dust Cover	£3.52 £2.93
49	MO2452090 In stock	Left Self-Locking Nut	£5.34 £4.45
