SB 29 - 2008 - 19-3521-11 - Stiga Brushcutter Gear Case Diagram

Description

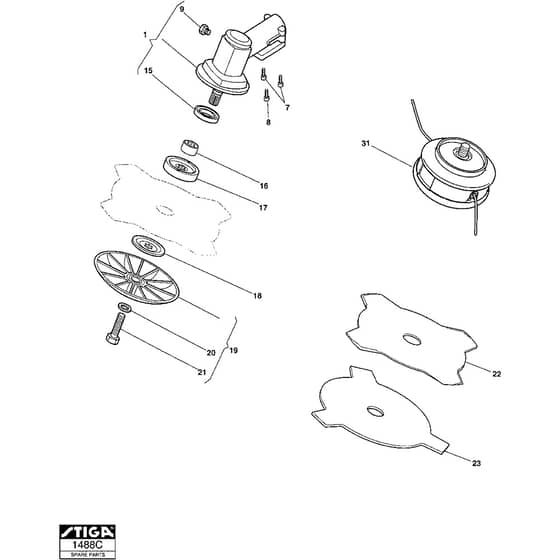

Stiga SB 29 Parts Diagram

Product Name - SB 29

Model Year - 2008

Model Type - BC 29

Art.N - 19-3521-11

Engine Model -

	Part No.	Details
1	MO3L4252770/2 Available to backorder	Gear Case Assy Ø24	£122.46 £102.05
7	MO2135050 Available to backorder	Screw	£1.33 £1.11
8	MO2653090 Available to backorder	Screw	£1.39 £1.16
15	MO3121180 Available to backorder	Oil Seal	£4.08 £3.40
16	MO3660680 Available to backorder	Collar	£5.90 £4.92
17	MO3641650 Available to backorder	Upper Ring Nut	£12.64 £10.53
18	MO3612650 Available to backorder	Lower Ring Nut	£12.91 £10.76
20	MO2321230 In stock	Washer	£1.39 £1.16
22	MO4611880 In stock	4 Teeth Disck 4T - Ø 255 mm	£11.90 £9.92
23	MO6031172 Available to backorder	3 Teeth Disc 3T - Ø 255 mm	£9.07 £7.56
31	MO1911-9228-01 In stock	2 Hedges Nylon Head M8x1.25 SX male	£24.77 £20.64
99	MO1911-9232-01 Available to backorder	Use 1911-9151-01	£4.45 £3.71
