SB 28 - 2014-2015 - 280120002/13 - Stiga Brushcutter Engine Diagram

Name: SB 28 - 2014-2015 - 280120002/13 - Stiga Brushcutter Engine Diagram
SKU: sb_28_280120002_13_engine-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SB 28 - 2014-2015 - 280120002/13 - Stiga Brushcutter Engine Diagram

Description

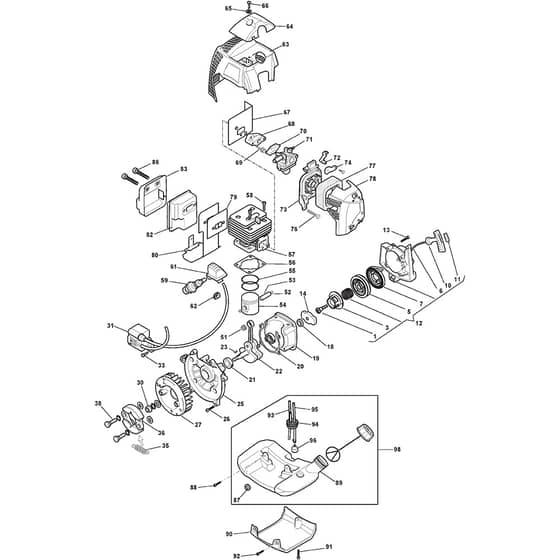

Stiga SB 28 Parts Diagram

Product Name - SB 28

Model Year - 2014-2015

Model Type - B 28

Art.N - 280120002/13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
3	MO118803179/0 Available to backorder	Hub	£2.40 £2.00
5	MO118803182/0 Available to backorder	Starter Pulley	£3.10 £2.58
6	MO118801225/0 Available to backorder	Starter Cord	£3.92 £3.27
7	MO118803183/0 Available to backorder	Spring	£5.44 £4.53
10	MO118801238/0 Available to backorder	Starter Handle	£2.26 £1.88
12	MO118801237/0 Available to backorder	Starter Ass.Y Black	£28.01 £23.34
14	MO118802069/0 In stock	Starter Cup Ass.Y	£4.22 £3.52
18	MO119035159/0 Available to backorder	Seal Ring	£1.33 £1.11
19	MO123685024/0 Available to backorder	Crank Case	£17.04 £14.20
20	MO123280046/0 Available to backorder	Crankcase Gasket	£1.40 £1.17
21	MO3112240 Available to backorder	Ball Bearing	£10.14 £8.45
22	MO123020024/0 Available to backorder	Crankshaft	£56.32 £46.93
23	MO123072002/0 Available to backorder	Flywheel Key	£1.33 £1.11
25	MO123685025/0 Available to backorder	Crank Case	£16.46 £13.72
27	MO123880010/0 Available to backorder	Flywheel Ass.Y	£28.28 £23.57
30	MO123120008/0 Available to backorder	Nut	£1.69 £1.41
31	MO118801231/0 Available to backorder	Electronic Coil	£27.47 £22.89
33	MO2135030 Available to backorder	Screw	£1.40 £1.17
35	MO123430582/0 Available to backorder	Spring	£1.33 £1.11
36	MO123400002/0 Available to backorder	Clutch Unit	£8.17 £6.81
38	MO123878057/0 Available to backorder	Screw	£1.33 £1.11
51	MO123235006/0 Available to backorder	Needle Bearing	£2.81 £2.34
52	MO123202005/0 Available to backorder	Washer. Piston Pin	£1.33 £1.11
53	MO123760005/0 Available to backorder	Piston Pin	£1.69 £1.41
54	MO123590007/0 Available to backorder	Piston	£8.65 £7.21
55	MO123204009/0 Available to backorder	Piston Ring	£1.69 £1.41
56	MO123280044/0 Available to backorder	Cylinder Base Gasket	£1.40 £1.17
57	MO123071013/0 Available to backorder	Cylinder Assy	£38.00 £31.67
59	9494 In stock	Spark Plug	£3.72 £3.10
61	MO118801232/0 Available to backorder	Spark Plug Cover	£3.92 £3.27
62	MO123275023/0 Available to backorder	Grommet	£1.40 £1.17
63	MO118801287/0 Available to backorder	Yellow Cylinder Cover	£18.72 £15.60
64	MO118801289/0 Available to backorder	Yellow Cover	£5.72 £4.77
65	MO118801255/0 Available to backorder	Gasket	£1.28 £1.07
66	MO112760475/0 Available to backorder	Screw	£1.97 £1.64
67	MO123280040/0 Available to backorder	Intake Manifold Gasket	£1.33 £1.11
68	MO123073508/0 Available to backorder	Intake Manifold	£3.52 £2.93
70	MO118801227/0 Available to backorder	Carburetor Gasket	£1.33 £1.11
71	MO123054025/1 In stock	Carburetor	£42.23 £35.19
72	MO118801229/0 Available to backorder	Lever	£1.33 £1.11
74	MO123190000/0 Available to backorder	Shutter	£1.33 £1.11
77	MO123220011/0 In stock	Air Filter	£3.79 £3.16
78	MO118801230/0 Available to backorder	Filter Cover Yellow	£8.53 £7.11
79	MO118801320/0 Available to backorder	Gasket	£6.83 £5.69
82	MO183740021/0 Available to backorder	Muffler	£54.90 £45.75
83	MO118801248/0 Available to backorder	Muffler Guard	£10.76 £8.97
87	MO123280060/0 Available to backorder	Rubber Gasket	£1.40 £1.17
98	MO118801244/1 In stock		£38.51 £32.09
