SB 28 - 2002-2007 - 183120002 - Stiga Brushcutter Engine Diagram

Description

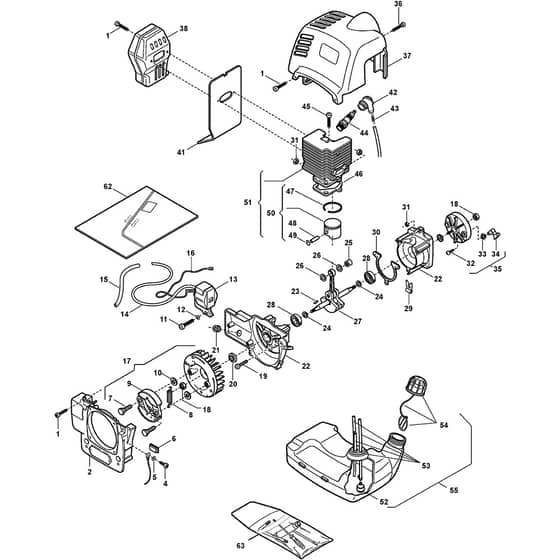

Stiga SB 28 Parts Diagram

Product Name - SB 28

Model Year - 2002-2007

Model Type -

Art.N - 183120002

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO2135040 Available to backorder	Screw	£1.38 £1.15
5	MO2312120 Available to backorder	Flat Washer	£1.40 £1.17
6	MO3745530 Available to backorder	Grommet	£3.52 £2.93
7	MO2653280 Available to backorder	Screw	£1.40 £1.17

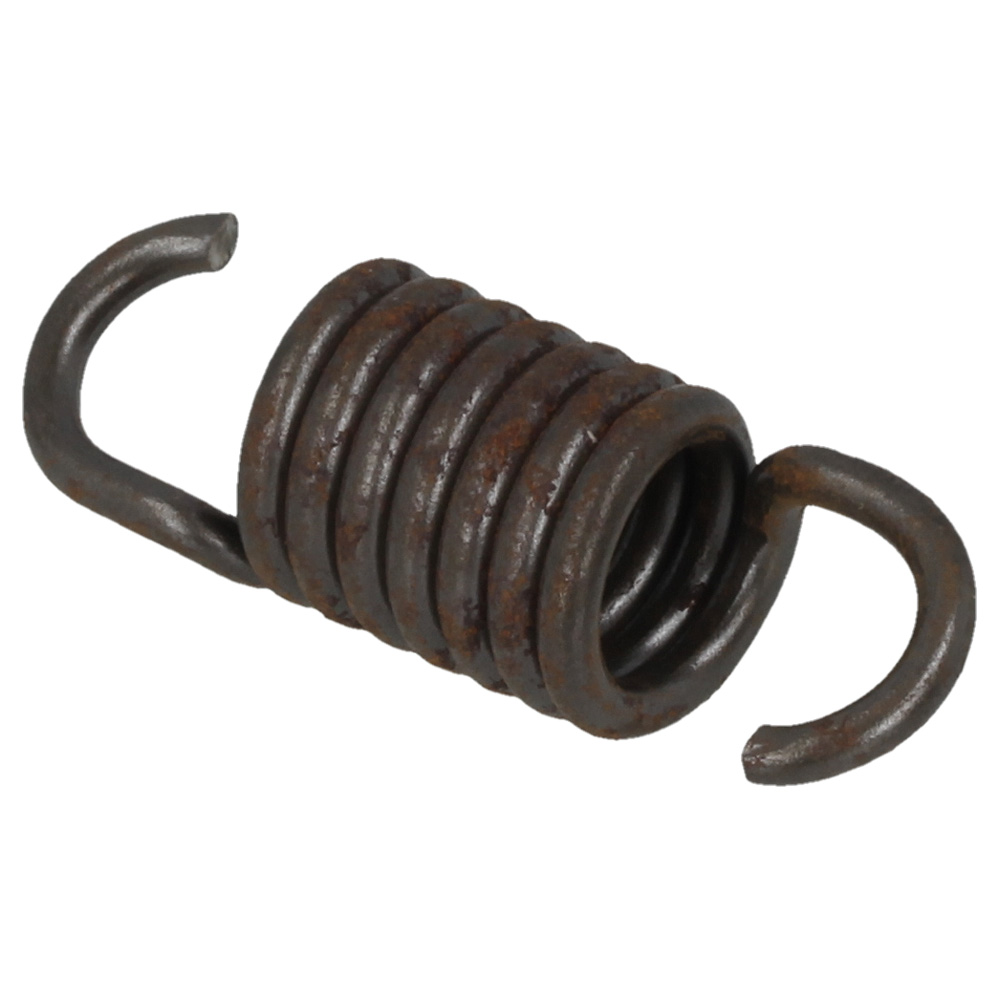

8	MO3654090 Available to backorder	Spring	£4.93 £4.11
11	MO2132510 Available to backorder	Screw	£1.38 £1.15
12	MO2321050 Available to backorder	Washer	£1.40 £1.17
13	MO3210665 Available to backorder	Electronic Coil	£65.45 £54.54
15	MO3782470 Available to backorder	Wire Sheath	£10.36 £8.63
18	MO2670120 Available to backorder	Nut	£1.40 £1.17
19	MO2135050 Available to backorder	Screw	£1.33 £1.11
21	MO3745130 Available to backorder	Grommet	£1.40 £1.17
23	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
25	MO3116100 Available to backorder	Needle Bearing	£7.13 £5.94
26	MO3614891 Available to backorder	Washer-Piston	£3.79 £3.16
27	MO8250830 Available to backorder	Crankshaft (3EL)	£197.33 £164.44
28	MO3112240 Available to backorder	Needle Bearing	£10.14 £8.45

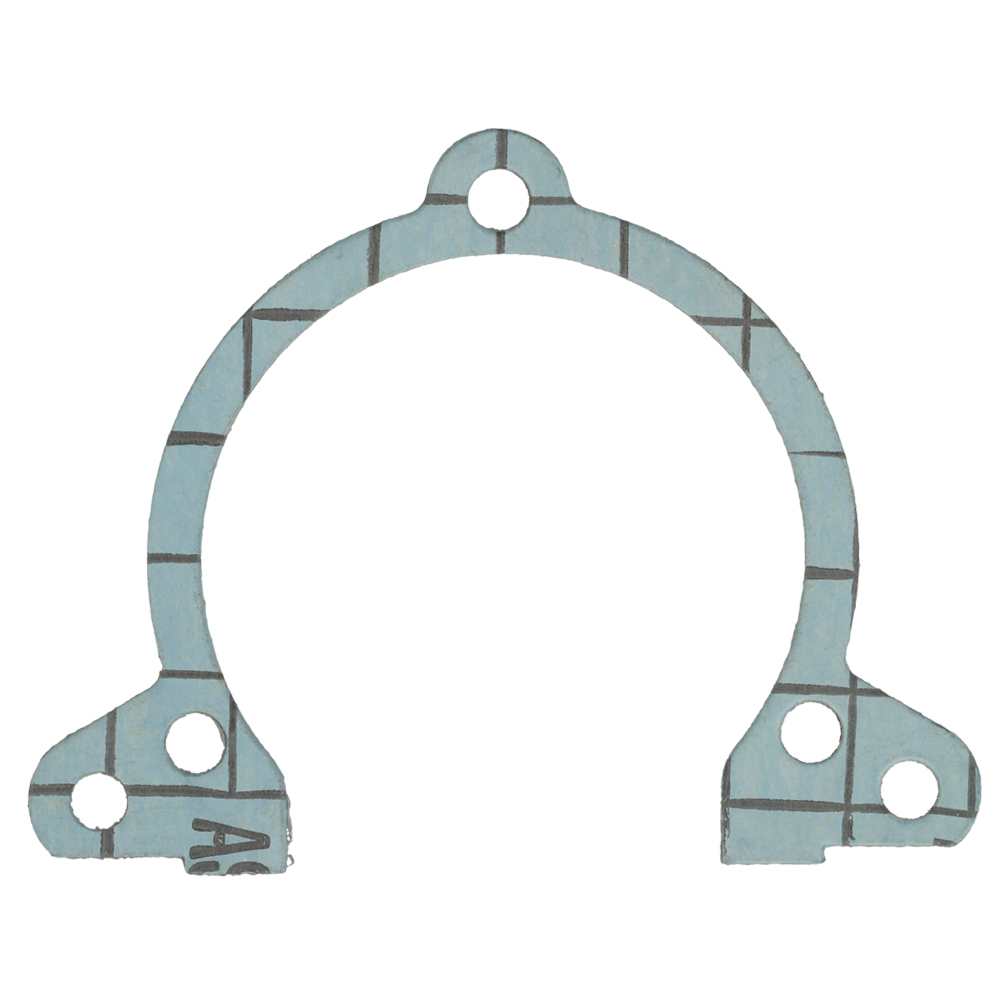

30	MO3724031 Available to backorder	Crankcase Gasket	£3.52 £2.93
31	MO2432040 Available to backorder	Nut	£1.33 £1.11
32	MO2123100 Available to backorder	Screw	£1.28 £1.07
33	MO3654050 Available to backorder	Spring	£1.40 £1.17
34	MO3749570 Available to backorder	Starter Hook	£1.33 £1.11
35	MO8540810 Available to backorder	Starter Cup Assy	£43.28 £36.07
36	MO2135030 Available to backorder	Screw	£1.40 £1.17
38	MO4122140 Available to backorder	Muffler Assy	£69.07 £57.56
41	MO3724370 Available to backorder	Muffler Gasket	£9.72 £8.10
42	MO3744850 Available to backorder	Spark Plug Cap	£2.15 £1.79
43	MO3657530 Available to backorder	Spark Plug Spring	£1.34 £1.12
44	9494 In stock	Spark Plug	£3.72 £3.10
45	MO2135150 Available to backorder	Screw	£1.40 £1.17

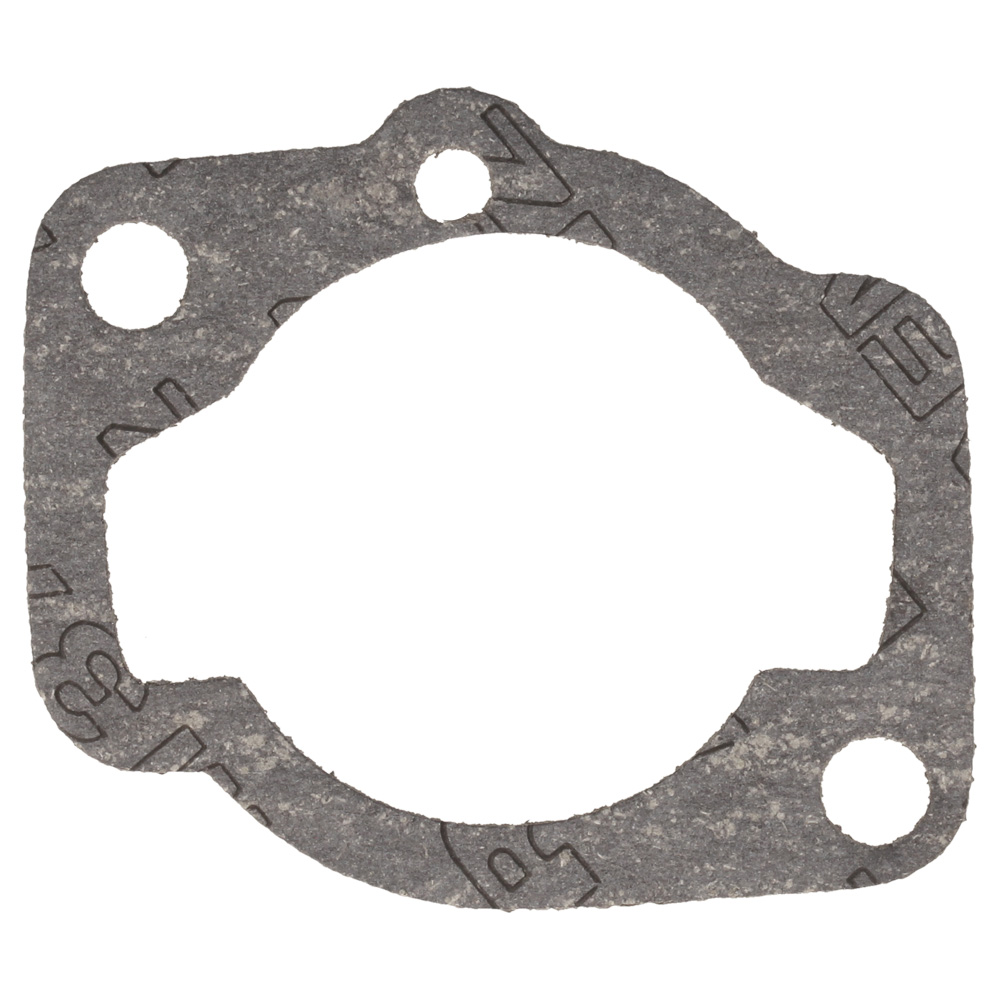

46	MO3724250 Available to backorder	Cylinder Gasket	£1.99 £1.66
47	MO3123210 Available to backorder	Piston Ring From 01-9-2003	£4.93 £4.11
48	MO3158220 Available to backorder	Piston Pin From 01-9-2003	£3.67 £3.06
49	MO3356050 Available to backorder	Circlip Ring To 31-8-2003	£1.40 £1.17
50	MO3L8541100/1 Available to backorder	Piston Assy Ø 35 To 31-8-2003	£66.16 £55.13
51	MO8541093 Available to backorder	Cylinder - Piston Ass'Y To 31-8-2003	£216.71 £180.59
52	MO4253290 Available to backorder	Intake Filter	£13.42 £11.18
53	MO8745542 Available to backorder	Grommet Assy	£11.08 £9.23
54	MO8741370 Available to backorder	Fuel Cap Assy	£5.83 £4.86
55	MO4252530 Available to backorder	Fuel Tank Assy	£58.56 £48.80
62	MO8724370 Available to backorder	Gasket Set	£34.75 £28.96
