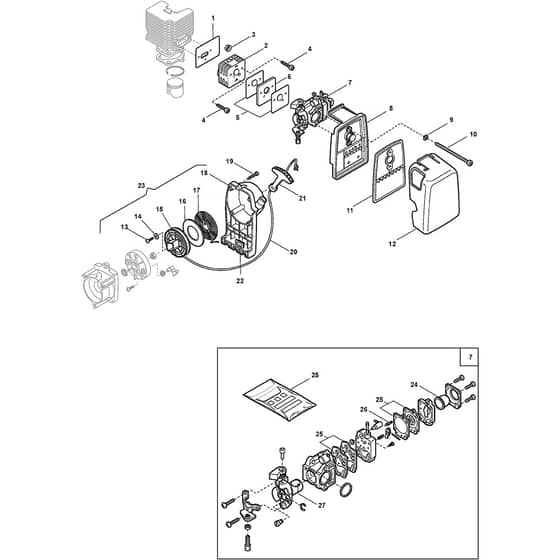

SB 28 - 2002-2007 - 183120002 - Stiga Brushcutter Carburettor Diagram

Description

Stiga SB 28 Parts Diagram

Product Name - SB 28

Model Year - 2002-2007

Model Type -

Art.N - 183120002

Engine Model -

	Part No.	Details
4	MO2135050 Available to backorder	Screw	£1.33 £1.11
5	MO3724400 Available to backorder	Intake Carburator Gasket	£3.52 £2.93
7	MO1L4353130/1 Available to backorder	Carburetor	£152.86 £127.38
9	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
11	MO3781630 Available to backorder	Air Filter	£7.70 £6.42

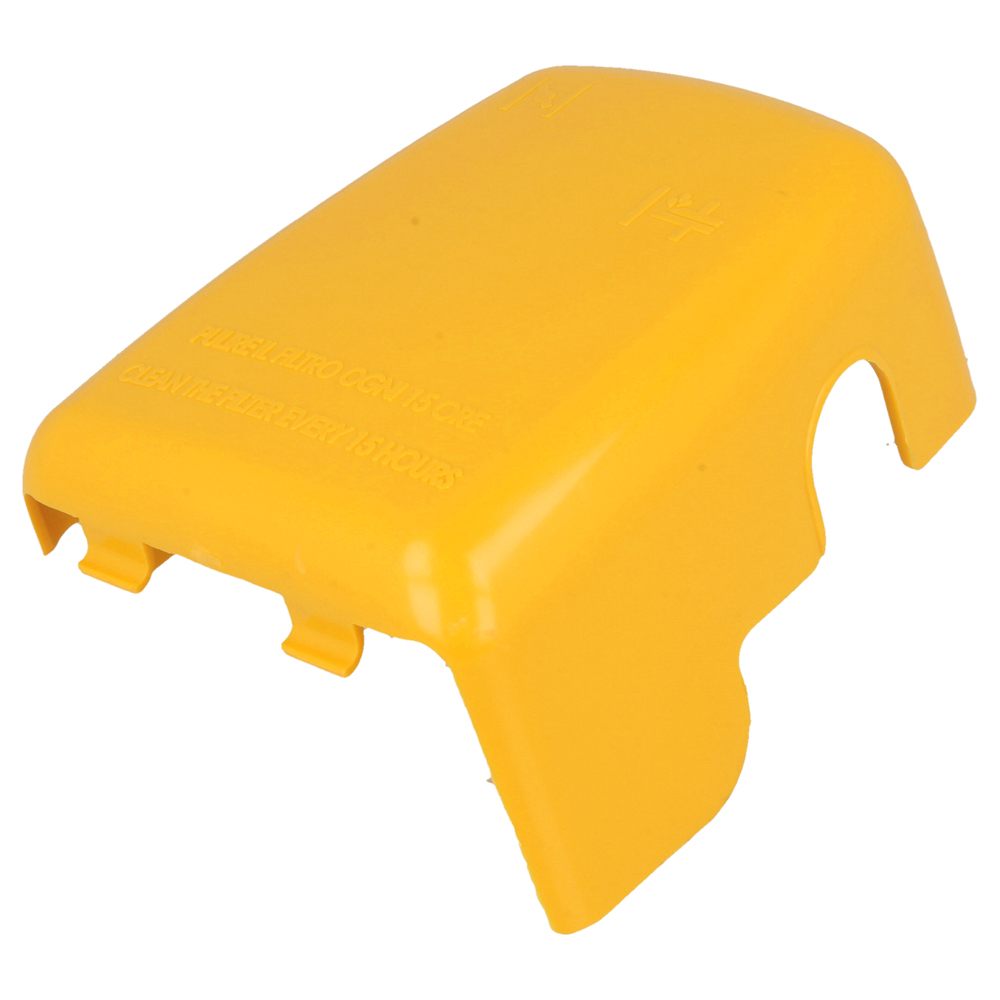

12	MO4563710 In stock	Air Filter Cover Yellow	£9.31 £7.76
14	MO3613420 Available to backorder	Washer	£1.33 £1.11
15	MO4562220 Available to backorder	Starter Pulley	£7.28 £6.07
16	MO3723640 Available to backorder	Disc For Starter Spring	£4.08 £3.40
19	MO2135040 Available to backorder	Screw	£1.38 £1.15
20	MO3784030 Available to backorder	Starter Cord	£2.11 £1.76
21	MO3750067 Available to backorder	Starter Handle	£2.12 £1.77
22	MO3745530 Available to backorder	Grommet	£3.52 £2.93
24	MO3744870 Available to backorder	Primer Carburettor	£13.38 £11.15
25	MO4353150 In stock	Diaphragm Gasket Set	£11.42 £9.52
