SB 26 J - 2010-2012 - 280720102/10 - Stiga Brushcutter Engine Diagram

Description

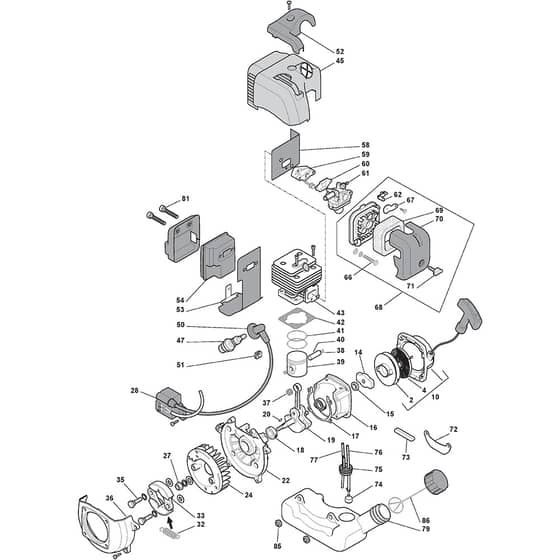

Stiga SB 26 J Parts Diagram

Product Name - SB 26 J

Model Year - 2010-2012

Model Type - TB 26 J

Art.N - 280720102/10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO123604006/0 Available to backorder	Starter Pulley	£2.69 £2.24
4	MO123430584/0 Available to backorder	Spring	£6.06 £5.05
10	MO183058031/0 Available to backorder	Starter Assy	£19.57 £16.31
14	MO183082002/1 Available to backorder	Starter Cup Ass.Y From 01-9-2009	£4.37 £3.64
15	MO119035159/0 Available to backorder	Seal Ring	£1.33 £1.11
16	MO123685024/0 Available to backorder	Crank Case	£17.04 £14.20
17	MO123280046/0 Available to backorder	Crankcase Gasket	£1.40 £1.17
18	MO3112240 Available to backorder	Ball Bearing	£10.14 £8.45
19	MO123020024/0 Available to backorder	Crankshaft	£56.32 £46.93
20	MO123072002/0 Available to backorder	Flywheel Key	£1.33 £1.11
22	MO123685025/0 Available to backorder	Crank Case	£16.46 £13.72
24	MO123880008/0 Available to backorder	Flywheel	£36.36 £30.30
27	MO123120008/0 Available to backorder	Nut	£1.69 £1.41
28	MO118801574/0 Available to backorder	Electronic Coil	£26.27 £21.89
32	MO123430582/0 Available to backorder	Spring	£1.33 £1.11
33	MO123400002/0 Available to backorder	Clutch Unit	£8.17 £6.81
35	MO123878057/0 Available to backorder	Screw	£1.33 £1.11
37	MO123235006/0 Available to backorder	Needle Bearing	£2.81 £2.34
38	MO123202005/0 Available to backorder	Washer. Piston Pin	£1.33 £1.11
39	MO123590007/0 Available to backorder	Piston	£8.65 £7.21
40	MO123760005/0 Available to backorder	Piston Pin	£1.69 £1.41
41	MO123204009/0 Available to backorder	Piston Ring	£1.69 £1.41
42	MO123280044/0 Available to backorder	Cylinder Base Gasket	£1.40 £1.17
43	MO123071021/0 Available to backorder	Cylinder From 01-9-2009	£54.90 £45.75
43	MO123071013/0 Available to backorder	Cylinder Assy To 31-8-2009	£38.00 £31.67
45	MO123087023/0 Available to backorder	Cylinder Cover Yellow	£13.10 £10.92
47	9494 In stock	Spark Plug	£3.72 £3.10
50	MO123053002/0 Available to backorder	Spark Plug Cover	£6.61 £5.51
51	MO123275023/0 Available to backorder	Grommet	£1.40 £1.17
54	MO183740021/0 Available to backorder	Muffler From 01-9-2009	£54.90 £45.75
58	MO123280084/0 Available to backorder	Intake Manifold Gasket From 01-9-2009	£6.20 £5.17
58	MO123280040/0 Available to backorder	Intake Manifold Gasket To 31-8-2009	£1.33 £1.11
59	MO123073508/0 Available to backorder	Intake Manifold To 31-8-2009	£3.52 £2.93
59	MO123073519/0 Available to backorder	Intake Manifold From 01-9-2009	£10.84 £9.03
60	MO123280059/0 Available to backorder	Intake Carburator Gasket From 01-9-2009	£1.33 £1.11
61	MO123054025/1 In stock	Carburetor From 01-9-2009	£42.23 £35.19
62	MO123315089/0 Available to backorder	Choke Lever	£1.69 £1.41
67	MO123190000/0 Available to backorder	Shutter	£1.33 £1.11
68	MO183220003/0 Available to backorder	Air Filter	£10.00 £8.33
69	MO123220011/0 In stock	Air Filter	£3.79 £3.16
70	MO123090026/0 Available to backorder	Air Cleaner Cover	£4.37 £3.64
71	MO123878056/0 Available to backorder	Screw	£1.33 £1.11
73	MO123275033/0 Available to backorder	Grommet	£1.69 £1.41
74	MO183520005/0 In stock	Intake Filter	£3.38 £2.82
75	MO123275021/0 Available to backorder	Grommet	£1.33 £1.11
76	MO123867030/0 Available to backorder	Tube	£1.33 £1.11
77	MO123867031/0 Available to backorder	Tube	£6.20 £5.17
79	MO123733002/0 Available to backorder	Fuel Tank	£5.98 £4.98
85	MO123280060/0 Available to backorder	Rubber Gasket	£1.40 £1.17
86	MO183790009/0 Available to backorder	Fuel Cap	£2.81 £2.34
