SB 25J - 2006-2007 - 282310102/06 - Stiga Brushcutter Engine Diagram

Name: SB 25J - 2006-2007 - 282310102/06 - Stiga Brushcutter Engine Diagram
SKU: sb_25j_282310102_06_engine-group
Price: 1.05 GBP
Availability: InStock

Part No. sb_25j_282310102_06_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SB 25J - 2006-2007 - 282310102/06 - Stiga Brushcutter Engine Diagram

Description

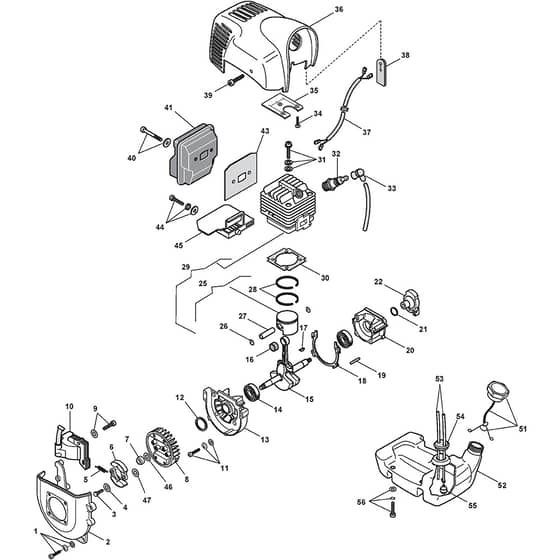

Stiga SB 25J Parts Diagram

Product Name - SB 25J

Model Year - 2006-2007

Model Type - TB 25 CX

Art.N - 282310102/06

Engine Model -

	Part No.	Details
4	MO118804045/0 Available to backorder	Washer	£1.26 £1.05
5	MO6981034 Available to backorder	Spring	£1.55 £1.29
14	MO3112240 Available to backorder	Needle Bearing	£10.14 £8.45
18	MO6981007 Available to backorder	Crankcase Gasket	£2.40 £2.00
21	MO6981008 Available to backorder	Seal Ring	£2.40 £2.00
22	MO183082002/1 In stock	Starter Cup	£4.37 £3.64
28	MO6981013 Available to backorder	Piston Ring	£6.77 £5.64
30	MO6981004 Available to backorder	Cylinder Gasket	£2.82 £2.35
31	MO112760475/0 Available to backorder	Outfit. Screws	£1.97 £1.64
33	MO6981023 Available to backorder	Cover. Spark Plug	£8.38 £6.98
36	MO6981122 Available to backorder	Yellow Cylinder Cover	£5.34 £4.45
44	MO6981116 Available to backorder	Outfit. Screws	£1.38 £1.15
54	MO118801926/0 In stock	Grommet Assy	£5.65 £4.71
55	MO4253291 Available to backorder	Intake Filter	£6.18 £5.15
