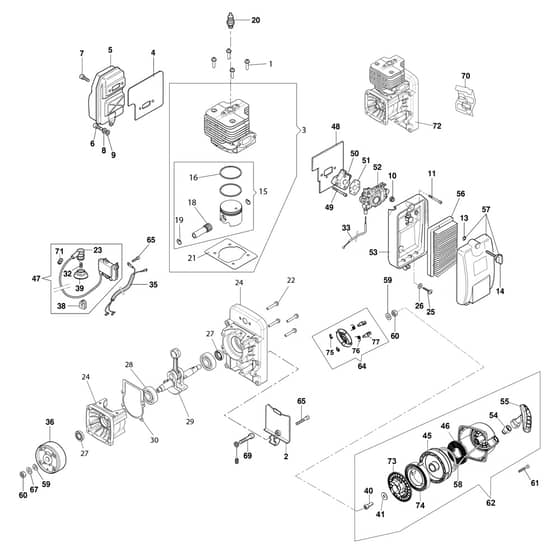

SA 2063 - - Efco Blower Starter assy and engine (up to 01-2024) Diagram

Name: SA 2063 - - Efco Blower Starter assy and engine (up to 01-2024) Diagram
SKU: sa_2063_starter_assy_and_engine_up_to_01_2024_-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SA 2063 - - Efco Blower Starter assy and engine (up to 01-2024) Diagram

Description

Efco SA 2063 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
1	EF56520107 Available to backorder	Screw	£3.68 £3.07
2	EF56520009 Available to backorder	Cover	£2.76 £2.30
3	EF56520097 Available to backorder	Gasket	£8.74 £7.28
4	EF56520010R Available to backorder	Gasket	£2.76 £2.30
6	EF3801020 Available to backorder	Screw	£0.90 £0.75
7	EF005100906A Available to backorder	Screw	£0.90 £0.75
8	EF3819009 Available to backorder	Washer	£0.90 £0.75
9	EF3916006R Available to backorder	Washer	£0.90 £0.75
10	EF3912005 Available to backorder	Nut	£0.90 £0.75
11	EF61112005 Available to backorder	Screw	£1.84 £1.53
13	EF3049005R Available to backorder	O-Ring	£0.92 £0.77
15	EF56520102 Available to backorder	Spacer	£1.84 £1.53
16	EF56520098 Available to backorder	Plug	£13.56 £11.30
17	EF56522023 Available to backorder	Piston Assy	£118.42 £98.68
18	EF56522024 Available to backorder	Complete Cylinder	£266.16 £221.80
19	EF56520095R Available to backorder	Piston Ring	£20.28 £16.90
20	8731 In stock	Spark Plug	£4.44 £3.70
21	EF56520132 Available to backorder	Seal Ring	£14.66 £12.22
22	EF56520105 Available to backorder	Seal Ring	£8.74 £7.28
23	EF094600097AR Available to backorder	Spark Plug Cap	£5.44 £4.53
24	EF56520129R Available to backorder	Crankcase	£117.40 £97.83
25	EF3960091AR Available to backorder	Screw	£2.34 £1.95
27	EF56520100 Available to backorder	Spacer	£5.44 £4.53
28	EF56520101 Available to backorder	Bearing	£16.22 £13.52
29	EF56520096 Available to backorder	Gasket	£14.06 £11.72
30	EF56520131R Available to backorder	Bearing	£11.68 £9.73
31	EF56520099 Available to backorder	Crankshaft	£217.20 £181.00
32	EF094600169AR Available to backorder	Spring	£2.76 £2.30
33	EF56520067AR Available to backorder	Throttle Cable	£19.98 £16.65
34	EF3025025 Available to backorder	Ring	£1.84 £1.53
35	EF56520204R Available to backorder	Cable	£27.38 £22.82
37	EF3860096R Available to backorder	Screw	£0.90 £0.75
38	EF56520122 Available to backorder	Grommet	£0.90 £0.75
39	EF56520033 Available to backorder	Cap	£3.68 £3.07
40	EF3801010R Available to backorder	Screw	£1.14 £0.95
41	EF3918020R Available to backorder	Washer	£1.84 £1.53
42	EF56520040AR Available to backorder	Plate	£0.90 £0.75
43	EF56520039AR Available to backorder	Shaft Joint	£2.76 £2.30
44	EF3027005R Available to backorder	Ring	£0.90 £0.75
45	EF56520038AR Available to backorder	Pulley	£7.00 £5.83
46	EF004000132R Available to backorder	Spring	£13.52 £11.27
47	EF56520124A Available to backorder	Ignition Coil	£80.44 £67.03
48	EF56520021R Available to backorder	Gasket	£3.68 £3.07
49	EF4175088R Available to backorder	Screw	£0.90 £0.75
50	EF56520022AR Available to backorder	Insulator	£27.98 £23.32
51	EF56520023A Available to backorder	Gasket	£0.96 £0.80
53	EF56522033R Available to backorder	Support	£18.84 £15.70
54	EF56520066 Available to backorder	Bushing	£1.84 £1.53
55	EF097000064AR Available to backorder	Starter Handle	£3.68 £3.07
56	EF56520025R Available to backorder	Air Filter	£16.42 £13.68
57	EF56520157R Available to backorder	Filter Cover	£13.22 £11.02
58	EF4098073R Available to backorder	Starter Rope	£3.68 £3.07
59	EF005000343R Available to backorder	Washer	£0.90 £0.75
60	EF3912011R Available to backorder	Nut	£5.76 £4.80
62	EF56520167CR Available to backorder	Starter Assy	£43.94 £36.62
64	EF56520007R Available to backorder	Clutch Driver	£5.44 £4.53
65	EF4175077 Available to backorder	Screw	£0.90 £0.75
66	EF3028013R Available to backorder	Key	£3.68 £3.07
67	EF3916010R Available to backorder	Washer	£0.90 £0.75
69	EF3801028 Available to backorder	Screw	£0.90 £0.75
71	EF4161211R Available to backorder	Bush	£1.72 £1.43
73	EF56520237AR Available to backorder	Starter Assy	£36.38 £30.32
74	EF3801009 Available to backorder	Screw	£0.90 £0.75
75	EF3918005R Available to backorder	Washer	£2.44 £2.03
79	EF50070123R Available to backorder	Starter Rope	£1.84 £1.53
80	EF61450044AR Available to backorder	Starter Spring	£5.54 £4.62
84	EF3026004 Available to backorder	Ring	£0.90 £0.75
