SA 2063 - - Efco Blower Deck and fan assy Diagram

Name: SA 2063 - - Efco Blower Deck and fan assy Diagram
SKU: sa_2063_deck_and_fan_assy-group
Price: 0.9 GBP
Availability: InStock

Part No. sa_2063_deck_and_fan_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SA 2063 - - Efco Blower Deck and fan assy Diagram

Description

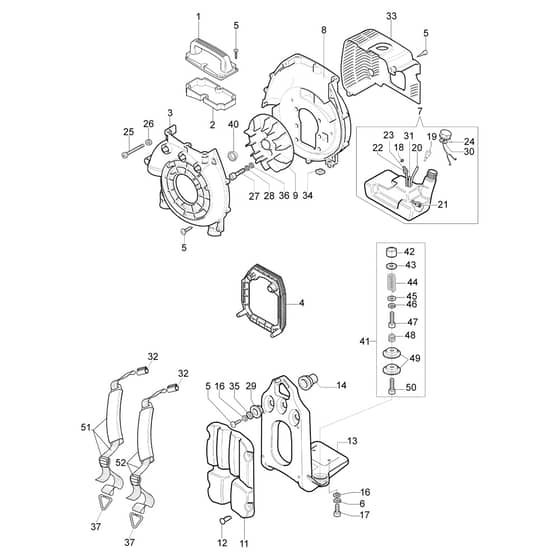

Efco SA 2063 Parts Diagram

Model Year -

	Part No.	Details
1	EF56520035A Available to backorder	Cover	£9.00 £7.50
2	EF56520034 Available to backorder	Plate	£5.64 £4.70
3	EF56520001DR Available to backorder	Half Volute	£40.92 £34.10
4	EF56520112 Available to backorder	Guard	£13.68 £11.40
5	EF3960091AR Available to backorder	Screw	£2.56 £2.13
6	EF3819006R Available to backorder	Washer	£1.58 £1.32
9	EF56520003BR Available to backorder	Impeller	£35.52 £29.60
11	EF56520246AR Available to backorder	Padding	£44.64 £37.20
12	EF3055054 Available to backorder	Clip	£3.84 £3.20
13	EF56520111 Available to backorder	Frame	£71.28 £59.40
14	EF56520070R Available to backorder	Support	£9.00 £7.50
18	EF61110162BR Available to backorder	Bushing	£2.66 £2.22
19	EF61070011AR Available to backorder	Breather Valve	£11.40 £9.50
20	EF56520160R Available to backorder	Tube	£3.48 £2.90
21	EF61400322R Available to backorder	Fuel Filter	£7.32 £6.10
22	EF4161211R Available to backorder	Bush	£1.87 £1.56
24	EF50340266R Available to backorder	Cap	£10.20 £8.50
25	EF3901064 Available to backorder	Screw	£1.08 £0.90
26	EF3914003R Available to backorder	Nut	£1.15 £0.96
27	EF3801026 Available to backorder	Screw	£1.08 £0.90
28	EF3819009 Available to backorder	Washer	£1.08 £0.90
29	EF56520042R Available to backorder	Cover	£3.01 £2.51
30	EF099900090R Available to backorder	Ring	£5.64 £4.70
31	EF56520159R Available to backorder	Tube	£3.60 £3.00
32	EF365200150AR Available to backorder	Clamp	£2.14 £1.78
34	EF3980015 Available to backorder	Nut	£1.08 £0.90
35	EF56520043R Available to backorder	Flange	£2.93 £2.44
36	EF3916006R Available to backorder	Washer	£1.08 £0.90
40	EF56520127R Available to backorder	Cap	£2.53 £2.11
41	EF56020136 Available to backorder	Anti-Vibration Springs Assy	£20.16 £16.80
43	EF3918005R Available to backorder	Washer	£2.66 £2.22
44	EF50070024R Available to backorder	Spring	£5.64 £4.70
45	EF3918010R Available to backorder	Washer	£1.98 £1.65
46	EF3833073R Available to backorder	Washer	£1.08 £0.90
47	EF3801016R Available to backorder	Screw	£1.08 £0.90
48	EF50070049R Available to backorder	Support	£2.69 £2.24
50	EF3960112 Available to backorder	Screw	£1.08 £0.90
