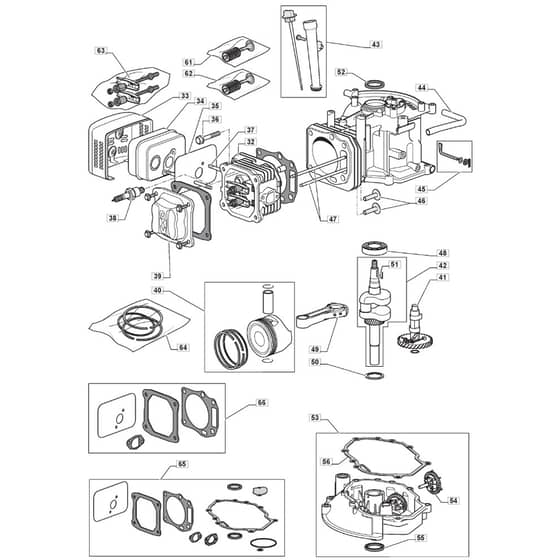

S511 PD - 2010-2011 - 299532043/M10 - Mountfield Rotary Mower WBE0701 Cylinder Diagram

Name: S511 PD - 2010-2011 - 299532043/M10 - Mountfield Rotary Mower WBE0701 Cylinder Diagram
SKU: s511_pd_299532043_m10_wbe0701_cylinder-group
Price: 3.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S511 PD - 2010-2011 - 299532043/M10 - Mountfield Rotary Mower WBE0701 Cylinder Diagram

Description

Mountfield S511 PD Parts Diagram

Product Name - S511PD

Model Year - 2010-2011

Model Type - NTL 534 TR

Art.N - 299532043/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550244/0 Available to backorder	Cylinder Head Assy	£126.70 £105.58
33	MO118550268/1 Available to backorder	Muffler Guard	£40.82 £34.02
34	MO118550269/0 Available to backorder	Muffler	£35.20 £29.33
35	MO118550270/0 Available to backorder	Muffler Gasket	£12.11 £10.09
36	MO118550297/0 In stock	Screw	Was £6.02 £5.02 Special Price £3.73 £3.11
37	MO118550298/0 Available to backorder	Stud Bolt	£6.76 £5.63
38	3381 In stock	Spark Plug	£4.44 £3.70
39	MO118550296/1 Available to backorder	Cover Comp. Head	£14.64 £12.20
40	MO118550278/0 Available to backorder	Piston Assy	£50.53 £42.11
41	MO118550271/0 Available to backorder	Camshaft Assy	£36.46 £30.38
42	MO118550281/0 Available to backorder	Crankshaft	£114.02 £95.02
43	MO118550311/2 Available to backorder	Oil Filler Assy	£7.88 £6.57
44	MO118550377/0 Available to backorder	Breather Fuel Pipe	£4.50 £3.75
45	MO118550308/0 Available to backorder	Shaft. Governor Arm Assy	£10.36 £8.63
46	MO118550291/0 Available to backorder	Valve Lifter Assy	£9.72 £8.10
66	MO118550406/0 Available to backorder	Cylinder Head Gasket Kit	£26.88 £22.40
