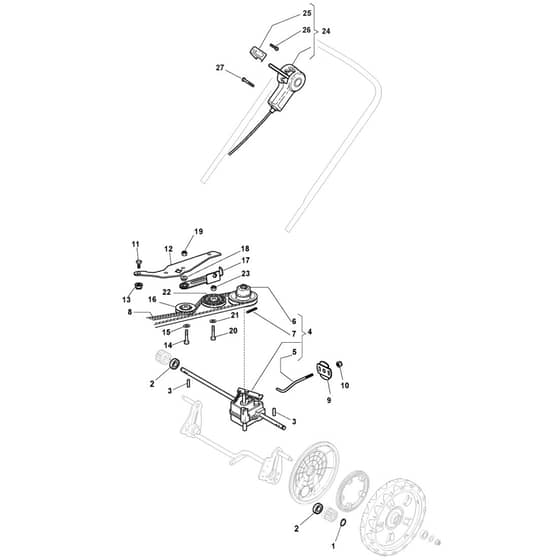

S510 PD 4S - 2020 - 299533243/MTF - Mountfield Rotary Mower Transmission Diagram

Name: S510 PD 4S - 2020 - 299533243/MTF - Mountfield Rotary Mower Transmission Diagram
SKU: s510_pd_4s_299533243_mtf_transmission-group
Price: 1.16 GBP
Availability: InStock

Part No. s510_pd_4s_299533243_mtf_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S510 PD 4S - 2020 - 299533243/MTF - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield S510 PD 4S Parts Diagram

Product Name - S510 PD 4S

Model Year - 2020

Model Type - NTL 534 TR 4S

Art.N - 299533243/MTF

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.55 £1.29
2	MO119216035/0 In stock	Bearing	£3.52 £2.93
3	MO122753000/0 In stock	Pin	£1.55 £1.29
4	MO181003102/1 Available to backorder	Gear Box Only for Models with "Flat" handle	£154.86 £129.05
4	MO181003096/3 Available to backorder	Gear Box	£147.79 £123.16
5	MO122033285/0 Available to backorder	Adjustment Rod	£6.90 £5.75
6	MO122601925/0 Available to backorder	Pulley To 31-8-2013	£66.16 £55.13
6	MO122601932/0 Available to backorder	Pulley From 01-9-2013	£57.42 £47.85
7	MO112645700/0 Available to backorder	Elastic Pin	£1.63 £1.36
8	MO135064010/0 In stock	Belt	£12.66 £10.55
9	MO322675113/0 Available to backorder	Washer	£1.97 £1.64
10	MO112154510/0 In stock	Nut	£1.55 £1.29
11	MO112791011/0 Available to backorder	Screw	£1.39 £1.16
12	MO322806625/2 Available to backorder	Support	£5.47 £4.56
13	MO112292102/0 In stock	Nut	£1.70 £1.42
14	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
15	MO112523050/0 In stock	Washer	£1.57 £1.31
16	MO122601915/0 In stock	Pulley	£21.41 £17.84
27	MO112728702/0 Available to backorder	Self-Tap Screw Pt Torx Wn1451 K50 X 40	£1.55 £1.29
