S501R V LS - 2019-2020 - 294519543/M19 - Mountfield Rotary Mower Upper Handle Diagram

Name: S501R V LS - 2019-2020 - 294519543/M19 - Mountfield Rotary Mower Upper Handle Diagram
SKU: s501r_v_ls_294519543_m19_upper_handle-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S501R V LS - 2019-2020 - 294519543/M19 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield S501R V LS Parts Diagram

Product Name - S501R V LS

Model Year - 2019-2020

Model Type - MP2 504 SVE-R

Art.N - 294519543/M19

Engine Model - ST 170 LS OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005219/1 Available to backorder	Right Bracket	£33.86 £28.22
2	MO381005221/1 Available to backorder	Left Bracket From 03-10-2016	£38.00 £31.67
3	MO381005239/0 Available to backorder	Cover. Right From 03-10-2016	£16.34 £13.62
3	MOREPLA0000042 Available to backorder	Cover. Right To 03-10-2016	£50.21 £41.84
4	MOREPLA0000043 Available to backorder	Cover. Left To 03-10-2016	£54.35 £45.29
4	MO381005241/0 Available to backorder	Cover. Left From 03-10-2016	£16.34 £13.62
5	MO122517885/0 Available to backorder	Pin	£3.24 £2.70
6	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
7	MO381005243/0 In stock	External Guide From 17-10-2016	£23.65 £19.71
8	MO322246106/0 Available to backorder	Cursor	£12.95 £10.79
9	MO381005245/0 Available to backorder	Internal Guide From 17-10-2016	£16.19 £13.49
9	MOREPLA0000040 Available to backorder	Cursor Guide OLD aluminium parts its necessary to supply new version and new version ..1 of handle To 17-10-2016	£39.84 £33.20
10	MO322551639/0 In stock	Cable Holder To S.N 20BA2WBH072915	£14.44 £12.03
10	MO322551684/0 Available to backorder	Cable Holder Ø25 From S.N 20BA2WBH072916	£8.87 £7.39
11	MO112727784/0 Available to backorder	Screw for FIX rpm	£1.40 £1.17
12	MO112727786/0 Available to backorder	Screw for Throttle Cable	£1.97 £1.64
13	MO125430202/1 Available to backorder	Spring	£1.69 £1.41
14	MO112727799/0 Available to backorder	Screw	£1.82 £1.52
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO381007578/1 Available to backorder	Handle. Upper Part OLD aluminium parts its necessary to supply new version and new version ..1 of handle To 17-10-2016	£85.87 £71.56
16	MO381007595/1 Available to backorder	Handle. Upper Part	£85.87 £71.56
17	MO322806652/0 Available to backorder	Internal Support. Black	£6.47 £5.39
18	MO322806653/0 Available to backorder	External Support. Black	£5.06 £4.22
19	MO112728713/0 Available to backorder	Screw	£1.40 £1.17
20	MO381030123/0 Available to backorder	Cable Com. Cursor. Assy	£10.14 £8.45
21	MO381030118/0 In stock	Clutch Cable	£20.14 £16.78
22	MO181030053/0 In stock	Cable. Thread Engine Brake	£15.62 £13.02
23	MO322394544/0 Available to backorder	Lever. Black	£2.95 £2.46
24	MO322722839/0 Available to backorder	External Protection. Black	£3.52 £2.93
25	MO322722838/0 Available to backorder	Internal Protection. Black	£3.52 £2.93
26	MO112728696/0 Available to backorder	Screw	£1.55 £1.29

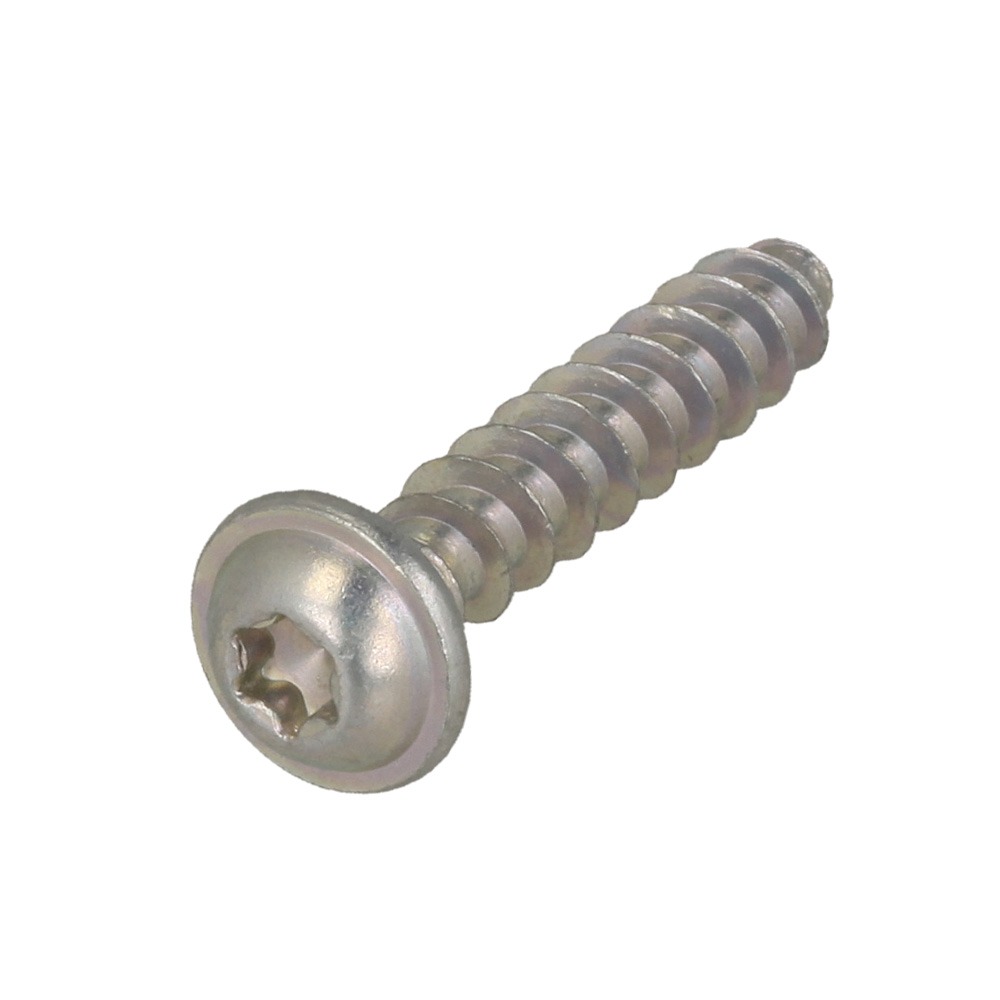

27	MO112728705/0 Available to backorder	Screw	£2.68 £2.23
28	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
29	MO122430313/0 In stock	Guide Spring For models without electric start	£3.94 £3.28
30	MO181003490/0 Available to backorder	Control Lever To 25-3-2021	£38.20 £31.83
30	MO181003437/0 Available to backorder	Lever. Engine Brake Black From 26-3-2021	£40.62 £33.85

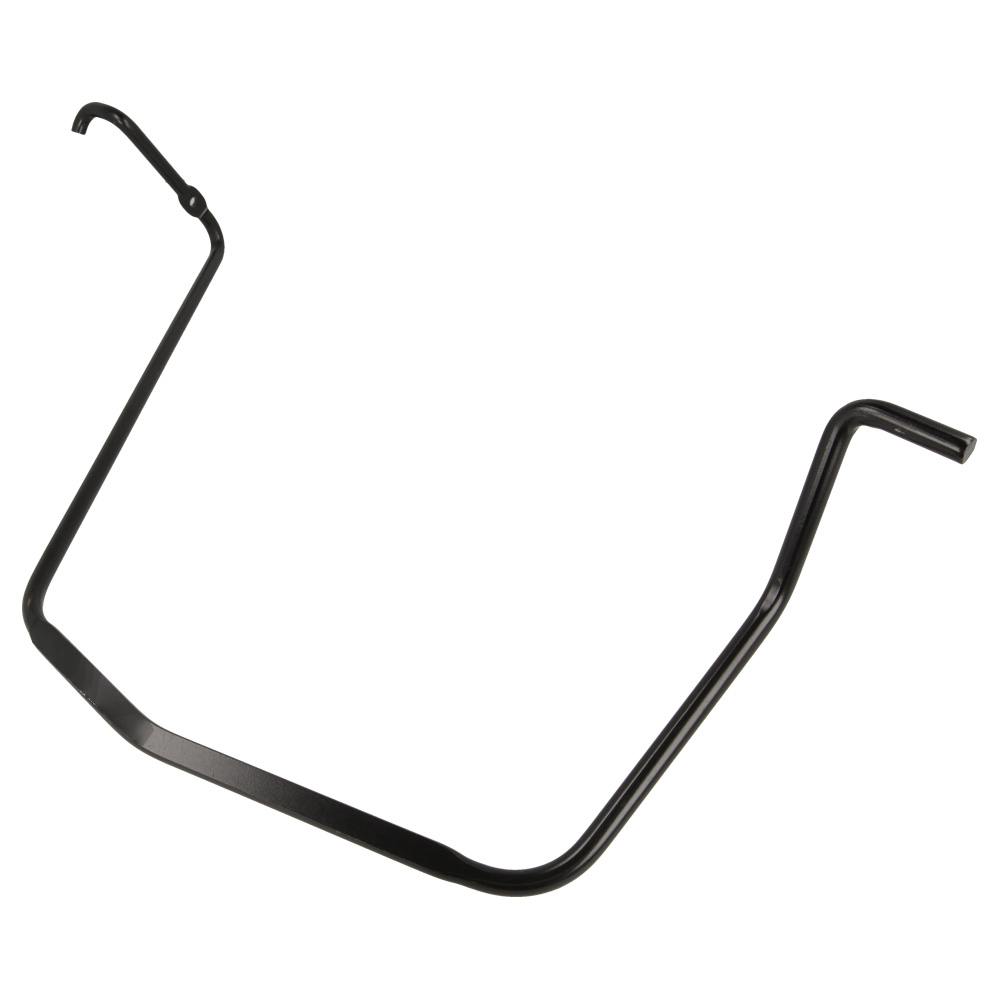

31	MO181003438/1 Available to backorder	Drive Control Lever	£33.79 £28.16
32	MO112735651/0 Available to backorder	Screw	£1.55 £1.29
33	MO181005541/0 In stock	Throttle Cable	£27.88 £23.23
35	MO118390020/0 Available to backorder	Conduit Clip	£1.82 £1.52
37	MO122430318/0 Available to backorder	Guide Spring For models without electric start	£11.69 £9.74
38	MO112735660/0 Available to backorder	Screw	£1.55 £1.29
39	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
40	MO122430323/0 Available to backorder	Spring	£2.68 £2.23
