S501R PD - 2019-2021 - 294519043/M19 - Mountfield Rotary Mower Blade Diagram

Name: S501R PD - 2019-2021 - 294519043/M19 - Mountfield Rotary Mower Blade Diagram
SKU: s501r_pd_294519043_m19_blade-group
Price: 1.05 GBP
Availability: InStock

Part No. s501r_pd_294519043_m19_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S501R PD - 2019-2021 - 294519043/M19 - Mountfield Rotary Mower Blade Diagram

Description

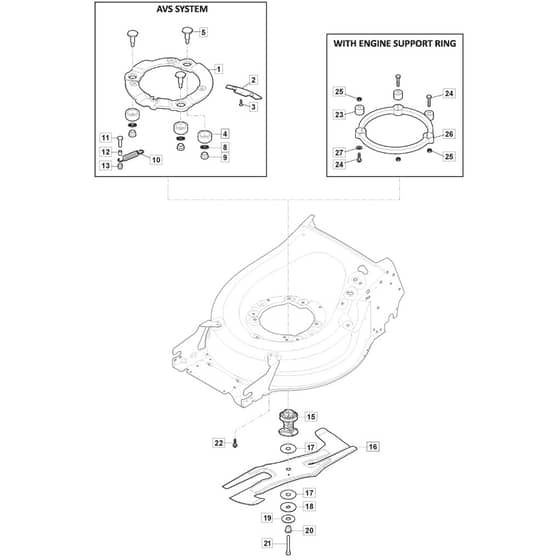

Mountfield S501R PD Parts Diagram

Product Name - S501R PD

Model Year - 2019-2021

Model Type - MP2 504 S-R

Art.N - 294519043/M19

Engine Model - ST170 OHV Autochoke

	Part No.	Details
1	MO322207226/1 In stock	Flange	£35.20 £29.33
2	MO322551536/0 Available to backorder	Plate	£3.66 £3.05
3	MO112728210/0 In stock	Screw	£1.39 £1.16
4	MO322250015/1 In stock	Grommet	£7.12 £5.93
5	MO122519816/0 In stock	Pin	£12.67 £10.56
8	MO112543002/0 In stock	Washer	£1.26 £1.05
9	MO112155000/0 In stock	Nut	£1.55 £1.29
10	MO122450439/0 In stock	Spring	£3.38 £2.82
11	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
12	MO122170846/0 Available to backorder	Spacer	£3.10 £2.58
13	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO122465648/0 Available to backorder	Blade Hub D.22	£15.62 £13.02
16	MO1111-9256-02 Available to backorder	Blade Stiga Packed into 181004415.0	£65.98 £54.98
16	MO181004415/0 In stock	Blade	£49.70 £41.42
17	MO322672110/1 In stock	Washer	£1.84 £1.53
18	MO322672105/0 In stock	Washer	£3.55 £2.96
19	MO112508120/0 In stock	Cup Spring	£3.52 £2.93
20	MO122041943/0 In stock	Bush	£9.73 £8.11
21	MO112736820/0 In stock	Screw	£2.95 £2.46
22	MO112735108/1 In stock	Screw To fix the Engine	£2.11 £1.76
23	MO122170835/0 Available to backorder	Spacer	£6.64 £5.53
27	MO112521350/0 In stock	Washer M8 8.4 X 16 X 1.6	£1.55 £1.29
