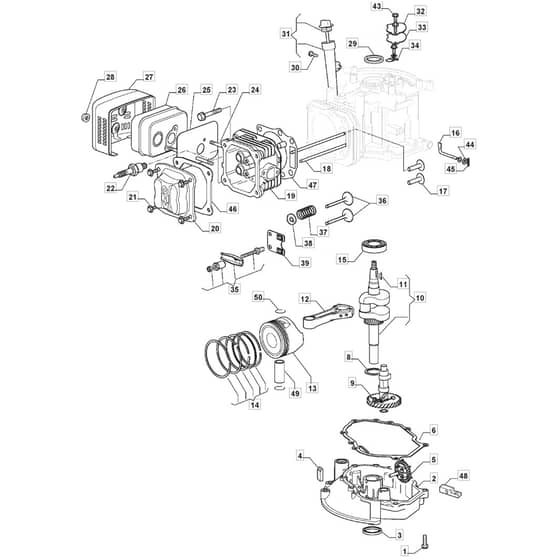

S501R PD - 2016-2018 - 294519043/M16 - Mountfield Rotary Mower Crankshaft Diagram

Name: S501R PD - 2016-2018 - 294519043/M16 - Mountfield Rotary Mower Crankshaft Diagram
SKU: s501r_pd_294519043_m16_crankshaft-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S501R PD - 2016-2018 - 294519043/M16 - Mountfield Rotary Mower Crankshaft Diagram

Description

Mountfield S501R PD Parts Diagram

Product Name - S501R PD

Model Year - 2016-2018

Model Type - MP2 504 S-R

Art.N - 294519043/M16

Engine Model - ST55

Be the first to review this product

0 product questions

	Part No.	Details
2	MO118551208/0 Available to backorder	Crankcase Cover	£95.74 £79.78
3	MO118550379/0 In stock	Oil Seal	£6.76 £5.63
5	MO118550312/1 Available to backorder	Speed Governor Assy	£12.11 £10.09
6	MO118550380/1 Available to backorder	Crankcase Gasket	£16.06 £13.38
8	MO118550283/0 Available to backorder	Washer	£3.38 £2.82
9	MO118550271/0 Available to backorder	Camshaft Assy	£36.46 £30.38
10	MO118550385/0 Available to backorder	Crankshaft	£114.02 £95.02
11	MO118550288/0 Available to backorder	Woodruff Key	£6.20 £5.17
12	MO118550284/0 Available to backorder	Connecting Rod Assy	£39.42 £32.85
13	MO118551213/0 Available to backorder	Piston	£24.37 £20.31
14	MO118550286/0 Available to backorder	Piston. Ring Set	£26.04 £21.70
15	MO118550280/0 Available to backorder	Ball Bearing	£23.36 £19.47
16	MO118550936/0 Available to backorder	Shaft. Governor Arm	£6.47 £5.39
17	MO118550291/0 Available to backorder	Valve Lifter Assy	£9.72 £8.10
19	MO118550244/0 Available to backorder	Cylinder Head	£126.70 £105.58
22	3381 In stock	Spark Plug	£4.44 £3.70
23	MO118550297/0 In stock	Screw	Was £6.02 £5.02 Special Price £3.73 £3.11
24	MO118550298/0 Available to backorder	Stud Bolt	£6.76 £5.63
25	MO118550270/0 Available to backorder	Muffler Gasket	£12.11 £10.09
26	MO118550269/0 Available to backorder	Muffler	£35.20 £29.33
27	MO118550268/1 Available to backorder	Muffler Guard	£40.82 £34.02
29	MO118550300/0 Available to backorder	Oil Seal	£7.25 £6.04
30	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
31	MO118550311/2 Available to backorder	Oil Filler Assy	£7.88 £6.57
35	MO118550273/0 Available to backorder	Valve Arm Set	£13.81 £11.51
36	MO118550910/0 Available to backorder	Valve Assy. Intake + Exhaust	£21.54 £17.95
43	MO112790500/0 Available to backorder	Screw	£1.97 £1.64
46	MO118551237/0 Available to backorder	Cylinder Head Gasket	£4.50 £3.75
47	MO118551233/0 Available to backorder	Cylinder Gasket	£10.56 £8.80
48	MO118551269/0 Available to backorder	Plate.Governor Holder	£7.03 £5.86
49	MO118550915/0 Available to backorder	Piston Pin	£5.35 £4.46
50	MO118550914/0 Available to backorder	Piston Pin Clip	£1.55 £1.29
