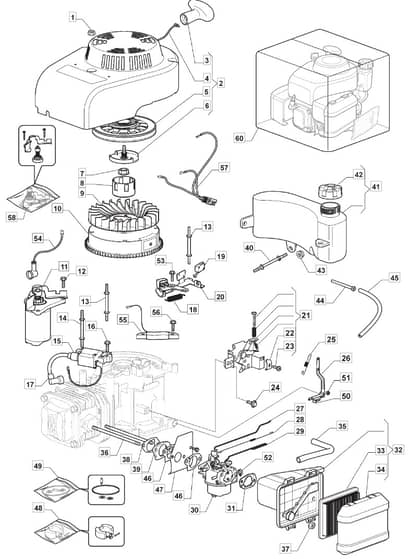

Mountfield S481 PD ES Parts Diagram

Product Name - S481 PD ES

Model Year - 2016-2018

Model Type - MP1 504 SE

Art.N - 294502543/M16

Engine Model - ST55 ES

	Part No.	Details
1	MO112292102/0 In stock	Nut	£1.70 £1.42
2	MO118550276/1 In stock	Starter Assy	£52.08 £43.40
3	MO118550274/0 Available to backorder	Starter Handle	£15.49 £12.91
4	MO118550779/0 In stock	Starting Rope	£7.18 £5.98
5	MO118550778/0 In stock	Starter Pulley	£26.88 £22.40
6	MO118550275/1 In stock	Starter Pawl Set	£12.25 £10.21
7	MO118550336/0 Available to backorder	Nut	£6.05 £5.04
8	MO118550335/0 Available to backorder	Starter Cup	£22.51 £18.76
9	MO118550254/0 Available to backorder	Flywheel Fan To 31-8-2016	£19.98 £16.65
10	MO118551363/0 Available to backorder	Flywheel Ass.Y From 01-9-2016	£80.11 £66.76
11	MO118551365/0 Available to backorder	Start Motor Assy From 01-9-2016	£121.87 £101.56
11	MO118550401/1 Available to backorder	Start Motor Assy To 31-8-2016	£148.14 £123.45
12	MO112674550/0 Available to backorder	Screw	£1.63 £1.36
14	MO118550301/0 Available to backorder	Stud Bolt	£6.62 £5.52
15	MO118550255/1 In stock	Electronic Coil	£51.17 £42.64
16	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
19	MO118550400/0 Available to backorder	Micro	£24.70 £20.58
21	MO118550259/0 Available to backorder	Remote Control Assy	£29.57 £24.64
60	MO118551443/0 Available to backorder	Engine Assembly 160Cc Wbe0701-Es	£384.74 £320.62
