S481 HP - 2019-2020 - 294501843/M19 - Mountfield Rotary Mower Grass Bag Diagram

Name: S481 HP - 2019-2020 - 294501843/M19 - Mountfield Rotary Mower Grass Bag Diagram
SKU: s481_hp_294501843_m19_grass_bag-group
Price: 1.29 GBP
Availability: InStock

Part No. s481_hp_294501843_m19_grass_bag-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S481 HP - 2019-2020 - 294501843/M19 - Mountfield Rotary Mower Grass Bag Diagram

Description

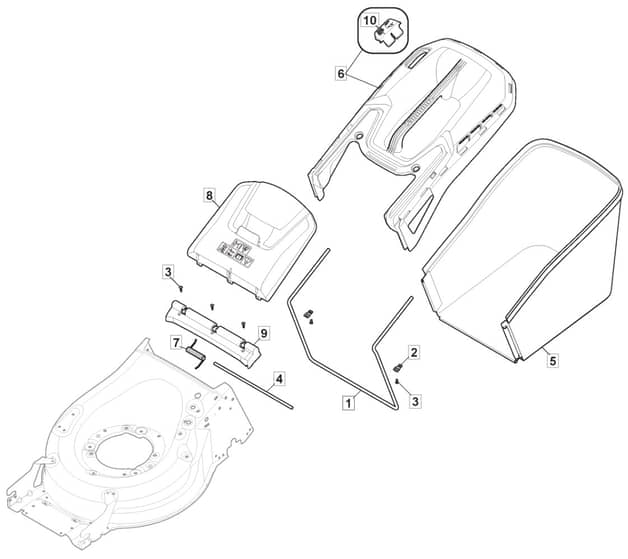

Mountfield S481 HP Parts Diagram

Product Name - S481 HP

Model Year - 2019-2020

Model Type - MP1 504 Q

Art.N - 294501843/M19

Engine Model - ST140 OHV Autochoke

	Part No.	Details
1	MO181006411/1 Available to backorder	Fabric Box Frame	£13.25 £11.04
2	MO322557177/0 Available to backorder	Plate	£1.63 £1.36
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO122517884/0 Available to backorder	Pin	£5.06 £4.22
5	MO181102349/0 Available to backorder	Cancas Grasscatcher Black without Logo	£42.22 £35.18
6	MO381486039/0 Available to backorder	Box. Upper Side Black Black with Grey Indicator	£28.14 £23.45
7	MO122450479/0 Available to backorder	Spring	£3.38 £2.82
8	MO322600308/0 Available to backorder	Stone Guard. Black	£14.22 £11.85
9	MO322109569/0 Available to backorder	Black Stone Guard Support	£4.64 £3.87
10	MO322486424/0 Available to backorder	Grasscatcher Full Indicator [Grey]	£1.97 £1.64
