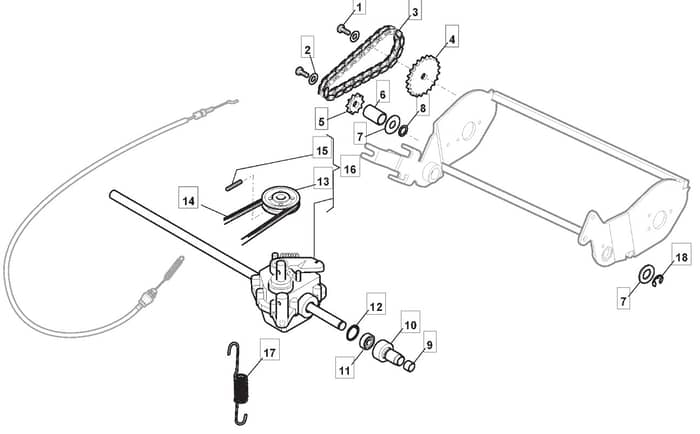

S461R PD LS - 2019-2020 - 299489543/M19 - Mountfield Rotary Mower Roller Diagram

Name: S461R PD LS - 2019-2020 - 299489543/M19 - Mountfield Rotary Mower Roller Diagram
SKU: s461r_pd_ls_299489543_m19_roller-group
Price: 1.29 GBP
Availability: InStock

Part No. s461r_pd_ls_299489543_m19_roller-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S461R PD LS - 2019-2020 - 299489543/M19 - Mountfield Rotary Mower Roller Diagram

Description

Mountfield S461R PD LS Parts Diagram

Product Name - S461R PD LS

Model Year - 2019-2020

Model Type - NTL 484 TR/E-R

Art.N - 299489543/M19

Engine Model - ST170 LS OHV Autochoke

	Part No.	Details
1	MO112735662/1 Available to backorder	Screw	£2.40 £2.00
2	MO112523040/0 In stock	Washer	£1.55 £1.29
3	MO1111-3562-01 In stock	Chain	£20.08 £16.73
4	MO1111-3424-01 In stock	Ring Gear	£18.30 £15.25
5	MO1111-3423-01 In stock	Ring Gear	£14.80 £12.33
6	MO122170970/0 Available to backorder	Spacer	£2.53 £2.11
7	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
8	MO321660100/0 Available to backorder	Washer	£1.97 £1.64
9	MO322038404/0 In stock	Brass	£1.55 £1.29
10	MO322785126/0 In stock	Gear Box Support	£11.54 £9.62
11	MO119216035/0 In stock	Bearing	£3.52 £2.93
12	MO112610095/0 Available to backorder	Snap Ring	£1.70 £1.42
13	MO122601909/0 In stock	Pulley	£5.65 £4.71
14	MO1111-9123-01 In stock	Drive Belt Stiga Packed into 135063800.0	£9.17 £7.64
18	MO112000957/0 Available to backorder	Circlip D.10	£1.63 £1.36
