S461R PD ES - 2012-2017 - 299489543/M12 - Mountfield Rotary Mower Electric Start Diagram

Name: S461R PD ES - 2012-2017 - 299489543/M12 - Mountfield Rotary Mower Electric Start Diagram
SKU: s461r_pd_es_299489543_m12_electric_start-group
Price: 1.16 GBP
Availability: InStock

Part No. s461r_pd_es_299489543_m12_electric_start-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S461R PD ES - 2012-2017 - 299489543/M12 - Mountfield Rotary Mower Electric Start Diagram

Description

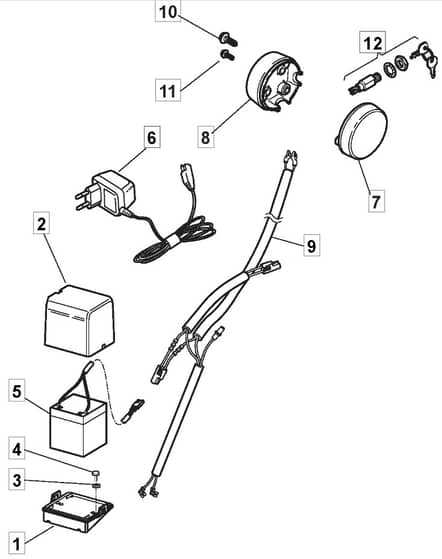

Mountfield S461R PD ES Parts Diagram

Product Name - S461R PD ES

Model Year - 2012-2017

Model Type - NTL 484 TR/E-R

Art.N - 299489543/M12

Engine Model - ST55 ES

	Part No.	Details
1	MO322785123/0 In stock	Battery Support	£4.93 £4.11
2	MO322109530/0 Available to backorder	Battery Cover	£4.93 £4.11
3	MO112521310/0 Available to backorder	Washer	£1.39 £1.16
5	MO118120064/0 In stock	Battery	£46.48 £38.73
6	MO118204120/1LC In stock	Battery Charger	£29.50 £24.58
7	MO322722800/0 Available to backorder	Starting Block Inner Half-Bearing	£10.50 £8.75
8	MO322722801/0 Available to backorder	Starting Block Outer Half-Bearing	£1.84 £1.53
10	MO112728702/0 Available to backorder	Screw	£1.55 £1.29
11	MO112728706/0 In stock	Screw	£1.60 £1.33
12	MO118450051/0 In stock	Ignition Switch Assembly	£18.59 £15.49
