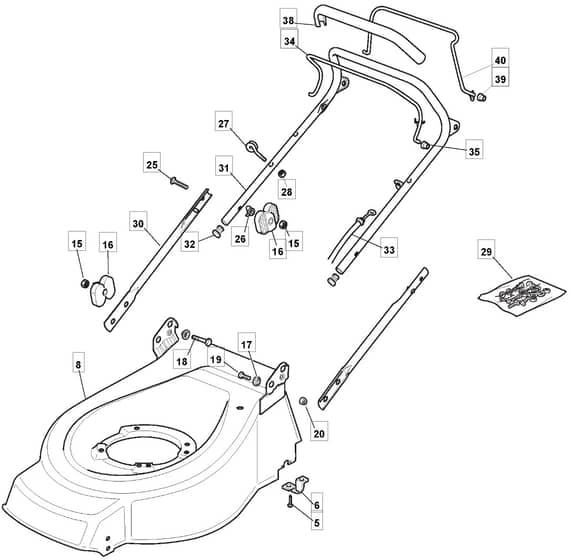

S461R PD ES - 2009-2013 - 294489543/UM9 - Mountfield Rotary Mower Deck Diagram

Description

Mountfield S461R PD ES Parts Diagram

Product Name - S461R PD ES

Model Year - 2009-2013

Model Type - TD 484 TR/E

Art.N - 294489543/UM9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
6	MO322545154/0 Available to backorder	Plate	£1.55 £1.29
15	MO112293202/0 Available to backorder	Nut	£1.97 £1.64
16	MO122399803/0 Available to backorder	Knob	£1.69 £1.41
17	MO322041955/0 Available to backorder	Bushing	£1.49 £1.24
19	MO112792610/0 Available to backorder	Screw	£1.55 £1.29
20	MO112155000/0 In stock	Nut	£1.55 £1.29
25	MO112819125/0 Available to backorder	Screw	£1.39 £1.16
26	MO122680006/1 In stock	Washer	£1.75 £1.46
27	MO122430309/0 Available to backorder	Spring	£3.10 £2.58
28	MO112154330/0 In stock	Nut	£1.55 £1.29
32	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
33	MO181000757/0 Available to backorder	Cable. Thread Engine Brake ST. 140-160cc Engine	£13.37 £11.14
34	MO181003291/3 Available to backorder	Lever. Engine Brake From 01-9-2006	£14.92 £12.43
35	MO122041966/0 Available to backorder	Bushing	£1.55 £1.29
38	MO122291050/0 Available to backorder	Handgrip Black	£14.22 £11.85
39	MO322041965/1 Available to backorder	Bushing From 01-9-2004	£1.55 £1.29
40	MO181003288/1 Available to backorder	Driving Lever	£11.62 £9.68
