S461R PD - 2009 - 294489043/UM9 - Mountfield Rotary Mower SV150 Engine Diagram

Description

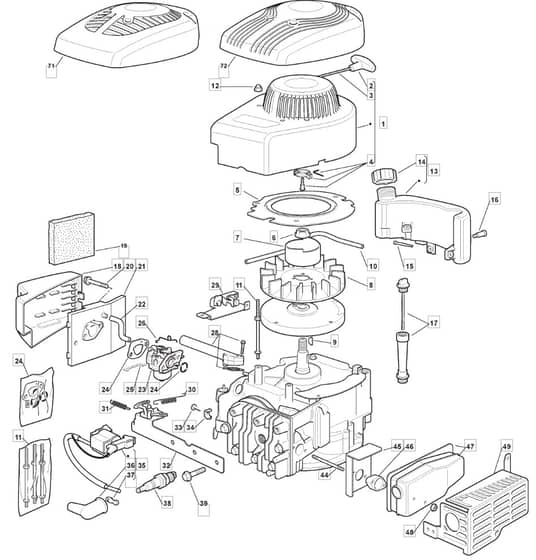

Mountfield S461R PD Parts Diagram

Product Name - S 461R PD

Model Year - 2009

Model Type - TD 484 TR

Art.N - 294489043/UM9

	Part No.	Details
2	MO118550768/0 Available to backorder	Starter Handle	£11.95 £9.96
3	MO118550053/0 In stock	Starter Cord	£2.29 £1.91
4	MO118550004/1 In stock	Starter Pawl Set	£5.34 £4.45
5	MO118550138/0 Available to backorder	Deflector	£4.24 £3.53
11	MO118550142/0 In stock	Outfit. Screws	£6.91 £5.76
12	MO118550007/0 Available to backorder	Nut	£1.97 £1.64
13	MO118550143/0 Available to backorder	Fuel Tank	£33.79 £28.16
14	MO118550001/0 In stock	Fuel Cap	£5.34 £4.45
16	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
17	MO118550008/0 Available to backorder	Oil Dipstick & Oil Fill Tube Assy	£5.68 £4.73
18	MO118550133/0 In stock	Air Cleaner Cover	£5.47 £4.56
19	MO118550011/0 In stock	Filter Element	£3.10 £2.58
23	MO118550148/0 In stock	Carburetor	£56.32 £46.93
26	MO118550149/0 Available to backorder	Choke Lever	£1.70 £1.42
28	MO118550129/0 Available to backorder	Intake Manifold	£10.14 £8.45
29	MO118550021/0 Available to backorder	Brake	£33.79 £28.16
30	MO118550151/0 In stock	Governor Spring	£1.60 £1.33
31	MO118550150/0 Available to backorder	Linking Spring	£1.55 £1.29
32	MO118550152/0 Available to backorder	Control Bracket	£10.56 £8.80
33	MO118550023/0 Available to backorder	Screw	£1.97 £1.64
35	MO118550126/0 In stock	Magneto Armature	£49.84 £41.53
36	MO118550127/0 Available to backorder	Spark Plug Elbow Cover	£5.52 £4.60
38	3011 In stock	Spark Plug (Qj19Lm)	£3.24 £2.70
