S461R HP - 2009 - 294486043/UM9 - Mountfield Rotary Mower Deck Diagram

Name: S461R HP - 2009 - 294486043/UM9 - Mountfield Rotary Mower Deck Diagram
SKU: s461r_hp_294486043_um9_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. s461r_hp_294486043_um9_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

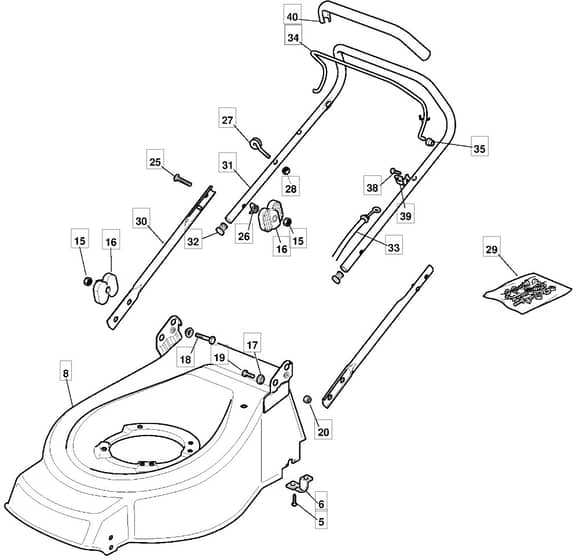

S461R HP - 2009 - 294486043/UM9 - Mountfield Rotary Mower Deck Diagram

Description

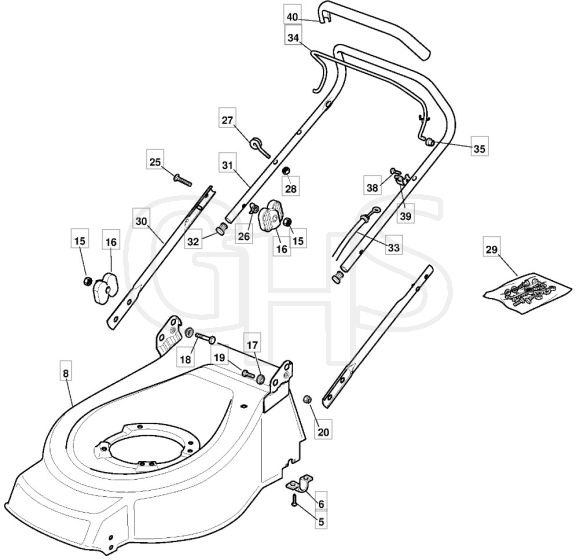

Mountfield S461R HP Parts Diagram

Product Name - S 461R HP

Model Year - 2009

Model Type - TD 484

Art.N - 294486043/UM9

	Part No.	Details
1	MO112731350/0 Available to backorder	Screw To 31-August-2004	£1.63 £1.36
6	MO322545154/0 Available to backorder	Plate	£1.55 £1.29
15	MO112293202/0 Available to backorder	Nut	£1.97 £1.64
16	MO122399803/0 Available to backorder	Knob	£1.70 £1.42
17	MO322041955/0 Available to backorder	Bushing	£1.63 £1.36
19	MO112792610/0 In stock	Screw	£1.55 £1.29
20	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO122680006/1 In stock	Washer	£1.84 £1.53
27	MO122430309/0 Available to backorder	Spring	£3.10 £2.58
28	MO112154330/0 In stock	Nut	£1.55 £1.29
32	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
33	MO181000611/0 In stock	Cable. Thread Engine Brake SV40 . RV 40 . V35 Engine	£13.87 £11.56
34	MO181003291/3 Available to backorder	Lever. Engine Brake From 01-9-2006	£14.93 £12.44
35	MO122041966/0 In stock	Bushing	£1.55 £1.29
38	MO112728518/0 Available to backorder	Screw	£1.55 £1.29
39	MO322806612/0 Available to backorder	Support	£3.07 £2.56
40	MO122291050/0 Available to backorder	Soft Hand Grip [Black]	£14.22 £11.85
