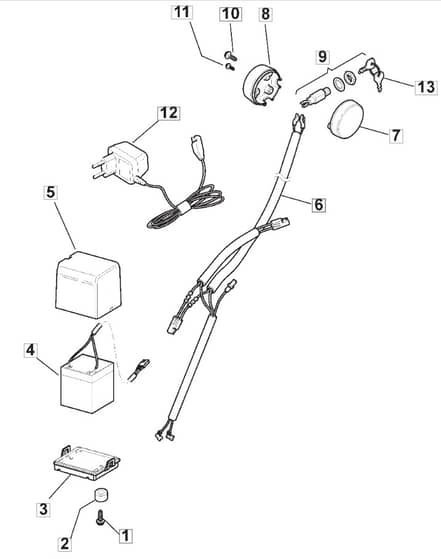

S461 PD ES - 2010-2014 - 299482643/M10 - Mountfield Rotary Mower Electric Start Diagram

Description

Mountfield S461 PD ES Parts Diagram

Product Name - S461 PD ES

Model Year - 2010-2014

Model Type - NTL 484 TR/E

Art.N - 299482643/M10

	Part No.	Details
1	MO112735105/0 Available to backorder	Screw To 31-8-2003	£1.55 £1.29
2	MO125160012/0 Available to backorder	Spacer	£15.76 £13.13
3	MO322785123/0 In stock	Battery Support	£4.93 £4.11
4	MO118120064/0 In stock	Battery	£46.48 £38.73
5	MO322109530/0 Available to backorder	Battery Cover	£4.93 £4.11
7	MO322722801/0 Available to backorder	Starting Block Outer Half-Bearing	£1.84 £1.53
8	MO322722800/0 Available to backorder	Starting Block Inner Half-Bearing	£10.50 £8.75
13	MO118210016/1 Available to backorder	Ignition Key [Pair]	£12.80 £10.67
