S461 PD - 2012-2014 - 295486043/M12 - Mountfield Rotary Mower Grass Bag Diagram

Name: S461 PD - 2012-2014 - 295486043/M12 - Mountfield Rotary Mower Grass Bag Diagram
SKU: s461_pd_295486043_m12_grass_bag-group
Price: 1.29 GBP
Availability: InStock

Part No. s461_pd_295486043_m12_grass_bag-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S461 PD - 2012-2014 - 295486043/M12 - Mountfield Rotary Mower Grass Bag Diagram

Description

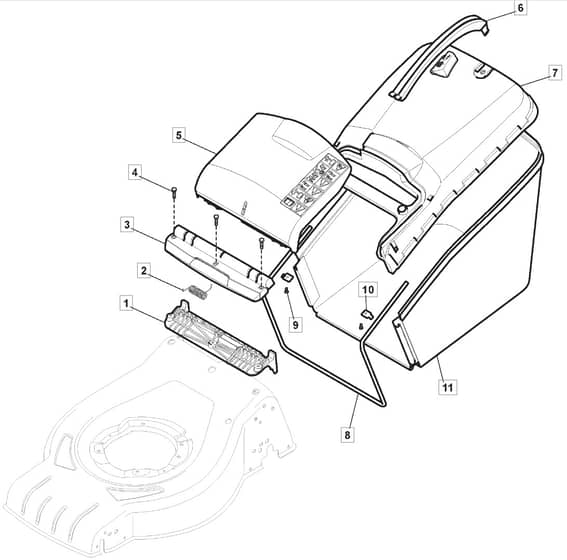

Mountfield S461 PD Parts Diagram

Product Name - S461PD

Model Year - 2012-2014

Model Type - CRL 484 WS

Art.N - 295486043/M12

	Part No.	Details
1	MO322785331/0 Available to backorder	Black Stone Guard Support	£6.64 £5.53
2	MO122450464/0 Available to backorder	Spring	£2.24 £1.87
3	MO322109557/0 Available to backorder	Stone Guard Supp. Cover Black Black	£24.78 £20.65
4	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
5	MO381008163/0 Available to backorder	Stone Guard. Black Black	£24.78 £20.65
6	MO322393644/0 Available to backorder	Grasscatcher Handle. Black Black	£5.47 £4.56
7	MO381486018/0 Available to backorder	Grass-Box. Upper Part Black Black	£33.79 £28.16
8	MO122608561/1 Available to backorder	Lower Stiffening	£11.54 £9.62
9	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
10	MO322545159/0 Available to backorder	Plate	£1.63 £1.36
11	MO181002318/0 Available to backorder	Box. Fabric Black without Logo	£36.59 £30.49
