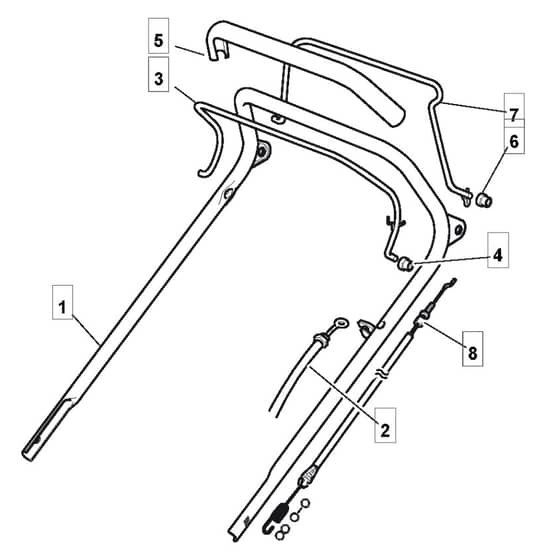

S461 PD - 2009 - 294485143/UM9 - Mountfield Rotary Mower Upper Handle Diagram

Name: S461 PD - 2009 - 294485143/UM9 - Mountfield Rotary Mower Upper Handle Diagram
SKU: s461_pd_294485143_um9_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S461 PD - 2009 - 294485143/UM9 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield S461 PD Parts Diagram

Product Name - S461PD

Model Year - 2009

Model Type - TD 484 TR

Art.N - 294485143/UM9

Be the first to review this product

0 product questions

	Part No.	Details
2	MO181000611/0 In stock	Cable. Thread Engine Brake SV40 . RV 40 . V35 Engine From 01-9-2005	£13.87 £11.56
3	MO181003291/3 Available to backorder	Lever. Engine Brake From 01-9-2006	£14.92 £12.43
4	MO122041966/0 In stock	Bushing	£1.55 £1.29
5	MO122291050/0 Available to backorder	Handgrip Black	£14.22 £11.85
6	MO322041965/1 Available to backorder	Bushing From 01-9-2004	£1.55 £1.29
7	MO181003288/1 Available to backorder	Driving Lever	£11.62 £9.68
8	MO381000668/1 In stock	Cable Rear Drive (General Transmission) From 01-9-2003	£20.96 £17.47
8	MO181000645/0 In stock	Cable Rear Drive (Bi. Ci. Di.) To 31-8-2003	£29.56 £24.63
8	MO381000672/0 In stock	Cable Rear Drive (Bi. Ci. Di.) From 01-9-2003	£18.83 £15.69
8	MO381001143/0 Available to backorder	Cable Rear Drive (France Reducteurs) To 31-8-2003	£30.97 £25.81
