S461 PD - 2008 - 294485143/UM8 - Mountfield Rotary Mower Deck Diagram

Name: S461 PD - 2008 - 294485143/UM8 - Mountfield Rotary Mower Deck Diagram
SKU: s461_pd_294485143_um8_deck-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S461 PD - 2008 - 294485143/UM8 - Mountfield Rotary Mower Deck Diagram

Description

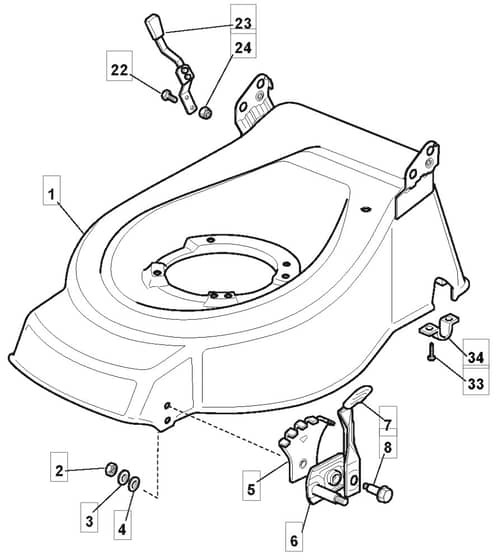

Mountfield S461 PD Parts Diagram

Product Name - S 461 PD

Model Year - 2008

Model Type - TD 484 TR

Art.N - 294485143/UM8

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112293200/0 In stock	Nut	£1.55 £1.29
3	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.26 £1.88
6	MO381005082/0 In stock	Wheel Support	£17.18 £14.32
7	MO481003285/1 In stock	Lever	£19.54 £16.28
8	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
22	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
23	MO381003279/2 Available to backorder	Adjustment Lever	£32.38 £26.98
24	MO112154330/0 In stock	Nut	£1.55 £1.29
33	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
34	MO322545152/0 In stock	Plate	£1.55 £1.29
