S460 HP - 2012 - 295485023/MFR - Mountfield Rotary Mower Height Adjusting Diagram

Name: S460 HP - 2012 - 295485023/MFR - Mountfield Rotary Mower Height Adjusting Diagram
SKU: s460_hp_295485023_mfr_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Part No. s460_hp_295485023_mfr_height_adjusting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S460 HP - 2012 - 295485023/MFR - Mountfield Rotary Mower Height Adjusting Diagram

Description

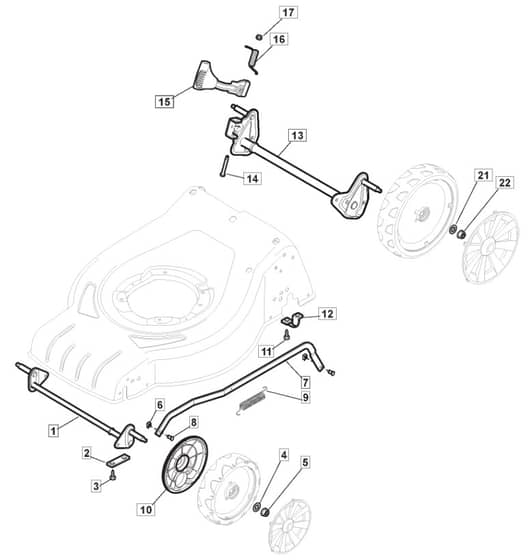

Mountfield S460 HP Parts Diagram

Product Name - S 460 HP

Model Year - 2012

Model Type - CRL 484 W

Art.N - 295485023/MFR

	Part No.	Details
1	MO381302821/0 Available to backorder	Front Wheel Axle To S.N 20BA2WBH054315	£27.04 £22.53
1	MO381302821/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH054316	£27.04 £22.53
2	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
6	MO112436050/0 In stock	Plate	£1.84 £1.53
7	MO322869673/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH070583	£15.62 £13.02
7	MO322869673/0 Available to backorder	Rod. Height Adjustment To S.N 20BA2WBH070094	£15.62 £13.02
8	MO122519820/0 Available to backorder	Pin	£2.22 £1.85
9	MO122446193/0 In stock	Spring	£4.78 £3.98
10	MO322600247/0 Available to backorder	Protection. Wheel As Optional	£4.50 £3.75
11	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
12	MO322545152/0 In stock	Plate	£1.55 £1.29
13	MO381302815/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH091975	£36.59 £30.49
13	MO381302815/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH091976	£40.82 £34.02
14	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
15	MO381003357/0 Available to backorder	Wheels Rear Adj. Lever for others brand models To S.N 20BA2WBH076280	£13.50 £11.25
15	MO381003457/0 Available to backorder	Wheels Rear Adj. Lever for STIGA brand models To S.N 20BA2WBH073718	£13.50 £11.25
16	MO122446192/0 Available to backorder	Spring	£2.22 £1.85
17	MO112154510/0 In stock	Nut	£1.55 £1.29
21	MO112521350/0 In stock	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Nut	£1.55 £1.29
