S460 HP - 2012 - 295485023/MFR - Mountfield Rotary Mower Deck Diagram

Description

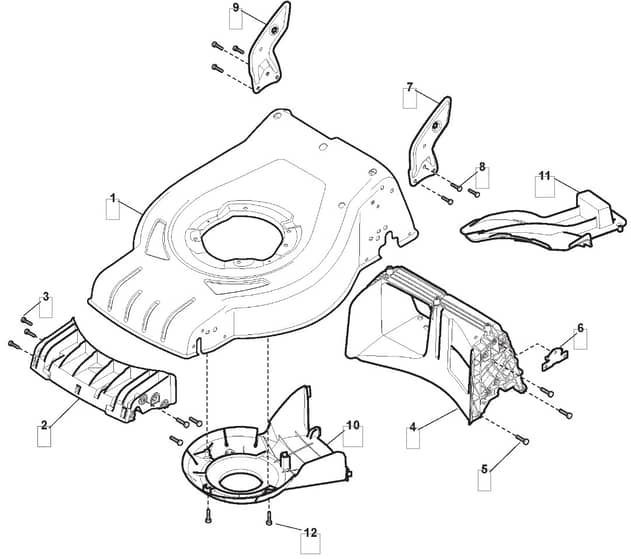

Mountfield S460 HP Parts Diagram

Product Name - S 460 HP

Model Year - 2012

Model Type - CRL 484 W

Art.N - 295485023/MFR

	Part No.	Details
1	MO381004933/0 Available to backorder	Red Deck	£131.60 £109.67
2	MO322108301/2 Available to backorder	Front Conveyor Assy	£14.86 £12.38
4	MO322108392/0 Available to backorder	Rear Conveyor Assy	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005139/0 Available to backorder	Left Bracket	£6.64 £5.53
8	MO112727801/0 Available to backorder	Screw	£1.63 £1.36
9	MO381005137/0 Available to backorder	Right Bracket	£6.32 £5.27
10	MO322060242/2 In stock	Belt Protection	£11.54 £9.62
11	MO322140239/1 In stock	Mulching Deflector	£11.41 £9.51
12	MO112728903/0 In stock	Screw	£1.39 £1.16
