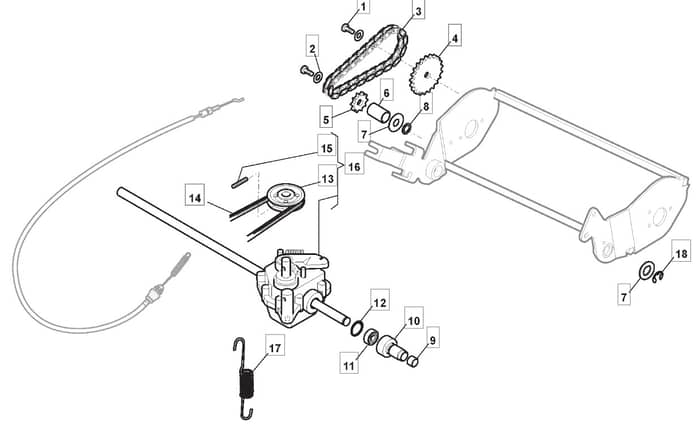

S42R PD Li - 2017-2020 - 299439003/M17 - Mountfield Rotary Mower Transmission Diagram

Name: S42R PD Li - 2017-2020 - 299439003/M17 - Mountfield Rotary Mower Transmission Diagram
SKU: s42r_pd_li_299439003_m17_transmission-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S42R PD Li - 2017-2020 - 299439003/M17 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield S42R PD Li Parts Diagram

Model Year - 2017-2020

Model Type - NTL 430 TR-R Li 80

Art.N - 299439003/M17

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112735662/1 In stock	Screw	£2.40 £2.00
2	MO112523040/0 In stock	Washer	£1.49 £1.24
3	MO1111-3562-01 In stock	Chain	£20.06 £16.72
4	MO1111-3424-01 Available to backorder	Ring Gear	£18.31 £15.26
5	MO1111-3423-01 Available to backorder	Ring Gear	£14.80 £12.33
6	MO122170970/0 Available to backorder	Spacer	£2.53 £2.11
7	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
8	MO321660100/0 Available to backorder	Washer	£1.97 £1.64
9	MO322038404/0 In stock	Brass	£1.55 £1.29
10	MO322785126/0 Available to backorder	Gear Box Support	£11.78 £9.82
11	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
12	MO112610095/0 Available to backorder	Snap Ring	£1.69 £1.41
13	MO122601909/0 In stock	Pulley	£5.64 £4.70
14	MO135063710/0 In stock	Belt	£8.48 £7.07
15	MO112645705/0 In stock	Elastic Pin ø5X32	£1.55 £1.29
16	MO181003077/1 In stock	Gear Box	£104.18 £86.82
17	MO125430220/0 Available to backorder	Brake Spring	£4.08 £3.40
18	MO112000957/0 Available to backorder	Circlip D.10	£1.55 £1.29
